Manufacturer: Siemens

Model Number: A5E37764770

Alternate / Related Part Number: A5E03965230A

Product Type: Controller

Rated Supply Voltage: 24 VDC

Permissible Voltage Range: 19.2 – 30 VDC

Power Consumption: ≤ 20 W

Rated Current Consumption: ≤ 0.85 A @ 24 VDC

Inrush Current: ≤ 3 A (approx. 10 ms)

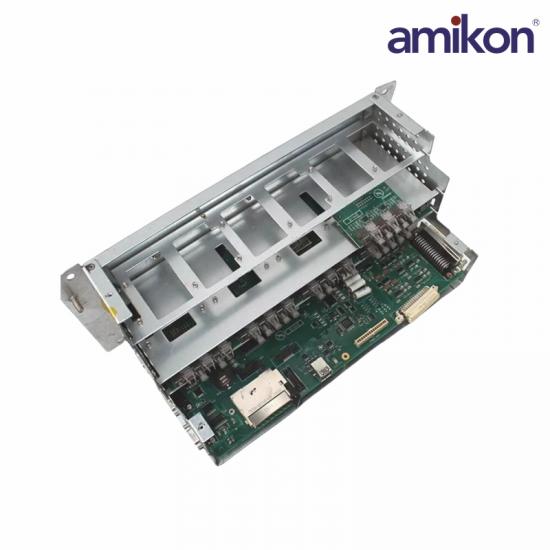

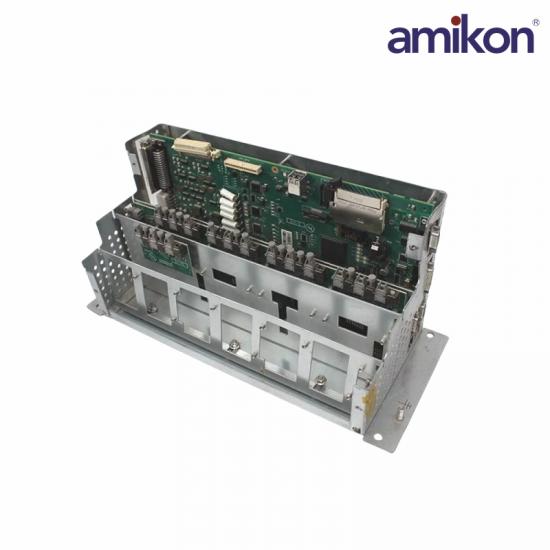

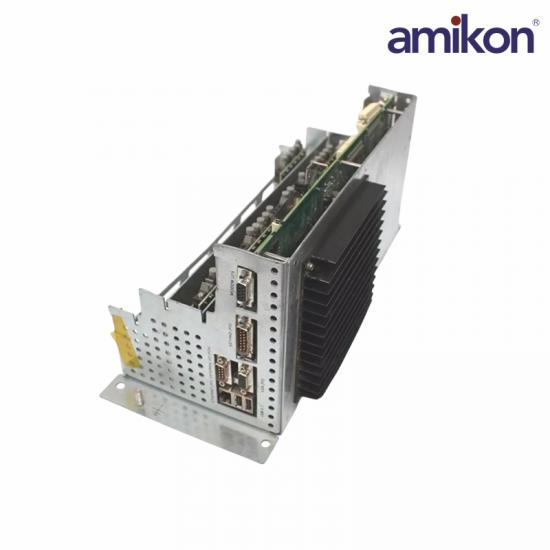

The Siemens A5E37764770 / A5E03965230A Controller is an industrial control module used in Siemens high-power drive and inverter systems, particularly within the NXGpro control platform for advanced motor drive and power conversion applications. The controller acts as the central processing unit of the drive control architecture, responsible for executing control algorithms, monitoring system parameters, and managing communication between power units, interface boards, and external systems.

Frequently asked questions：

1. What is the Siemens A5E37764770 controller used for?

It is used as the main control processor in Siemens NXGpro-based drive systems, handling real-time control, monitoring, and communication within high-power inverter or motor control systems.

2. Is A5E03965230A a replacement or related part number?

Yes. In many systems A5E03965230A is used as a related or compatible controller reference associated with the same NXGpro control platform.

3. What type of systems typically use this controller?

The controller is commonly used in medium- and high-power industrial drive systems, including compressors, pumps, conveyors, and large motor installations.

4. What power supply is required for the controller?

The module typically operates on 24 VDC, with an allowable voltage range of 19.2 to 30 VDC.

Siemens A5E03965230A

This number typically represents a specific PCB (Printed Circuit Board) or sub-assembly part of a larger Siemens power module or inverter.

Function: While A5E37764770 is the primary controller, A5E03965230A is often the internal board number found within similar high-overload power modules or inverters (e.g., Sinamics or older Masterdrives).

Relation: In many cases, A5E03965230A is the assembly number printed directly on the circuit board, whereas A5E37764770 serves as the complete unit's order or catalog number.
