Brand/Manufature:
VIBRO-METERProduct Origin:
SwitzerlandLead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooModel: 204-900-000-011
Product Type: Signal Conditioner
Input Type: Compatible with eddy-current proximity probes
Input Impedance: High input impedance, typically greater than 1 MΩ
Output Signal: ±10 V analog voltage output (adjustable)
Frequency Response: 0 Hz to 5 kHz (typical range)
Gain Range: Adjustable from 1 to 20
Offset Adjustment Range: ±10 V (adjustable)
Power Supply: 24 V DC ±10%
Power Consumption: Approximately 100 mA
Operating Temperature Range: -20 °C to +70 °C
Storage Temperature Range: -40 °C to +85 °C

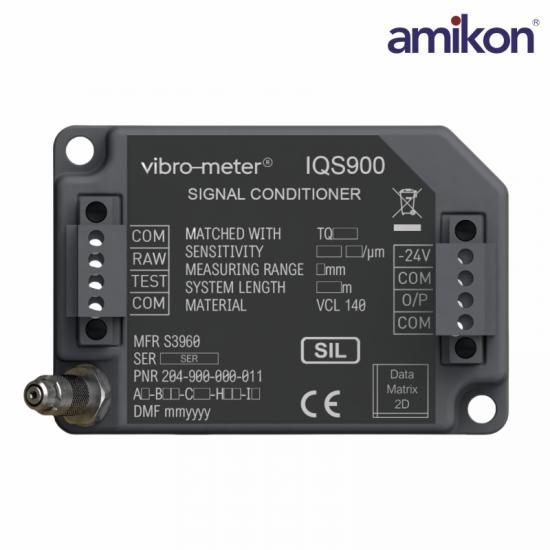

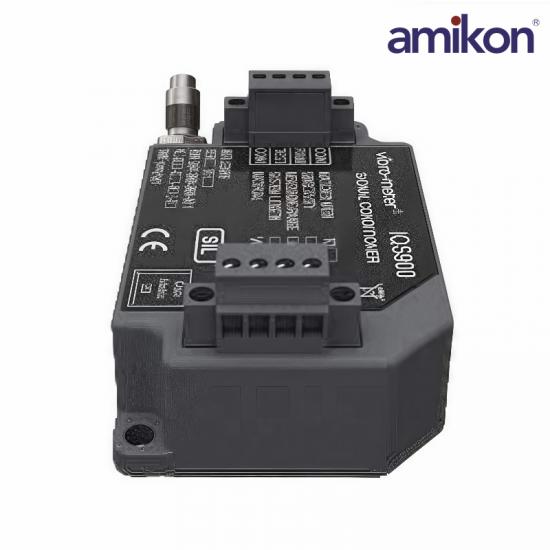

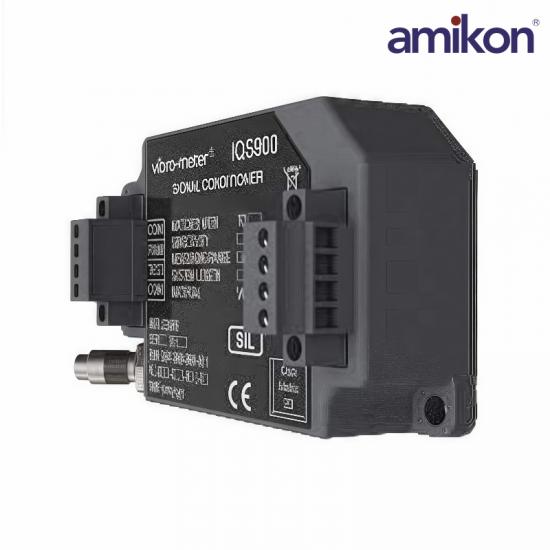

The IQS900 signal conditioner contains a high-frequency modulator/demodulator that supplies a driving signal to a TQ9xx sensor. This generates an electromagnetic field in the tip of the sensor, which generates eddy-currents in the metallic target. When the target moves, the eddy-currents change, which causes a change in the electrical characteristics of the TQ9xx that the signal conditioner converts into a signal that is proportional to the distance to the target.
The IQS900’s output is an analogue signal consisting of a dynamic component (AC) that corresponds to the measured vibration (displacement) and a quasi-static component (DC) that corresponds to the measured gap. The output can be configured as a current or a voltage signal, suitable for transmission to a monitoring system via current (2-wire) or voltage (3-wire) transmission cables, respectively.
For an IQS900 signal conditioner with optional diagnostics, the quasi-static DC component also functions as a diagnostic indicator. That is, the IQS900’s diagnostic circuitry continuously checks the integrity of the measurement chain and will drive the measurement/diagnostic component (DC) outside of its normal operating range to indicate a problem with the sensor, the cabling and/or the signal conditioner itself.
For test purposes, the IQS900 includes a “raw” voltage output signal and a test input signal that allow the measurement chain/system operation to be tested in situ, thereby simplifying commissioning and troubleshooting.
