Model:MPC4

Ordering information:200-510-078-115

Operating Frequency Range:30 kHz

Power Supply Voltage:220 V

Output Current Capacity:15 A

Communication Interface:RS-485

Relay Contacts:2 Form C

Environmental Resistance:IP65

Material Code:TB810

Module Weight:0.5 kg

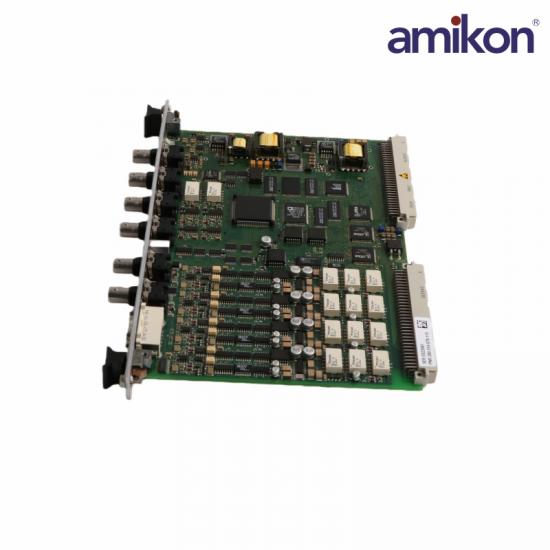

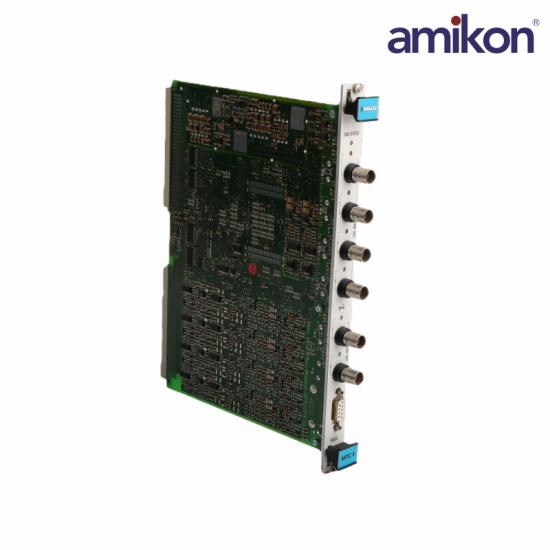

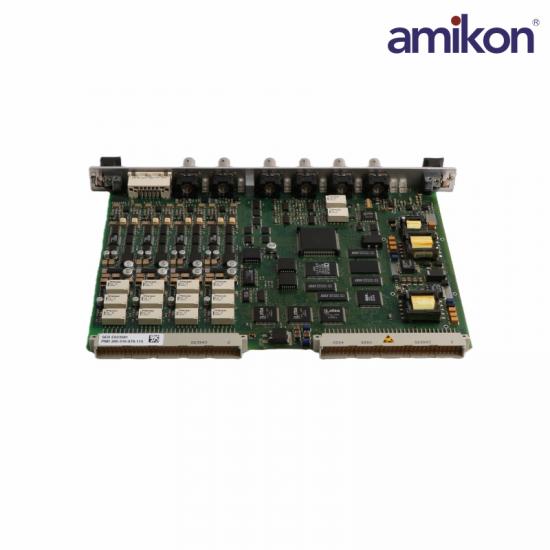

The MPC4 machinery protection card is the central element in the machinery protection system (MPS). This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.

The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others. On-board multichannel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure.

Digital processing includes digital filtering, integration or differentiation (if required), rectification (RMS, mean value, true peak or true peak-to-peak), order tracking (amplitude and phase) and measurement of the sensor-target gap.

Frequently asked questions：

Q1: What is the MPC4 200‑510‑078‑115 card used for?

A: It monitors vibration and shaft movement to protect rotating machinery.

Q2: How many inputs does the MPC4 200‑510‑078‑115 support?

A: Up to 4 dynamic signal inputs and 2 speed (tachometer) inputs.

Q3: What outputs does the MPC4 200‑510‑078‑115 provide?

A: It offers analog 0–10 V / 4–20 mA outputs and relay alarms.

Q4: Can alarm levels be configured on the MPC4 200‑510‑078‑115?

A: Yes, alert and danger thresholds are programmable.

Q5: Does the MPC4 200‑510‑078‑115 detect sensor failures?

A: Yes, it includes self-diagnostics for signal integrity.
