Model/Part Number: MPC4 200-510-SSS-1Hh

DC range: 0 to +20 V or 0 to –20 V

AC dynamic input range: ±10 V max

Common mode range: –50 V to +50 V

Input impedance: ~200 kΩ

CMRR: > 60 dB at 50 Hz

Analog bandwidth: 0.1 Hz to 10 kHz

With digital processing: DC to ~60 kHz

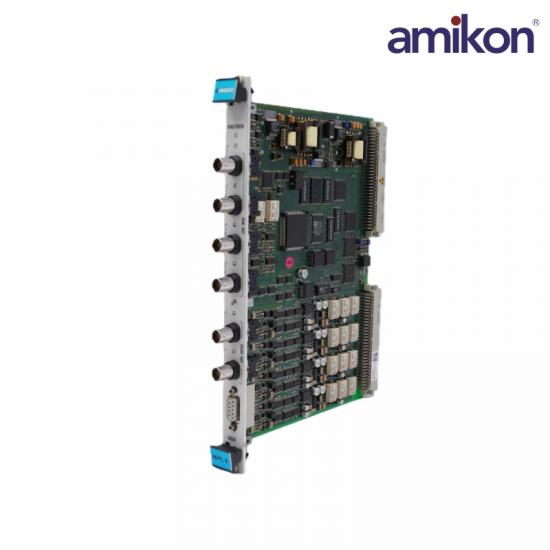

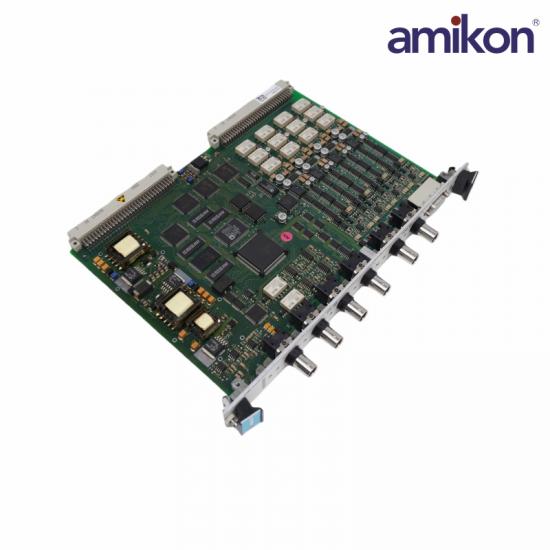

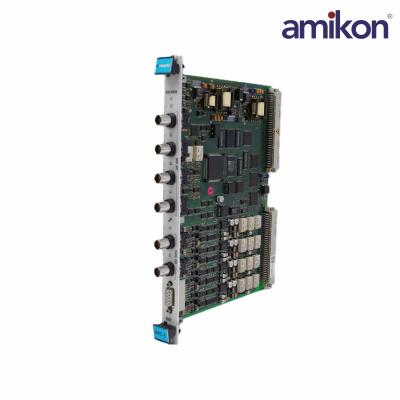

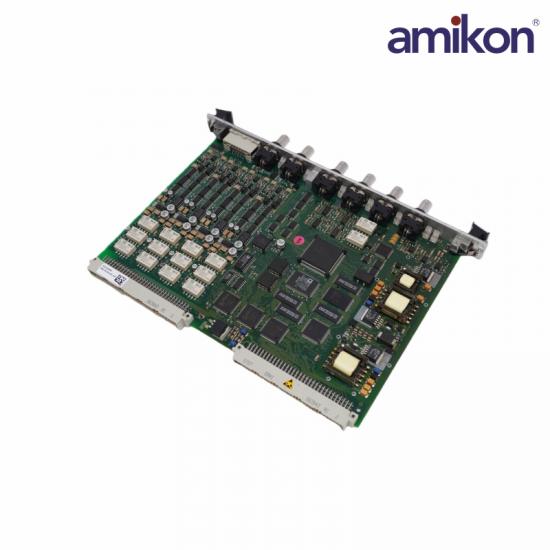

The MPC4 machinery protection card is the central element in the VM600 series machinery protection system (MPS), from Meggitt Sensing Systems’ Vibro-Meter® product line. This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.

The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others. On-board multi-channel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure.

Frequently asked questions：

Q1: What is the MPC4 200‑510‑SSS‑1Hh card used for?

A: It monitors vibration and speed signals to protect rotating machinery.

Q2: How many sensor inputs does the MPC4 200-510-SSS-1Hh  support?

A: Up to 4 dynamic signal inputs and 2 speed (tachometer) inputs.

Q3: What outputs does the MPC4 200-510-SSS-1Hh provide?

A: It provides analog and relay alarm outputs.

Q4: Can alarm levels be configured?

A: Yes, alert and danger thresholds are programmable.
