Question 1: What are the key features of the Yokogawa AAI543-S50s1 Analog Output Module?

Typically features 4 to 8 channels of analog output, each capable of providing a range of voltage or current signals.

The AAI543-S50S1 can output signals in different formats, such as 4-20mA or 0-10V, which are commonly used in process control systems.

 Designed for high-precision output, providing reliable and stable analog signals for controlling industrial processes.

Compatibility: Fully compatible with Yokogawa’s CENTUM and other control systems, ensuring seamless integration into existing systems.

Question 2: What are common issues with the Yokogawa AAI543-S50S1 Analog Output Module?

Signal Drift: Over time, the output signal may drift, especially if there are power supply issues or if the module’s components begin to wear. Regular calibration may be needed.

Faulty Wiring: Incorrect or loose wiring can lead to inaccurate or no output signals. Always ensure that wiring connections are properly tightened and meet the required specifications.

Overload or Short Circuit: If the connected device is drawing more current than the module is rated for, or if a short circuit occurs, the module may fail.

Question 3: How do I calibrate the Yokogawa AAI543-S50S1 Analog Output Module?

Verify Calibration Equipment: Use a precision multimeter or a similar calibrated instrument to check the accuracy of the module’s output signals.

Access Calibration Settings: If using a Yokogawa controller or HMI, navigate to the module’s calibration settings via the system software.

Adjust Output Signal: Compare the module’s output signal (e.g., 4-20mA or 0-10V) against the reference signal from your calibration instrument.

Product Type:Analog Output Module

Model Number:AAI543-S50s1

Number of Channels:16

Output Configuration:Isolated

Output Signal:4 to 20 mA

Switch-over Response:Standard or Fast in Redundant Configuration

Withstanding Voltage:Between Output and System: 1500 V AC, for 1 minute

Maximum Current Consumption:230 mA (5 V DC), 540 mA (24 V DC)

External Communication:Pressure Clamp Terminal, MIL Connector Cable, Dedicated Cable

Weight:0.4 kg

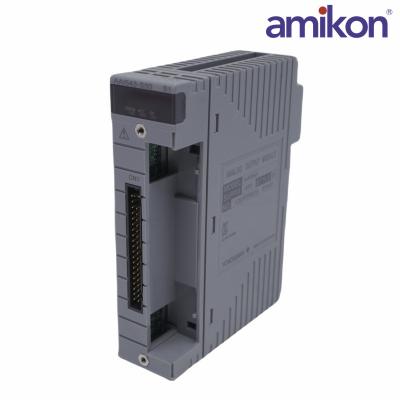

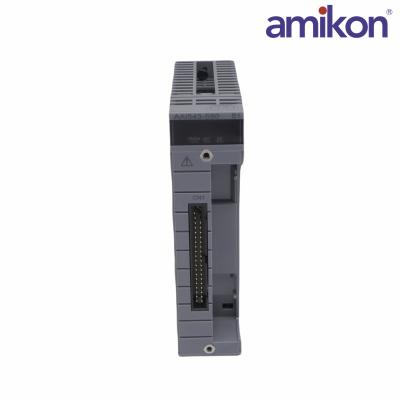

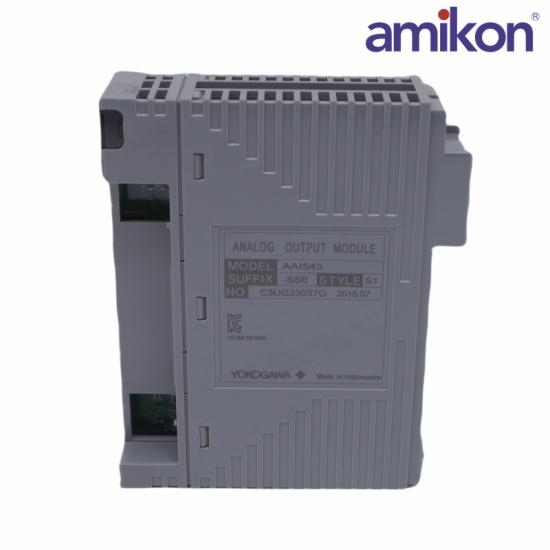

Integrating cutting-edge technology, the Yokogawa AAI543-S50s1 Analog Output Module ensures reliable and accurate control in a variety of industrial settings. Its high-resolution outputs enable precise adjustments, enhancing operational efficiency.

The  AAI543-S50s1 module’s robust design and isolation feature protect against electrical interference, guaranteeing consistent performance under challenging conditions. Ideal for applications requiring high reliability and precision, it supports both standard and fast switch-over responses in redundant configurations.

Crafted with durable materials, this AAI543-S50s1 module withstands harsh environments while maintaining its operational integrity. The inclusion of external communication options such as pressure clamp terminals, MIL connectors, and dedicated cables ensures compatibility with a wide range of systems.

Engineered for ease of integration, the Yokogawa AAI543-S50 S1 is compatible with various industrial control systems, simplifying installation and maintenance processes.
