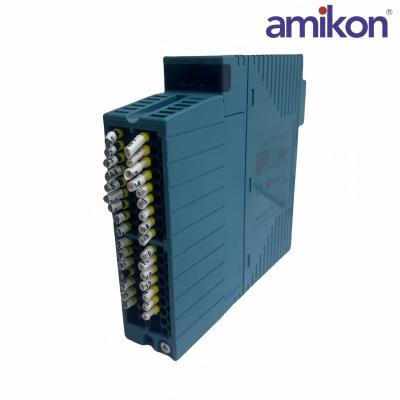

Question 1: What is the purpose of the Yokogawa NFAI543-S01 Analog Output Module?

The Yokogawa NFAI543-S01 is an analog output module used in industrial control systems. It converts the digital control signals from the control system into analog outputs such as voltage or current signals. These analog signals are then used to control or adjust external devices like actuators, valves, or other field equipment in processes like temperature control, pressure regulation, or flow management. The NFAI543-S01 module allows precise control of these devices, which is critical in continuous process industries.

Question 2: What are common issues with the Yokogawa NFAI543-S01 Analog Output Module?

Incorrect Signal Output: The module may produce incorrect or unstable output if the wiring is incorrect or if there is an issue with signal configuration (e.g., wrong scaling for the 4-20mA or 0-10V output).

Overload or Short Circuit: If the connected load exceeds the module’s specified limits, it can cause the output to fail or the module to be damaged. Always check the current or voltage requirements of the connected device.

Electrical Noise: Electrical noise or interference can cause unstable or inaccurate output signals. Proper grounding and shielding of the module and wiring can help mitigate this issue.

Power Supply Issues: Insufficient or unstable power supply can affect the module’s performance, leading to inaccurate or lost output signals.

The NFAI543-S01 module is responsible for converting digital control signals from the system into corresponding analog outputs, which can be used to control field devices such as actuators, valves, and other equipment requiring analog input for control or monitoring.

Analog Output: The NFAI543-S01 provides output signals in various analog formats (e.g., 4-20 mA, 0-10 V), allowing precise control of field devices.

NFAI543-S01  Provides galvanic isolation between output channels and the control system, reducing the risk of electrical interference or faults.

NFAI543-S01 Works seamlessly with Yokogawa's CENTUM and other DCS systems, ensuring smooth integration into existing control architectures.

Output Type: 4-20 mA, 0-10 V, or other common industrial analog output standards.

Output Resolution: Typically 12 to 16-bit resolution, allowing for precise analog signal generation.

NFAI543-S01 High accuracy, typically ±0.1% FS (Full Scale) or better, depending on the configuration.

Power Supply: Powered by the control system, often from a 24 V DC supply or directly from the DCS or PLC.

NFAI543-S01 Operates in a wide temperature range, generally between -10°C to +60°C for industrial environments.
