Yokogawa · CENTUM FIO

ADV151-P00 S2 ATD5A-00

Price and Availability Inquiry

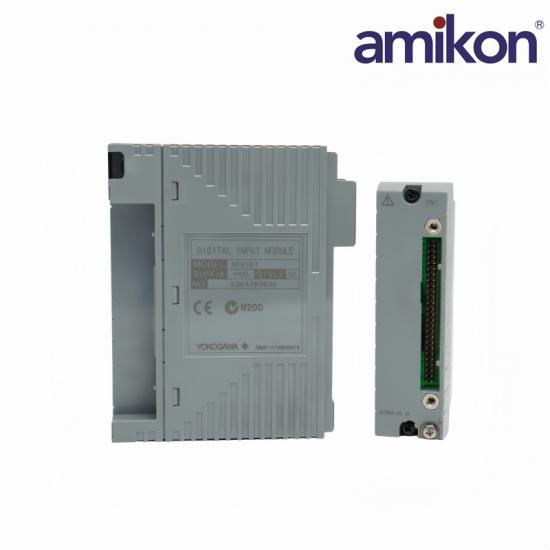

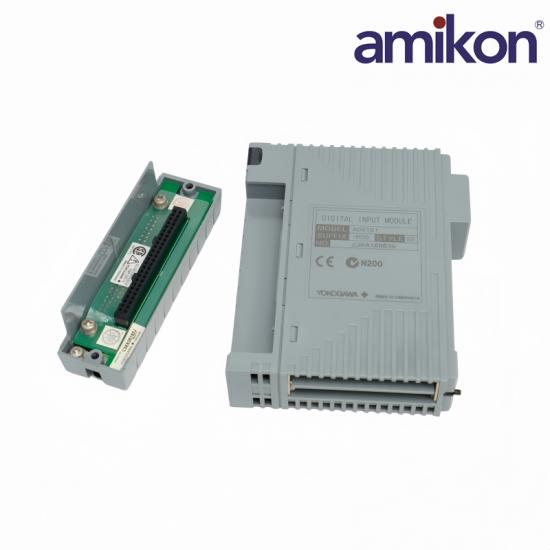

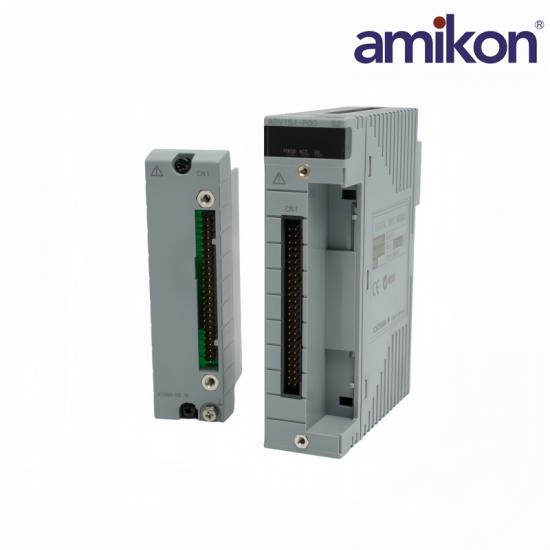

The Yokogawa ADV151-P00 S2 ATD5A-00 assembly pairs a 32-channel, 24 V DC ADV151 pushbutton-capable digital input module with an ATD5A-00 KS-cable interface adapter.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model ADV151-P00 S2 ATD5A-00 and required quantity in your inquiry.

Yokogawa ADV151-P00 S2 ATD5A-00

Technical Specifications

ADV151 and ATD5A-00 data from GS33J60F70-01EN and GS33K50F70-50E.

01Product IdentityModule and adapter assembly

ManufacturerYokogawa

Requested assemblyADV151-P00 S2 ATD5A-00

Input moduleADV151-P00 S2

Interface adapterATD5A-00

02DC Input DataOfficial ADV151 family ratings

Input channels32

Rated input24 V DC, sink / source

Input ON range18–26.4 V DC

Input OFF voltage≤5 V DC

03Timing & SupplyPublished module limits

Input current4.1 mA ±20% per channel

Maximum allowable input30 V DC

Status response time≤8 ms

Module current≤500 mA at 5 V DC

04Adapter & GroupingPublished connection data

Adapter channel count32

Adapter option/D5A00 — KS cable interface

Common grouping16 channels per common

Pushbutton timing≥20 ms ON; ≤25 Hz

Yokogawa ADV151-P00 S2 ATD5A-00 Product Support

Frequently Asked Questions

Compatibility, configuration, installation and ordering guidance for ADV151-P00 S2 ATD5A-00.

What does the complete paired identity include?

It includes the ADV151-P00 Style S2 input module and the ATD5A-00 interface adapter. An order for the module alone is not the same requested assembly.

What does ATD5A-00 do?

It is the 32-channel KS-cable interface adapter identified by the /D5A00 option. It changes the field connection arrangement, not the input module into an output module.

How should sink/source wiring be grouped?

ADV151 supports 24 V DC sink/source inputs, with a common every 16 channels. Inputs within a common must use the same polarity.

Is P pushbutton input equivalent to E sequence-of-events input?

No. P denotes pushbutton-input capability. Do not treat it as the E/SOE variant or assume event time-stamping features.

Can the assembled cable path be described as 2 kV isolated?

Not without the exact connection specification. The module is rated at 2 kV AC signal/system withstand, while the documented dedicated-cable configuration is 500 V AC for that path.

How should the adapter assembly be commissioned?

Verify module-to-adapter seating, KS-cable pin mapping, common polarity and channel assignment, then test all 32 inputs at the published ON/OFF levels.

Which details prevent an incomplete replacement order?

Provide ADV151-P00 S2 ATD5A-00 in full, photos of both labels, the KS cable and termination arrangement, node identification and quantity. No legacy P00 approval is inferred.
