Yokogawa · CENTUM FIO

ADV151-P60 S2

Price and Availability Inquiry

Yokogawa ADV151-P60 S2 is a 32-channel, 24 V DC sink/source input module with pushbutton-input capability and the documented status-display, non-explosion-protected configuration.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model ADV151-P60 S2 and required quantity in your inquiry.

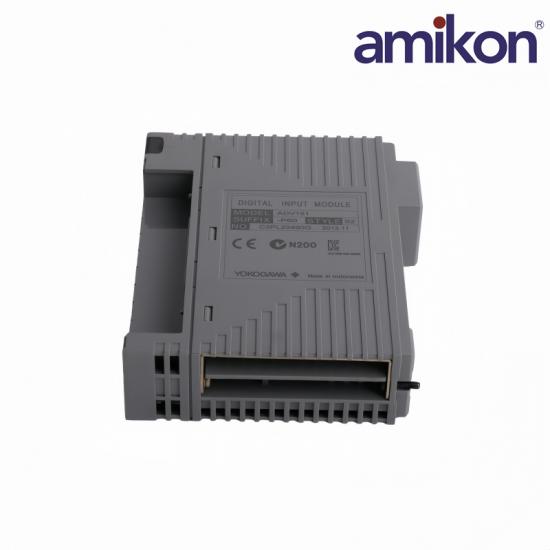

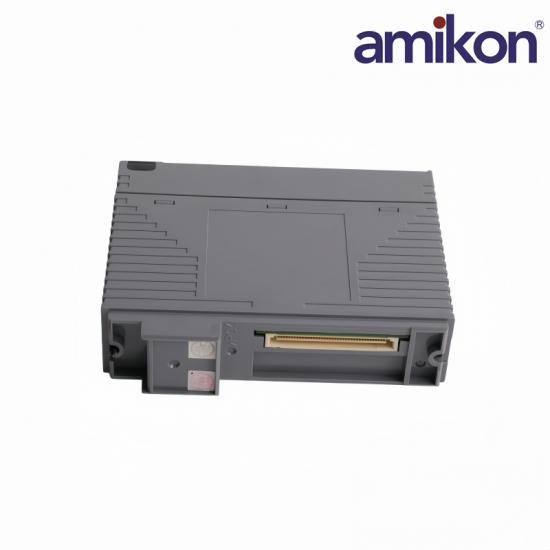

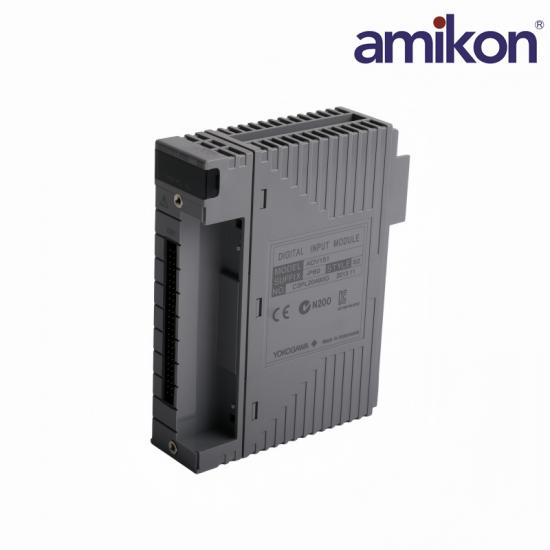

Yokogawa ADV151-P60 S2

Technical Specifications

Official GS33J60F70-01EN input, timing and P60 ordering specifications.

01Product IdentitySubmitted P60 configuration

ManufacturerYokogawa

Part numberADV151-P60 S2

Product typeDC digital input module

System familyCENTUM FIO

02DC Input DataPublished channel ratings

Input channels32

Rated input24 V DC, sink / source

Input ON range18–26.4 V DC

Input OFF voltage≤5 V DC

03Timing & PowerPublished operating limits

Input current4.1 mA ±20% per channel

Status response time≤8 ms

Pushbutton timing≥20 ms ON; ≤25 Hz

Module current≤500 mA at 5 V DC

04Configuration DataOfficial P60 options

Maximum allowable input30 V DC

Common grouping16 channels per common

Type code 6Status display; no explosion protection

Suffix code 0Basic type

Yokogawa ADV151-P60 S2 Product Support

Frequently Asked Questions

Compatibility, configuration, installation and ordering guidance for ADV151-P60 S2.

Which field signal is ADV151-P60 S2 designed for?

It is designed for 32 channels of 24 V DC sink/source digital input. It is not the 100–120 V AC ADV141 input family.

What does the P60 ordering suffix specify?

P identifies pushbutton-input capability; 6 specifies status display without explosion protection, and 0 specifies the basic type in the cited ordering table.

Which terminal arrangements can be used?

The ADV151 specification lists AKB331 dedicated cable, pressure-clamp terminals and MIL-cable arrangements. Select the matching installed assembly; an ATD5A adapter is not automatically included.

How is polarity managed across the inputs?

There is one common for each group of 16 channels. Keep the same input polarity within each group and follow the terminal drawing for the selected sink/source arrangement.

What limits apply to short pushbutton pulses?

The minimum ON time is 20 ms and the maximum cycle rate is 25 Hz; the status response specification is 8 ms or less.

What should be checked after a module replacement?

Restore channel configuration, confirm common polarity and wiring, then compare the status display with the actual ON/OFF state of each field input.

Can a different ADV151 suffix be ordered as identical?

Do not assume equivalence. Provide ADV151-P60 S2 exactly, along with the node, termination assembly, installed label and quantity so function and style can be matched.
