Yokogawa ET5-C Style C Thermocouple Input Signal Conditioner Card

ET5-C
ET5-C
ET5-C

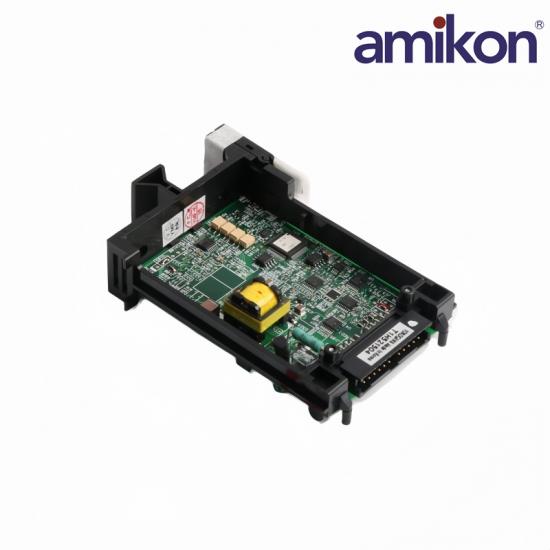

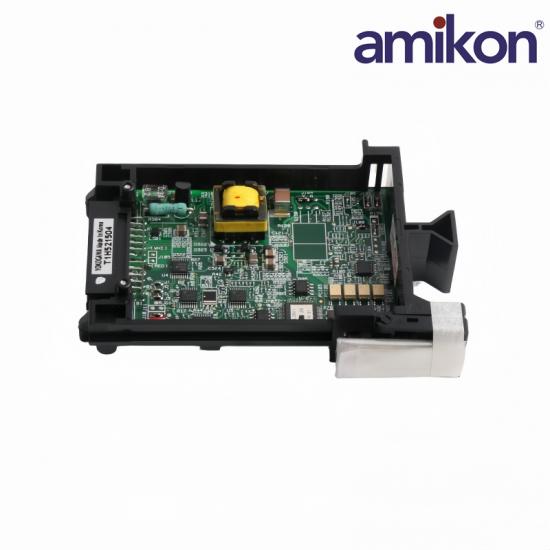

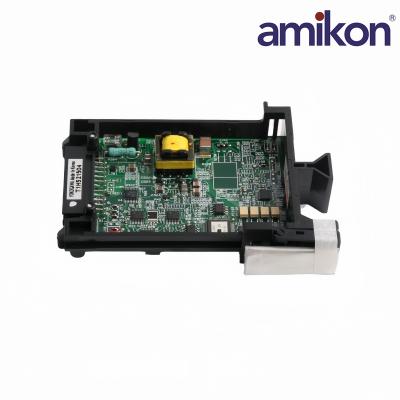

Yokogawa ET5-C Style C Thermocouple Input Signal Conditioner Card

✉  INQUIRE NOW

YOKOGAWA · CENTUM SIGNAL CONDITIONER

ET5-C

Thermocouple Input Signal Conditioner Card

MANUFACTURERYokogawa
MODELET5-C
PART NUMBERET5-C
PRODUCT TYPEThermocouple Input Signal Conditioner Card
SYSTEM FAMILYCENTUM Signal Conditioner
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    ET5-C

  • Order(MOQ):

    1

  • Product Origin:

    JAPAN

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Yokogawa

  • Product Origin:

    JAPAN

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    COO
Inquire Now

Yokogawa · CENTUM Signal Conditioner

ET5-C

Price and Availability Inquiry

Yokogawa ET5-C is the requested Style C thermocouple signal conditioner, identified in the official ordering table as ET5*C. It converts a configured thermocouple input into two 1 to 5 V DC output signals for installation in a dedicated signal conditioner nest.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model ET5-C and required quantity in your inquiry.

Yokogawa ET5-C

Technical Specifications

Official ET5 Style C input, output, supply and environmental data; match the ET5*C marking and configured range.

01Product IdentityOfficial ET5 Style C data
ManufacturerYokogawa
Requested ModelET5-C
Official DesignationET5*C — Style C
Product TypeThermocouple input card
02Input & OutputGS 33J60H80-01EN
Thermocouple TypesK, T, J, E, B, R, S, N
Output Signals1 to 5 V DC; 2 outputs
Input Resistance1 MΩ; 10 kΩ with power off
Output Load Resistance2 kΩ minimum
03Power & EnvironmentPublished card ratings
Power Supply24 V DC ±10%
Maximum Consumption60 mA at 24 V DC
Ambient Temperature0 to 50 °C
Relative Humidity5 to 90% RH; non-condensing
04Dimensions & PerformanceOfficial ET5 card specifications
Dimensions (W × H × D)73 × 24 × 115 mm
Weight0.10 kg or less
Rated AccuracyLarger of ±0.1% of span and ±20 µV input-equivalent
Temperature DriftMaximum ±0.2% of span per 10 °C

Yokogawa ET5-C Product Support

Frequently Asked Questions

Compatibility, configuration, installation and ordering guidance for ET5-C.

01

How is ET5-C identified in the official table?

Yokogawa lists the thermocouple card as ET5 with Style C, written ET5*C. Confirm that marking on the supplied unit; ET5-C is retained as the requested catalog identity.

02

Which temperature sensors does the ET5 card accept?

The official table lists thermocouple types K, T, J, E, B, R, S and N. Check the configured thermocouple type and measurement range before connecting the field sensor.

03

What output and load are specified?

The card provides two 1 to 5 V DC outputs. Each output requires a load resistance of at least 2 kΩ; maximum output resistance is 1 Ω.

04

Is this a direct rack I/O module?

It is a signal conditioner card for a dedicated nest, connected through the nest backboard and connector. Match the nest and downstream I/O connection; do not treat it as a general-purpose PLC input module.

05

Can its range and burnout setting be changed?

Range and burnout settings can be configured through a compatible BRAIN terminal connection. Record the existing configuration; Fahrenheit indication requires the official /DF option.

06

What power and ambient conditions apply?

The card rating is 24 V DC ±10%, with maximum consumption of 60 mA. Operate within 0 to 50 °C and 5 to 90% RH without condensation.

07

What should an ET5-C inquiry include?

Provide quantity, clear ET5*C label photos, thermocouple type, required range, existing nest model and any /BU, /BD or /DF option marking. The unified catalog image is a placeholder, not a photograph of the actual unit.
