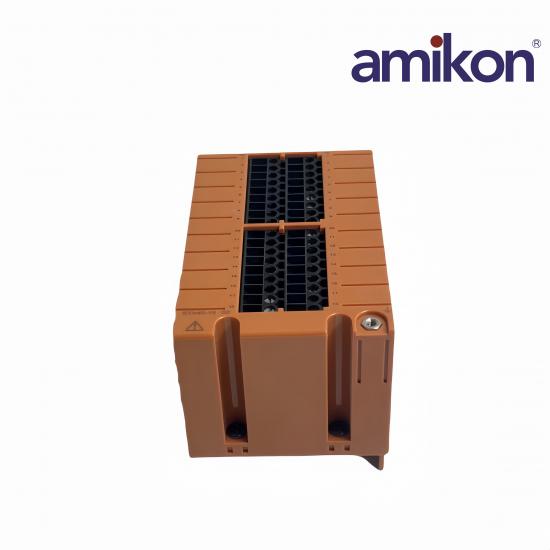

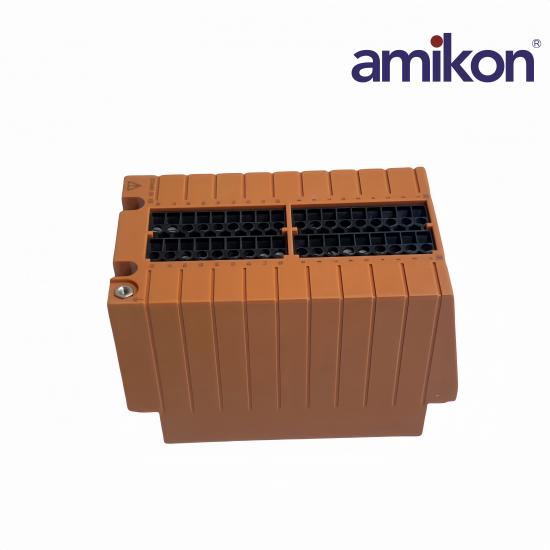

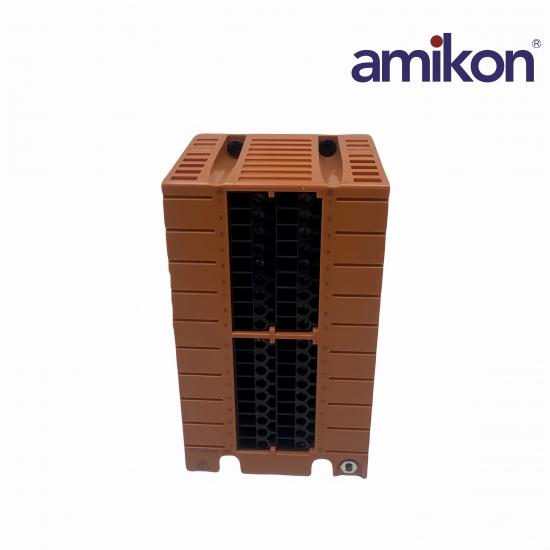

Manufacturer: Yokogawa

Product Type: Terminal Module

Product Number:STA4D-10 S2

M4 crimping terminals: 0.5 mm2 to 2 mm2 (AWG20 to 14)

Pressure clamp terminals (without sleeve) : 0.5 mm2 to 2 mm2 (AWG20 to 14)

Pressure clamp terminals (with sleeve) : 0.5 mm2 to 1.5 mm2 (AWG20 to 16)

Cable thickness (without sleeve): 0.5mm2 to 2mm2 (AWG20 to 14)

Peel-off length (without sleeve): 11 mm

Peel-off length(using a sleeve with insulating cover): 12mm

Peel-off length(using a sleeve without insulating cover): 10mm

Input Voltage: 24V DC (nominal)

Input Types: Digital input, analog input, pulse input

Output Types: Digital output, analog output, pulse output

Communication Protocols: Modbus RTU, Modbus TCP, Ethernet/IP

Maximum I/O Points: Can support up to 128 input/output points (varies based on configuration)

Operating Temperature Range: -10°C to +60°C

Storage Temperature Range: -20°C to +70°C

Humidity Range: 5% to 95% (non-condensing)

Vibration Resistance: 5g at 20-500Hz

Dimensions: 160 mm x 120 mm x 55 mm (varies depending on configuration)

Weight: 0.6 kg

The Yokogawa STA4D-10 S2 Terminal Module is a high-performance interface component designed to seamlessly integrate with Yokogawa's advanced automation systems. This terminal module provides a reliable connection between various field devices (such as sensors, actuators, and control systems) and the central control system. It is a key component in automation networks, offering exceptional signal processing capabilities and communication functions. This module is designed for flexibility and ease of use, enabling quick and efficient signal conversions and providing reliable data transfer. It supports a wide range of industrial communication protocols, making it versatile for various automation applications. Whether used in manufacturing, energy management, or environmental monitoring, the STA4D-10 S2 Terminal Module ensures robust communication and precise control in industrial operations. High Flexibility: Offers flexible input and output options, supporting various field devices and communication protocols. Seamless Integration: Easily integrates with Yokogawa’s other automation products and third-party devices. Compact Design: The module’s compact design allows for easy installation in space-constrained environments. Signal Conversion: Capable of handling digital, analog, and pulse signals, allowing for smooth integration of different types of field devices. Communication Protocol Support: Compatible with multiple communication protocols, including Modbus RTU, Modbus TCP, and Ethernet/IP, providing interoperability with a wide range of systems.
