Weight: 300 g

Manufacturer: Yokogawa

Product Type: Terminal Module

Product Number: STA4S-00 S1

M4 crimping terminals: 0.5 mm2 to 2 mm2 (AWG20 to 14)

Pressure clamp terminals (without sleeve) : 0.5 mm2 to 2 mm2 (AWG20 to 14)

Pressure clamp terminals (with sleeve) : 0.5 mm2 to 1.5 mm2 (AWG20 to 16)

Cable thickness (without sleeve): 0.5mm2 to 2mm2 (AWG20 to 14)

Peel-off length (without sleeve): 11 mm

Peel-off length(using a sleeve with insulating cover): 12mm

Peel-off length(using a sleeve without insulating cover): 10mm

Input Voltage: 24V DC (nominal)

Input Types: Digital inputs, analog inputs, pulse inputs

Output Types: Digital outputs, analog outputs, pulse outputs

Communication Protocols: Modbus RTU, Modbus TCP, Ethernet/IP

Maximum I/O Points: Up to 128 I/O points (depends on configuration)

Operating Temperature Range: -10°C to +60°C

Storage Temperature Range: -20°C to +70°C

Humidity Range: 5% to 95% (non-condensing)

Vibration Resistance: 5g at 20–500Hz

Dimensions: 160 mm x 120 mm x 55 mm (varies based on configuration)

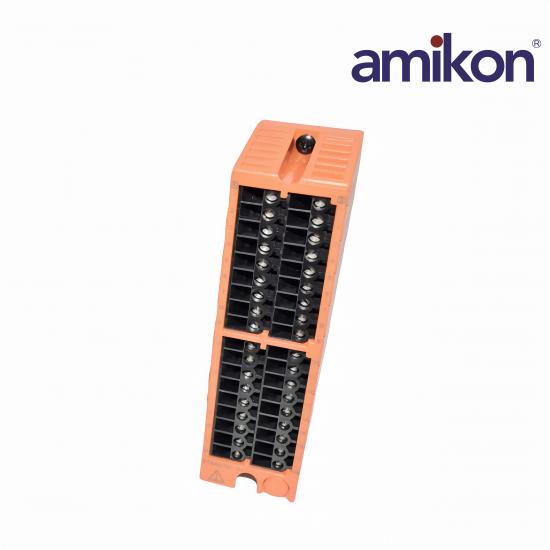

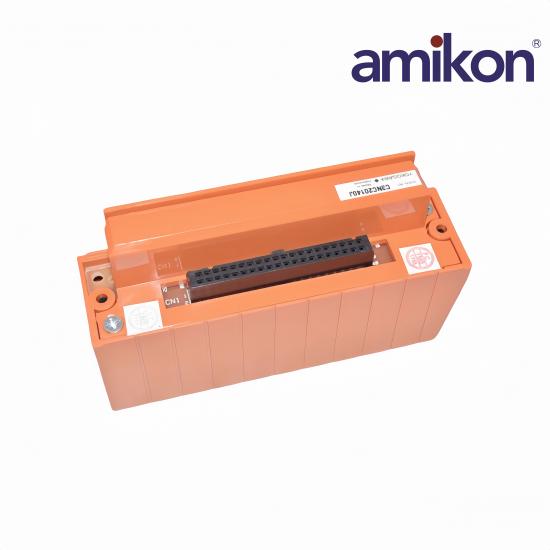

The Yokogawa STA4S-00 S1 Terminal Module is a high-performance modular interface component designed for integration into Yokogawa’s advanced automation systems. This terminal module is specifically engineered to provide an efficient and reliable connection between field devices and central control systems. It ensures seamless communication and signal processing in a wide variety of industrial environments. This module facilitates the connection of various digital and analog inputs and outputs, making it a versatile component for automation systems that require precision and reliability. The STA4S-00 S1 terminal module supports multiple communication protocols and is built to operate in demanding industrial conditions, ensuring high durability, minimal downtime, and optimal system performance. The design is focused on flexibility and ease of integration, with the module being compatible with a wide range of Yokogawa's products and other third-party equipment. Whether used in manufacturing, energy distribution, or environmental control, the STA4S-00 S1 ensures smooth communication and reliable data transfer. Flexible Input and Output Types: Supports various types of digital, analog, and pulse signals for flexible and comprehensive automation applications. Wide Protocol Support: The module supports multiple communication protocols such as Modbus RTU, Modbus TCP, and Ethernet/IP for interoperability with different control systems. Compact and Durable Design: Built for reliable performance in harsh industrial environments, featuring a rugged design that can withstand high temperatures, vibrations, and electromagnetic interference. Seamless Integration: Easily integrates with Yokogawa’s control systems and third-party devices for smooth automation and monitoring. Real-time Data Handling: Capable of processing real-time signals from field devices for accurate and timely control. Low Power Consumption: Designed for energy-efficient operation, minimizing power consumption while maintaining system performance.
