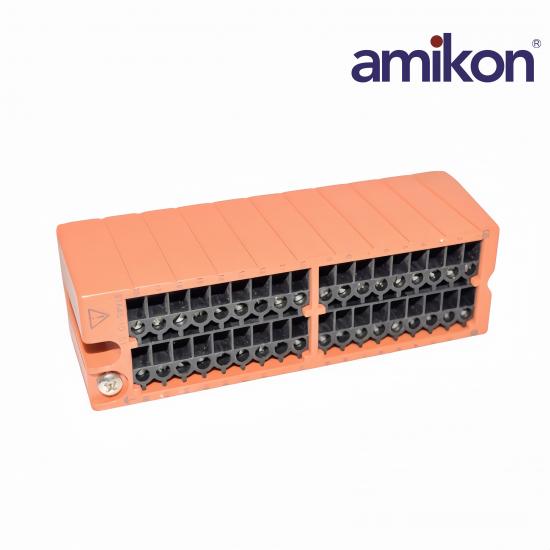

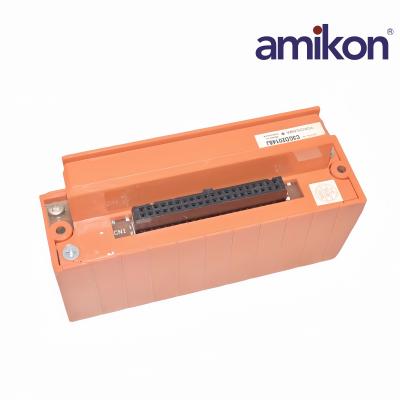

Manufacturer: Yokogawa

Product Type: Terminal Module

Product Number: STA4S-10 S1

M4 crimping terminals: 0.5 mm2 to 2 mm2 (AWG20 to 14)

Pressure clamp terminals (without sleeve) : 0.5 mm2 to 2 mm2 (AWG20 to 14)

Pressure clamp terminals (with sleeve) : 0.5 mm2 to 1.5 mm2 (AWG20 to 16)

Cable thickness (without sleeve): 0.5mm2 to 2mm2 (AWG20 to 14)

Peel-off length (without sleeve): 11 mm

Peel-off length(using a sleeve with insulating cover): 12mm

Peel-off length(using a sleeve without insulating cover): 10mm

Input Voltage: 24V DC (nominal)

Input Types: Digital inputs, analog inputs, pulse inputs

Output Types: Digital outputs, analog outputs, pulse outputs

Communication Protocols: Modbus RTU, Modbus TCP, Ethernet/IP

Maximum I/O Points: Up to 128 I/O points (depends on configuration)

Operating Temperature Range: -10°C to +60°C

Storage Temperature Range: -20°C to +70°C

Humidity Range: 5% to 95% (non-condensing)

Vibration Resistance: 5g at 20–500Hz

Dimensions: 160 mm x 120 mm x 55 mm (varies based on configuration)

Weight: 0.6 kg

The Yokogawa STA4S-10 S1 Terminal Module is a highly versatile and reliable interface module designed for use in Yokogawa's industrial automation systems. It serves as a key component for connecting field devices to central control systems, enabling seamless communication and real-time data processing. This module is particularly suitable for handling both digital and analog signals, making it ideal for a wide range of industrial applications, including manufacturing, energy, and environmental monitoring. With its robust construction and advanced functionality, the STA4S-10 S1 terminal module ensures high operational reliability, minimal downtime, and smooth integration with other automation components. The module supports multiple communication protocols, offering flexibility and adaptability in diverse system configurations. Designed to withstand harsh industrial conditions, it provides efficient data transfer and control, ensuring optimal system performance. Multiple I/O Support: Offers both digital and analog input and output types, providing flexibility for diverse applications. Wide Communication Protocol Compatibility: Supports multiple protocols such as Modbus RTU, Modbus TCP, and Ethernet/IP, enabling easy integration with different systems. Durability and Reliability: Built to operate under harsh industrial conditions with resistance to temperature fluctuations, vibration, and electromagnetic interference. Efficient Integration: The module can be easily integrated into both Yokogawa’s automation systems and third-party devices, ensuring smooth and flexible system operations. Real-Time Data Processing: Capable of handling real-time signals from field devices for accurate and immediate control actions. Energy Efficient: Designed to consume minimal power while maintaining high operational performance, contributing to energy-efficient industrial automation.
