1756-PA75/B AC Chassis Power Supply

1756-PA75/B
1756-PA75/B
1756-PA75/B

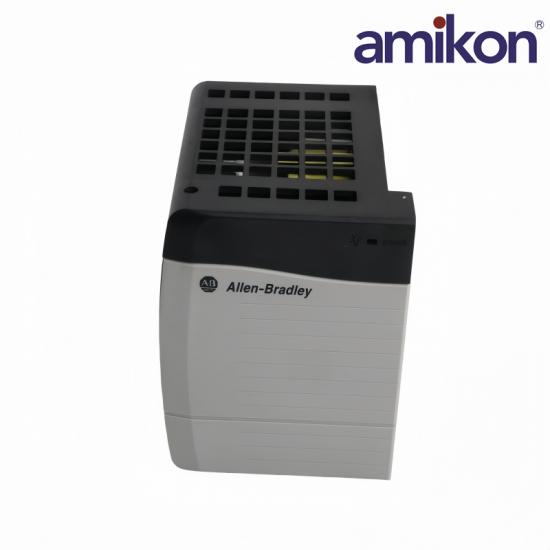

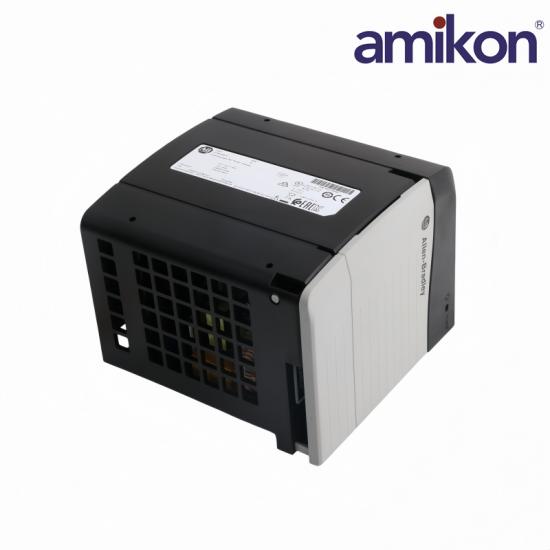

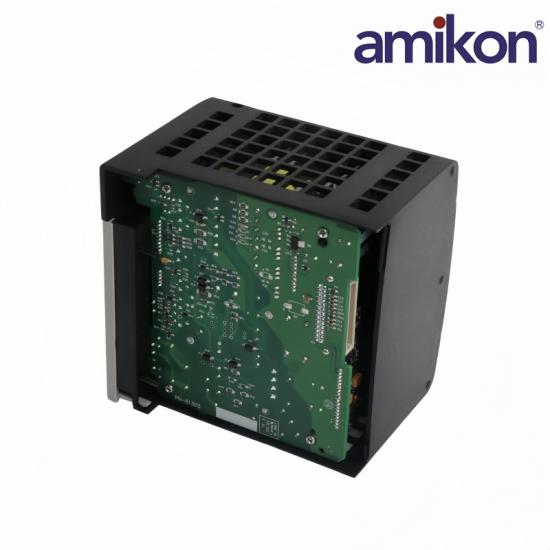

1756-PA75/B AC Chassis Power Supply

✉  INQUIRE NOW

INDUSTRIAL AUTOMATION · 1756 modular chassis

1756-PA75/B

1756 Series B AC Chassis Power Supply

MANUFACTURERIndustrial automation
MODEL1756-PA75/B
PART NUMBER1756-PA75/B
PRODUCT TYPE1756 Series B AC Chassis Power Supply
SYSTEM FAMILY1756 modular chassis
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1756-PA75/B
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Industrial automation 1756 modular chassis

1756-PA75/B

Price and Availability Inquiry

The Industrial automation 1756-PA75/B is a 1756 Series B AC Chassis Power Supply designed for 1756 modular chassis applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1756-PA75/B and required quantity in your inquiry.

Industrial automation 1756-PA75/B

Technical Specifications

Exact-order identification, configuration, application and ordering data for 1756-PA75/B.

01Product IdentityExact article and identity data
Article Number1756-PA75/B
Device TypeAC chassis power supply
RevisionSeries B
Compatible chassis1756-A4 / A7 / A10 / A13 / A17
02AC InputManufacturer-published technical data
Input Range85–265 V AC
Nominal Input120 / 240 V AC
Input Frequency47–63 Hz
Maximum Input Power100 VA / 100 W
03Backplane OutputConfiguration and application data
Combined Output Limit75 W
5.1 V Capacity13 A
3.3 V Capacity4 A
24 V Capacity2.8 A
04Mechanical & EnvironmentInstallation and ordering details
Dimensions (H × W × D)140 × 112 × 145 mm approx.
Approximate Weight0.95 kg
Operating Temperature0 to +60 °C
Inrush current20 A max.

Industrial automation 1756-PA75/B Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 1756-PA75/B

01

Which AC supply range is accepted by the /B unit?

The manufacturer specifies 85–265 V AC at 47–63 Hz, with 120/240 V AC nominal input.

02

How much combined backplane power is available?

The sum of all backplane outputs must not exceed 75 W, even when individual rail-current limits are not reached.

03

Where is this power supply mounted?

Install it at the left side of a compatible 1756 chassis; confirm the chassis series and installed power budget before replacement.

04

Which chassis versions should be checked?

The official instructions identify Series B and C chassis variants for 1756-PA75/B; verify the exact chassis code and revision on site.

05

How should the power budget be reviewed?

Add the module loads on the 5.1 V, 3.3 V and 24 V rails and check each current limit plus the 75 W combined cap.

06

Does this power supply provide an enclosure rating?

No enclosure type rating is assigned; it is an open-style component that requires an appropriate installed enclosure.

07

Why retain the /B suffix when ordering?

/B identifies the requested series. Supply the full 1756-PA75/B number and chassis-label photo, rather than quoting the suffix-free page alone.
