Question 1: What is the ABB 3HAC039109-002 reducer used for?

The ABB 3HAC039109-002 It’s specifically designed to reduce the speed of the motor's output while increasing the torque.

Question 2: What are the key features of the ABB 3HAC039109-002 reducer?

High Efficiency: The ABB 3HAC039109-002 is designed to provide efficient power transmission with minimal energy loss.

Compact Design: It has a compact and robust design, making it suitable for space-constrained applications.

Durability: Built to withstand harsh industrial environments, it ensures long-lasting performance even under heavy-duty operations.

Smooth Operation: Reduces the motor speed while maintaining or increasing torque output, providing smoother and more controlled motion.

Question 3: What are common issues with the ABB 3HAC039109-002 reducer?

Excessive Wear: Over time, the gears inside the reducer can wear out, especially if the system is under heavy load or used improperly.

Overheating: If the reducer becomes too hot, it could indicate insufficient lubrication, high operational loads, or poor ventilation around the unit. Ensure the system is running within recommended temperature ranges.

Misalignment: Misalignment of the reducer with the motor or connected components can lead to excessive wear and reduce the system's overall efficiency.

Noise or Vibration: Excessive noise or vibration may be caused by worn gears, improper mounting, or imbalance in the system.

This component ensures precise control and smooth motion, making it ideal for integration into complex robotic systems.

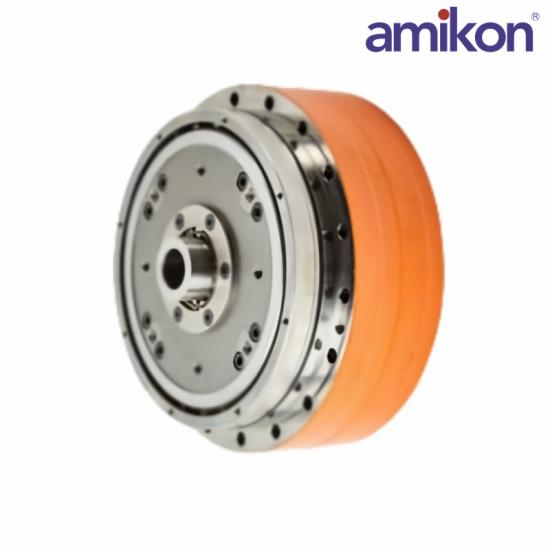

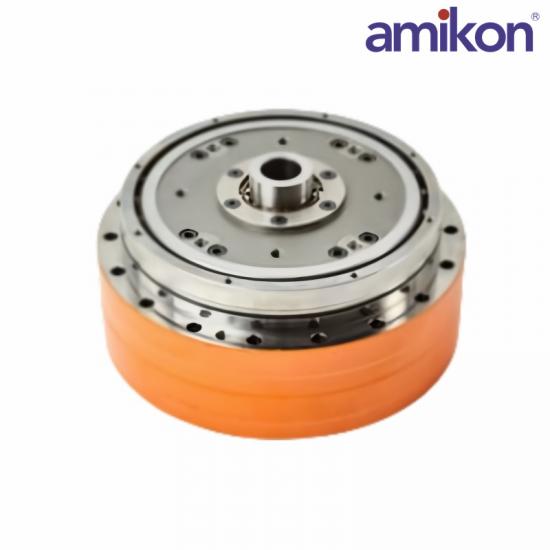

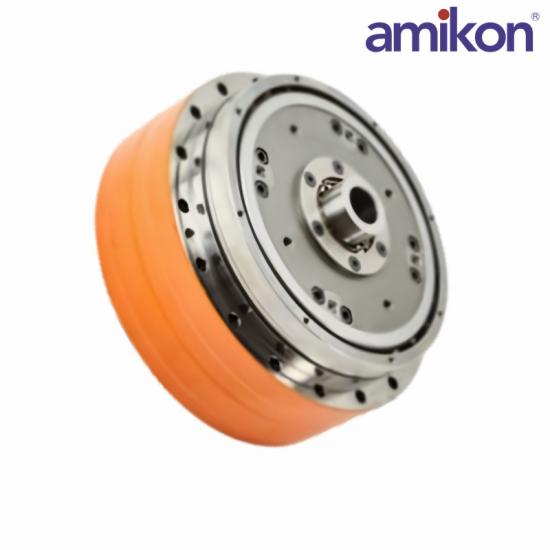

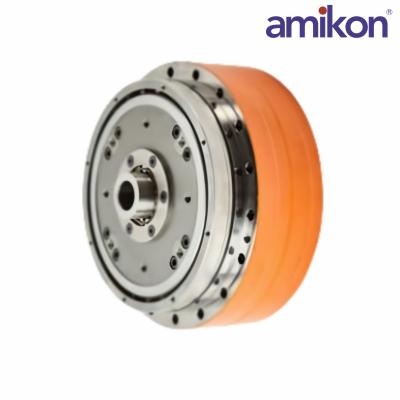

Model Number:3HAC039109-002

Gear Ratio:5:1

Torque Capacity:25 Nm

Speed Range:2500 rpm

Input Shaft Diameter:20 mm

Output Shaft Diameter:10 mm

Operating Temperature Range:-20°C to +60°C

Maintenance Frequency:Every 50,000 Hours

The ABB IRB4600 reducer 3HAC039109-002 is engineered with precision to deliver exceptional performance and durability. Its 3HAC039109-002 robust construction ensures reliable operation in even the most challenging industrial settings.

This 3HAC039109-002 reducer features a high-speed ratio and is capable of handling heavy loads, making it suitable for applications requiring precise torque transmission.

With a maintenance schedule of every 10,000 hours, this 3HAC039109-002 reducer minimizes downtime and maintenance costs, contributing to a cost-effective and efficient production process. The temperature range of -20°C to +50°C ensures its reliability across various operational environments.

Certified to ISO 9001:2015 and CE standards, the ABB IRB4600 reducer 3HAC039109-002 meets the highest quality and safety benchmarks. It is compatible with ABB‘s IRB 4600 robot series, enhancing capabilities and system integration.
