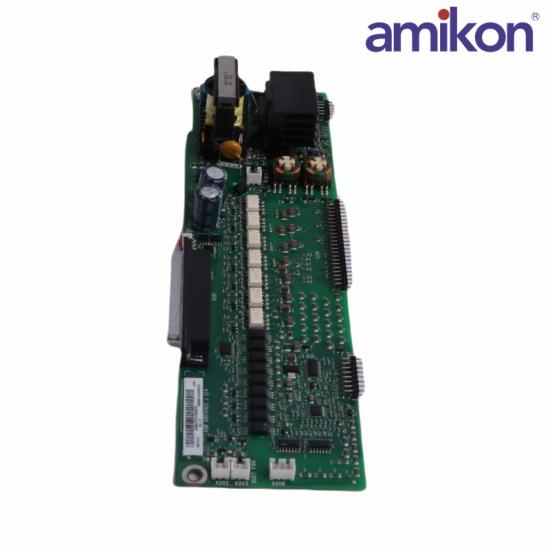

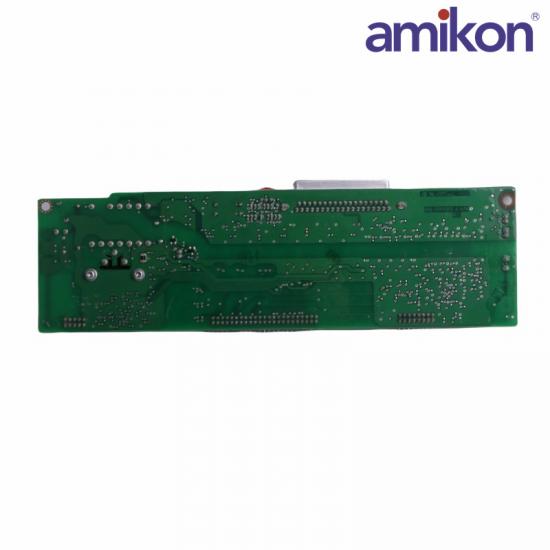

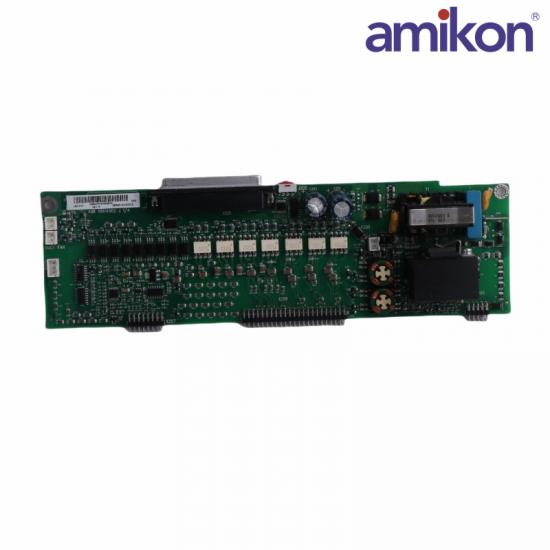

The ABB JINT-C1C 68614902H is a converter power board or driving board designed for use in ABB's industrial control systems, specifically for the drives and inverters used in motor control applications.

This JINT-C1C 68614902H board plays a crucial role in the conversion of electrical power and the control of the drive's functions. It is part of ABB's extensive range of power electronics used in various industrial and commercial sectors, particularly for controlling AC and DC motors, pumps, fans, and other rotating machinery.

Model Number: JINT-C1C 68614902H

Product Type: Converter Power Board / Driving Board

Manufacturer: ABB

Used In: Industrial motor control drives, inverters, systems.

The JINT-C1C 68614902H board is designed for efficient conversion of electrical power in AC to DC, DC to AC, and AC to AC applications.

It forms part of the power stage in ABB's motor drives, helping to control voltage, current, and frequency to achieve optimal motor performance.

The JINT-C1C 68614902H is equipped with interfaces for PWM (Pulse Width Modulation) control signals, which are used to drive the inverter's power transistors (e.g., IGBT or MOSFETs).

The JINT-C1C 68614902H board is designed to operate in high-temperature environments and may come with cooling features such as heat sinks, fans, or liquid cooling options, depending on the specific model and power requirements.

The JINT-C1C 68614902H is designed for high reliability and long service life in demanding industrial environments.

The JINT-C1C 68614902H converter power board is compatible with various ABB drive systems, particularly AC drives, DC drives, and servo drives, enabling it to serve a wide range of applications in industrial motor control.

The JINT-C1C 68614902H board operates in environments with ambient temperatures between -10°C to 60°C (14°F to 140°F), though specific models may have slightly different tolerances.

JINT-C1C 68614902H Suitable for operation up to 2000 meters (6561 feet) above sea level, with derating of power above that level.
