ABB ABB Robotics

3HNP02954-1

Price and Availability Inquiry

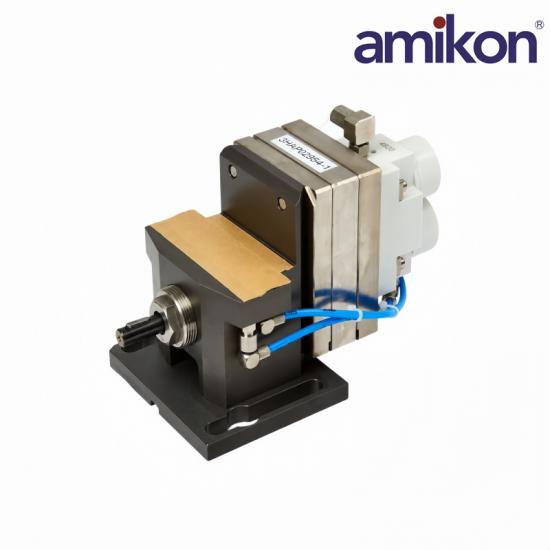

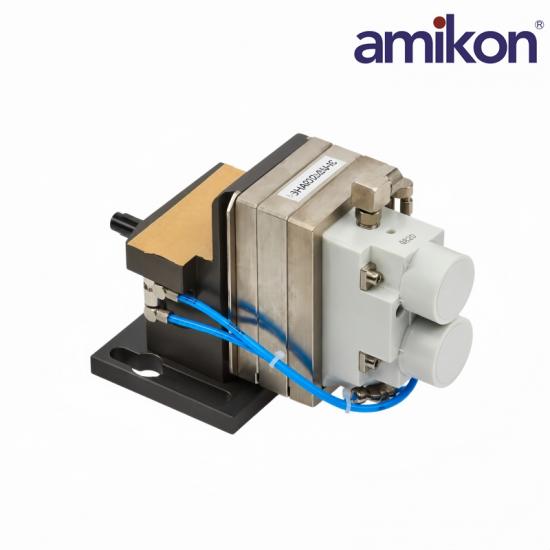

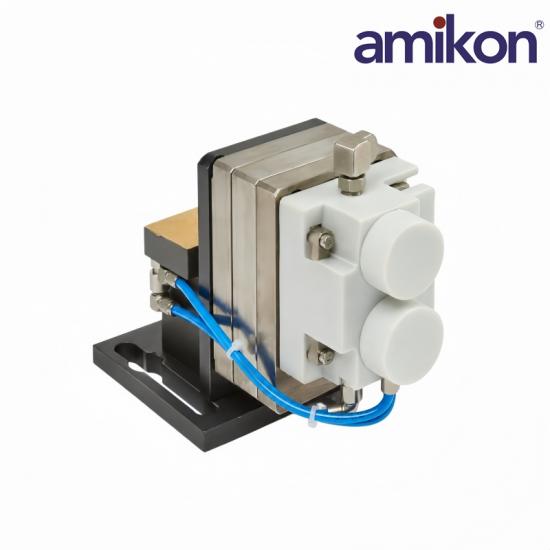

The ABB 3HNP02954-1 is a robotics hydraulic gear pump identified with a nominal displacement of 6.0 cubic centimetres per revolution.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 3HNP02954-1 and required quantity in your inquiry.

ABB 3HNP02954-1

Technical Specifications

Official 6.0 CCM precision gear-pump performance, pressure, dimensional and cleaning data.

01Product IdentityOfficial pump-family identification

ManufacturerABB Robotics

Product ID3HNP02954-1

Pump typePrecision gear pump

Displacement6.0 CCM/rev

02PerformancePublished operating data

Maximum pump speed150 rpm with paint

RotationClockwise

Accuracy±2%

Maximum flow basisPump speed × CCM/rev

03Pressure & TemperaturePublished process limits

Maximum fluid pressure20 bar

Recommended fluid pressure2–4 bar

Maximum shaft torque12 Nm

Maximum fluid temperature60 °C

04Mechanical & Cleaning6.0 CCM model data

Dimensions200 × 118 × 146 mm

Weight4.7 kg

Flushing / solvent7–10 sec / 80–120 ml

Purging speedMaximum 40 rpm with cleaning agent

3HNP02954-1 HYDRAULIC GUIDANCE

Frequently Asked Questions

Hydraulic compatibility, application, installation, priming, commissioning and ordering guidance for the 6.0 cm³/rev gear pump.

Which hydraulic-unit data determines pump compatibility?

Match the equipment model, mounting interface, shaft coupling, port orientation, rotation direction, working pressure and approved fluid to the original 3HNP02954-1 installation.

How should the 6.0 cm³/rev displacement be interpreted?

The published value is nominal volume displaced per revolution; actual flow depends on drive speed and operating conditions and must be checked against the hydraulic-unit design.

Which fluid requirements must be confirmed before installation?

Use only the fluid type, viscosity range, filtration and cleanliness class stated in the system manual, and prevent contamination from entering the open ports.

How are rotation and port orientation verified?

Compare the removed pump markings, shaft direction and suction and pressure-port positions with the replacement before connecting the coupling or hoses.

Which preparation is required before first start?

Clean the surrounding area, replace specified seals, fill or prime the pump as instructed, secure all connections and ensure the suction path is free of air leaks.

Which checks belong to hydraulic commissioning?

Start under the approved low-load procedure and monitor pressure, flow, leakage, cavitation noise, temperature and drive load before normal operation.

Which information should accompany the pump order?

Provide 3HNP02954-1, quantity, equipment and hydraulic-unit model, fluid specification and photos of the pump label, ports, shaft and mounting arrangement.
