ABB 424K1105 Type 25V Synchronism Check Relay

424K1105
424K1105
424K1105

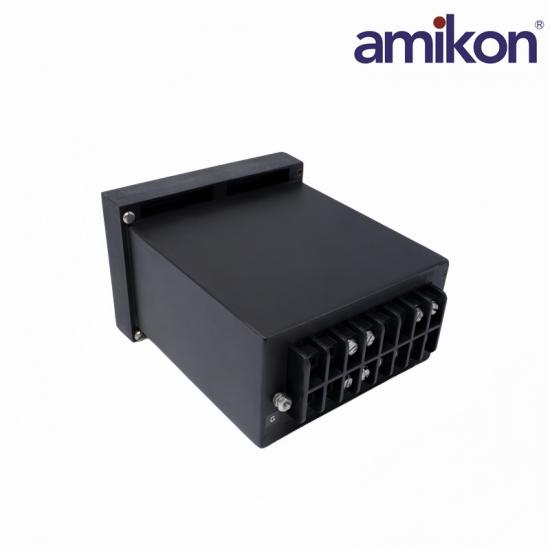

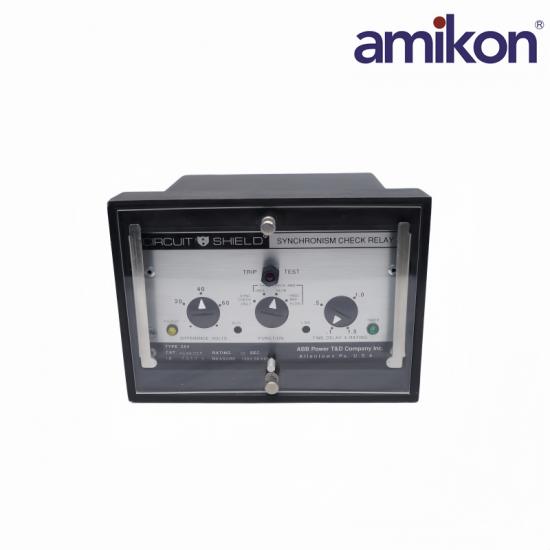

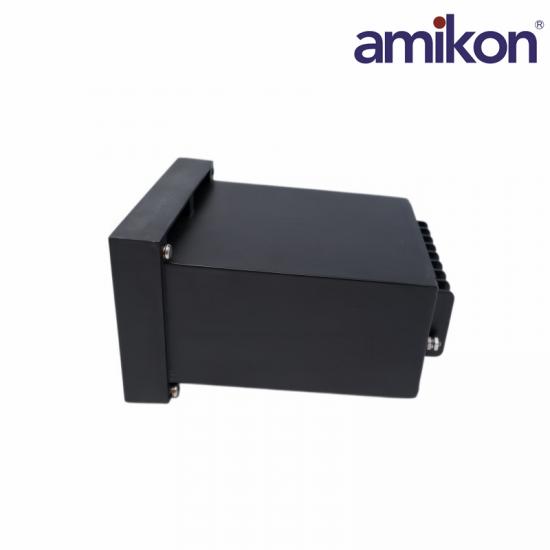

ABB 424K1105 Type 25V Synchronism Check Relay

✉  INQUIRE NOW

ABB · ABB Protective Relays

424K1105

Type 25V Synchronism Check Relay

MANUFACTURERABB
MODEL424K1105
PART NUMBER424K1105
PRODUCT TYPEType 25V Synchronism Check Relay
SYSTEM FAMILYABB Protective Relays
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    424K1105

  • Product Origin:

    Sweden

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    ABB

  • Product Origin:

    Sweden

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

ABB ABB Protective Relays

424K1105

Price and Availability Inquiry

The ABB 424K1105 is a drawout Type 25V synchronism-check relay with dead-bus and dead-line logic and an adjustable 1 to 15 second timing range.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 424K1105 and required quantity in your inquiry.

ABB 424K1105

Technical Specifications

Official ABB instruction-book ratings for the 424K1105 Type 25V synchronism-check relay, including input, timing, dead-bus threshold, contact and environmental data.

01Product IdentityOfficial relay designation
ManufacturerABB
Catalog number424K1105
Relay type25V synchronism check
CaseDrawout test case
02Voltage & BurdenPublished input ratings
Nominal input120 V AC, 50/60 Hz
Maximum continuous140 V AC
Minimum operate voltage90 V on line or bus
Burden1 VA per input nominal; 2 VA worst case
03Timing & SettingsOfficial adjustable functions
Time delay1 to 15 s
Vector differenceApproximately 0 to 80 V
Dial tolerance±10%
Dead-bus/dead-line pickup0 to 120 V; factory set 30 V
04Contacts & EnvironmentPublished service ratings
Operating temperature-20 to +70 °C
Continuous contact current5 A at 125 V DC
Closing duty30 A at 125 V DC
Dielectric test2000 V AC RMS for 1 minute

424K1105 SYNCHRONISM RELAY GUIDANCE

Frequently Asked Questions

Application, setting, wiring, testing and ordering guidance for the Type 25V synchronism-check relay in a drawout test case.

01

Which switching application is supported by this relay?

424K1105 provides synchronism checking with dead-bus and dead-line options. Confirm that the protection scheme requires Type 25V logic and the drawout test-case construction.

02

How should the line and bus voltage inputs be connected?

Use sinusoidal voltages from the same phase. The relay requires at least 90 V on either line or bus input and is rated 120 V AC nominal, 50/60 Hz.

03

How is the permissible vector difference selected?

Set the approximate 0 to 80 V vector-difference range according to the coordination study, then verify pickup because the published dial tolerance is ±10%.

04

Which operating delay applies to catalog number 424K1105?

This catalog number uses the 1 to 15 second adjustable delay. Choose the setting from the switching study and verify timing with calibrated test equipment.

05

How should dead-bus and dead-line pickup be commissioned?

Adjust the Type 25V threshold within the approximate 0 to 120 V range; the published factory setting is 30 V, but the final value must follow the protection design.

06

Which installation ratings must be respected?

Operate within -20 to +70 °C, verify the 125 V DC contact duty and follow the specified insulation and drawout-case test procedures before energization.

07

Which tests and ordering data should be documented?

Record voltage pickup, vector-difference pickup, time delay, dead-line and dead-bus logic and contact operation, and order as 424K1105 Type 25V drawout case.
