Description：

Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel.

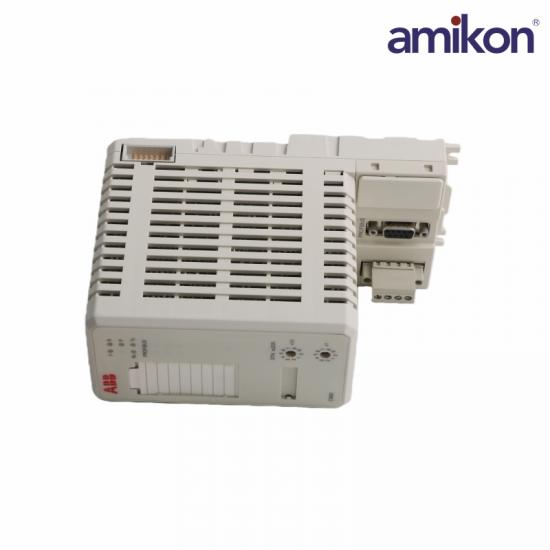

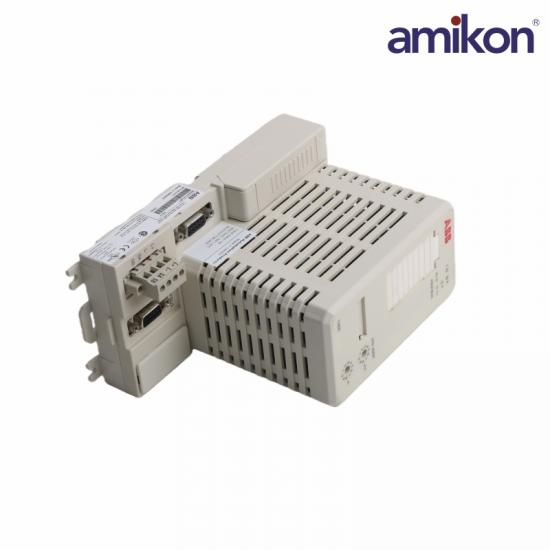

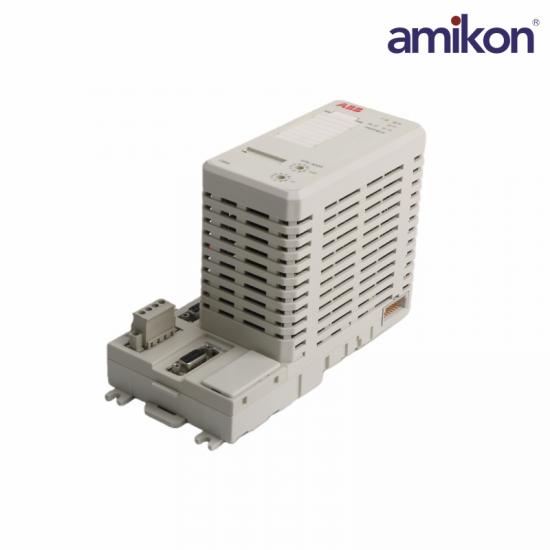

The CI845 Ethernet Fieldbus Communication Interface Module (FCI) is responsible for communications of S800 I/O or Select I/O to the AC 800M controllers. For redundant configurations, two CI845s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs.

Specification：

Frequently asked questions

Q1: What is the ABB CI845 3BSE075853R1 Communication Interface Module?

A1: It is an industrial communication interface module used for data exchange and communication integration within ABB and control systems.

Q2: What is the CI845 3BSE075853R1 power dissipation of this module?

A2: The CI845 3BSE075853R1 power dissipation is 5 W.

Q3: What is the CI845 3BSE075853R1 input voltage range?

A3: The CI845 3BSE075853R1 input voltage range is 19.2 V to 30 V.

Q4: What is the CI845 3BSE075853R1 operating temperature range?

A4: The CI845 3BSE075853R1 operating temperature range is -40°C (-40°F) to +70°C (158°F).

Q5: What humidity conditions can the CI845 3BSE075853R1 module support?

A5: It supports relative humidity from 5% to 95% in non-condensing environments.

Product Applications

Oil and Gas: Data acquisition and safety interlocking for explosion-proof and harsh environments such as offshore platforms and refineries.

Chemical and Petrochemical: Meeting the redundancy control needs of chemical plants for continuous production and high-risk environments.

Power and Energy: control and status monitoring for thermal power generation, hydropower, and wind farms.

Water and Wastewater Treatment: Managing distributed pump stations and valve control in extensive pipeline networks.

Metallurgy and Mining: Achieving precise logic control and signal transmission under harsh conditions such as high temperature and vibration.

Features and benefits

Possible to use with single or redundant 24V power supplies

Built-in power voting

Built-in supervision of power supply A and power supply B

Built-in cabinet temperature measurement

Built-in diagnostics

Soft marshalling

Optimized engineering

HART v7, HART pass-through

HART variables to the application (Select I/O)

Sequense of Events

Supports hot swap

Can be used in hazardous area

Mechanical locking slider which turns off power before removal

Mechanical keying

LED indicators
