Description：

Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel.

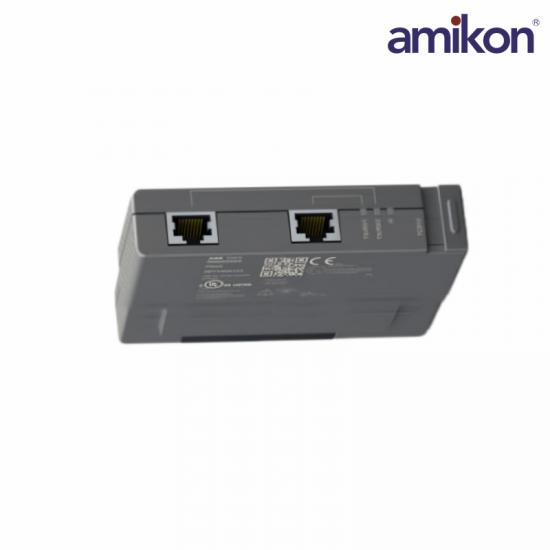

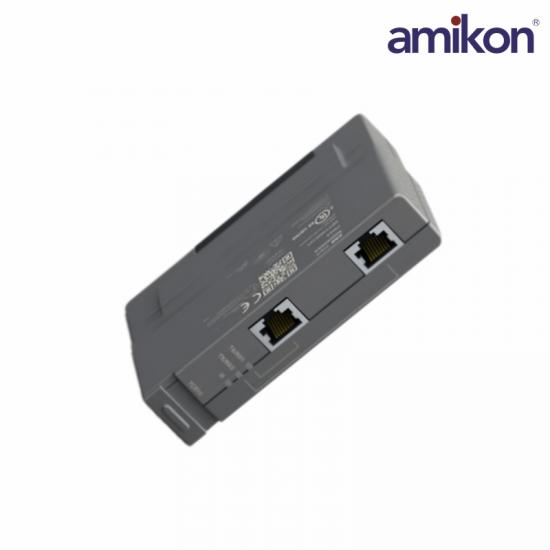

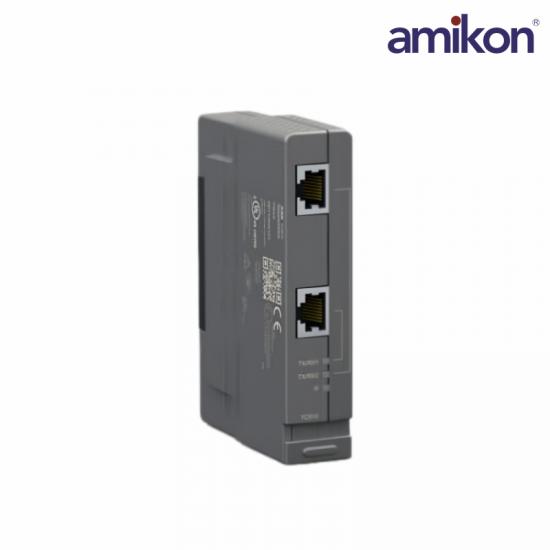

TC810 is an Ethernet Adapter for copper media with a built-in 2 port (RJ45) switch. For redundant configurations, two Ethernet Adapters TC810s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs.

Specification：

Frequently asked questions

Q1: What is the ABB TC810 3BSE076220R1 Ethernet Adapter?

A1: It is an industrial Ethernet adapter used for communication connectivity and network interfacing in ABB and control systems.

Q2: What is the TC810 3BSE076220R1 operating temperature range of this adapter?

A2: The TC810 3BSE076220R1 operating temperature range is -40°C (-40°F) to +70°C (158°F).

Q3: What is the TC810 3BSE076220R1 storage temperature range?

A3: The TC810 3BSE076220R1 storage temperature range is -40°C (-40°F) to +85°C (185°F).

Q4: How many external ports does this adapter provide?

A4: The TC810 3BSE076220R1 adapter provides 2 external Ethernet ports.

Q5: What is the TC810 3BSE076220R1 maximum supported cable length?

A5: The TC810 3BSE076220R1 maximum supported cable length is 100 meters.

Product Applications

Oil & Gas: Used for control of remote offshore drilling platforms, onshore oil production facilities, and oil and gas pipelines.

Chemical & Petrochemical: Used for control of refineries, ethylene cracking units, and various fine chemical production lines.

Power Generation: Used for remote data acquisition (SCADA) and control of traditional thermal power plants, hydropower stations, and large-scale wind power, photovoltaic, and other new energy power generation systems.

Metallurgy & Mining: Used for centralized monitoring of blast furnace ironmaking, converter steelmaking, large-scale steel rolling production lines, and mining conveyor systems.

Water & Wastewater: Used for distributed pumping stations and plant-wide chemical dosing and filtration process control in municipal waterworks and large-scale wastewater treatment plants.

Features and benefits

Can be used as single or redundant

Supports both Select I/O and S800 on Ethernet

Hosts two RJ45 ports

Built-in switch

Built-in diagnostics

Supports hot swap

Can be used in hazardous area

Mechanical locking slider which turns off power before removal

Mechanical keying

LED indicators
