Home ABB

ABB RPBA-01 3ABD64606859 PROFIBUS DP Adapter Module

RPBA-01 3ABD64606859
RPBA-01 3ABD64606859
RPBA-01 3ABD64606859

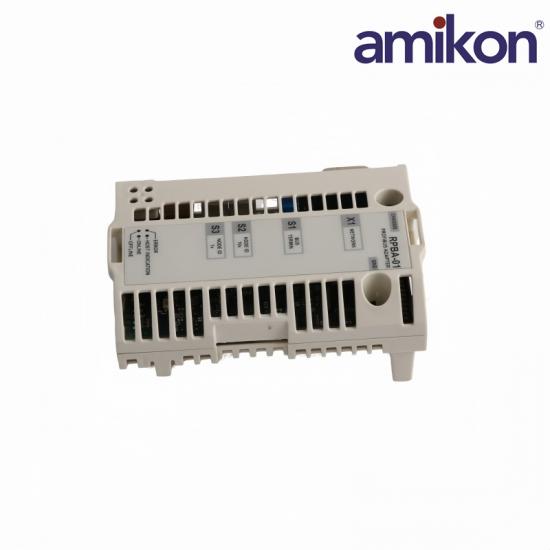

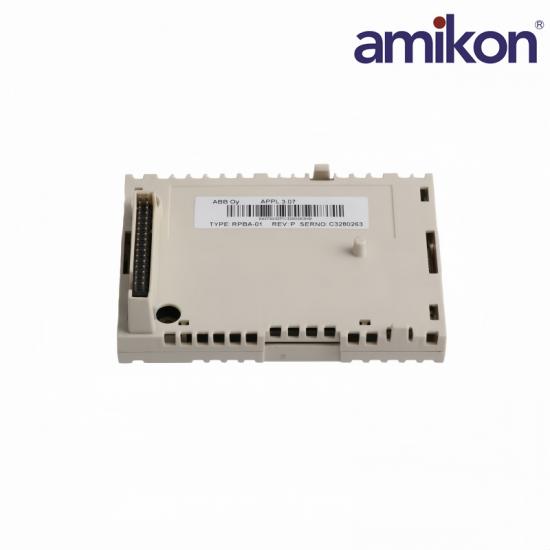

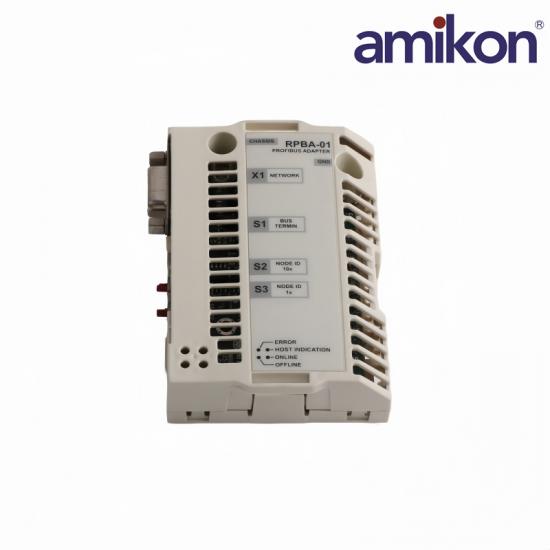

ABB RPBA-01 3ABD64606859 PROFIBUS DP Adapter Module

✉  INQUIRE NOW

ABB · ABB Drives Fieldbus Adapter

RPBA-01

PROFIBUS DP Adapter Module

MANUFACTURERABB
MODELRPBA-01
PART NUMBER3ABD64606859
PRODUCT TYPEPROFIBUS DP Adapter Module
SYSTEM FAMILYABB Drives Fieldbus Adapter
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    RPBA-01 3ABD64606859

  • Product Origin:

    Sweden

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    ABB

  • Product Origin:

    Sweden

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

ABB PROFIBUS DP Adapter Module

RPBA-01

Price and Availability Inquiry

The ABB RPBA-01 is an optional PROFIBUS DP adapter module that connects a compatible ABB drive as a slave on a PROFIBUS network.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model RPBA-01 and required quantity in your inquiry.

ABB RPBA-01

Technical Specifications

Official manufacturer-published identity, interface, performance and environmental data for RPBA-01.

01Product IdentityExact product identification
ManufacturerABB
ModelRPBA-01
Product ID3ABD64606859
Product typePROFIBUS DP Adapter Module
02Network InterfacePublished PROFIBUS data
ProtocolPROFIBUS DP / DP-V1
Physical layerShielded twisted-pair RS-485
Transfer rate9.6 kbit/s to 12 Mbit/s, auto-detected
TopologyMulti-drop; asynchronous half-duplex
03Capacity & HardwarePublished module ratings
Cyclic I/O28 bytes in / 28 bytes out maximum
Acyclic I/O240 bytes in / 240 bytes out maximum
Current consumption350 mA maximum at 5 V
Connector9-pin female D-sub
04Installation & CompatibilityVerified application data
Node address00 to 99 by rotary switches
ProtectionIP20
MountingDrive control-board option slot
Compatible drivesACS550 / ACH550 / ACS800 / ACQ800 / DCS800

ABB RPBA-01 Product Support

Frequently Asked Questions

Configuration, compatibility, installation and ordering guidance for RPBA-01.

01

How is RPBA-01 configured?

RPBA-01 is an optional PROFIBUS DP adapter that connects a compatible ABB drive as a slave on a PROFIBUS network.

02

Which protocol versions are supported?

The adapter supports PROFIBUS DP communication including the DP-V1 extension.

03

Which transmission rates are supported?

The module automatically detects rates from 9.6 kbit/s through 12 Mbit/s.

04

How much process data can it transfer?

Maximum cyclic data is 28 bytes in and 28 bytes out; maximum acyclic data is 240 bytes in and 240 bytes out.

05

Which connector and medium are required?

Use the 9-pin female D-sub interface with shielded twisted-pair RS-485 PROFIBUS cable.

06

How is the node address configured?

Rotary switches provide hardware address selection from 00 to 99; software addressing is available when the switches are set to 0.

07

What should be verified before ordering?

Confirm product ID 3ABD64606859, the installed drive family, option slot, GSD file, network address and bus-termination requirements.
