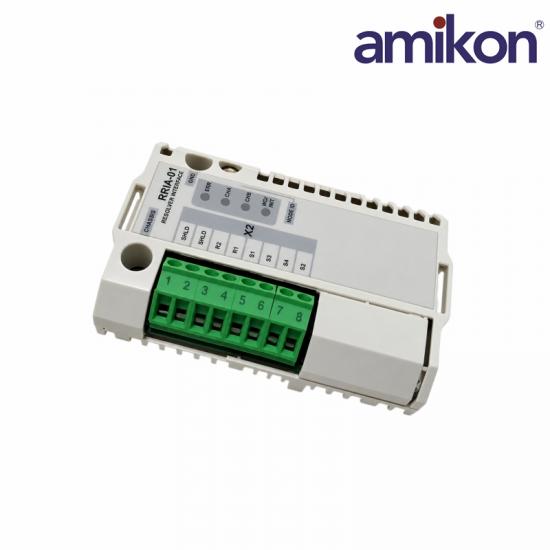

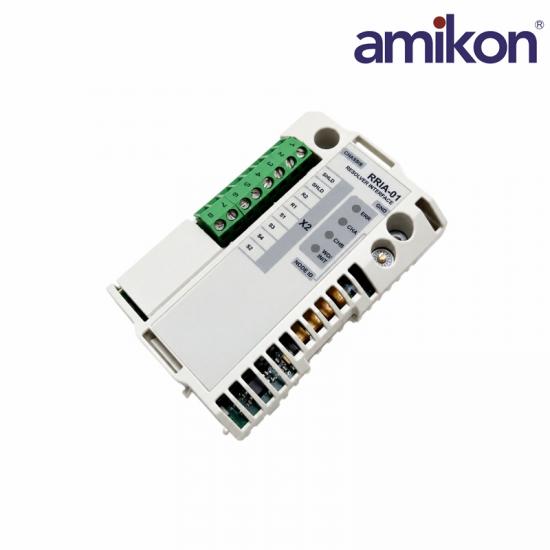

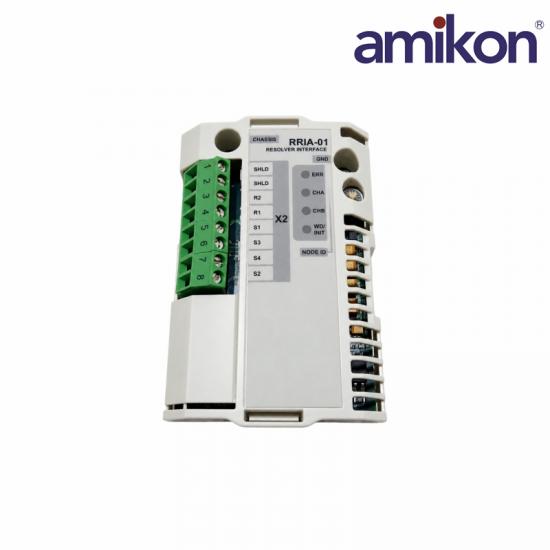

ABB RRIA-01 3ABD68486408 Resolver Interface Module

RRIA-01 3ABD68486408
RRIA-01 3ABD68486408
RRIA-01 3ABD68486408

ABB RRIA-01 3ABD68486408 Resolver Interface Module

✉  INQUIRE NOW

ABB · ACS800 RESOLVER INTERFACE

RRIA-01 3ABD68486408

Resolver Interface Module

MANUFACTURERABB
MODELRRIA-01 3ABD68486408
PART NUMBER3ABD68486408
PRODUCT TYPEResolver interface module
SYSTEM FAMILYABB ACS800 Drives
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    RRIA-01 3ABD68486408
  • Product Origin:

    Sweden
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    ABB
  • Product Origin:

    Sweden
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

ABB ACS800 Resolver Interface

RRIA-01 3ABD68486408

Price and Availability Inquiry

RRIA-01 provides an analog resolver interface for motor-shaft speed or position feedback in supported ABB ACS800 drive applications. Verify the complete RRIA-01 and 3ABD68486408 identity before ordering.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model RRIA-01 3ABD68486408 and required quantity in your inquiry.

ABB RRIA-01 3ABD68486408

Technical Specifications

ABB publication 3AFE68570760 Rev. B resolver-interface data.

01Product IdentityExact module identification
ManufacturerABB
ModelRRIA-01
Part Number3ABD68486408
Product TypeResolver interface module
02Resolver InterfacePublished signal and resolution data
Excitation Output12 Vpp at 10 or 20 kHz AC
Signal Inputs8 Vpp at 10 or 20 kHz
Maximum Frequency20 kHz
Position Resolution0.024% (12 bits)
03Installation & WiringMounting and cable requirements
Drive MountingRMIO SLOT 1 or SLOT 2
External MountingAIMA-01 I/O module adapter
Resolver Cable4 (2+1) twisted pairs; individual + overall shields
Maximum Cable100 m
04Physical & ElectricalPublished dimensions and load data
Dimensions95 × 34 × 62 mm
Degree of ProtectionIP20
Power Consumption180 mA (5 V) + 80 mA (24 V) maximum
Connections38-pin bus + 8-pole terminal block

ABB RRIA-01 PRODUCT SUPPORT

Frequently Asked Questions

Model-specific compatibility, installation, configuration and ordering guidance.

01

What is the function of RRIA-01?

It interfaces an analog resolver to an ABB ACS800 drive for motor-shaft speed or position feedback.

02

Which application programs are listed as compatible?

ABB lists Motion Control APXR7000 or later, Permanent Magnet Synchronous Machine Standard AQPM7040 or later, and System Application ANXR7100 or later.

03

Where can the module be installed?

Install it in RMIO SLOT 1 or SLOT 2, or externally on an AIMA-01 I/O module adapter.

04

What resolver cable is specified?

Use 4 (2+1) twisted pairs with individual and overall shields, 0.5–1.0 mm² conductors and a maximum length of 100 m.

05

What resolver signal levels are published?

The excitation output is 12 Vpp at 10 or 20 kHz AC; the two resolver inputs are 8 Vpp at 10 or 20 kHz.

06

When is the node address required?

For external AIMA-01 mounting, set the rotary node address from 16 to 31. It is not required in RMIO SLOT 1 or SLOT 2.

07

What should be checked before ordering?

Confirm RRIA-01, part number 3ABD68486408, the drive application, mounting location, resolver rating, cable specification and product-label photos.
