Clock Frequency	Memory
133 MHz	64 MB
Processor Type	Flash PROM for Firmware Storage
MPC866	4 MB
Power Supply	Power Consumption
24 V DC (19.2-30 V DC)	+24 V typ/max: 160 / 250 mA
Power Dissipation	Operating Temperature
3.8 W	+5 to +55 °C (+41 to +131 °F)
Storage Temperature	Temperature Changes
-40 to +70 °C (-40 to +158 °F)	3 °C/min (per IEC/EN 61131-2)
Relative Humidity	Emitted Noise
5 to 95 %, non-condensing	< 55 dB (A)
Vibration	Rated Isolation Voltage
10 < f < 50 Hz: 0.0375 mm amplitude 50 < f < 150 Hz: 0.5 g acceleration 5 < f < 500 Hz: 0.2 g acceleration 5 < f < 500 Hz: 0.2 g acceleration	500 V a.c.
Dielectric Test Voltage	Dimensions
50 V	59 mm × 186 mm × 127.5 mm (2.9 in. × 7.3 in. × 5.0 in.)
Weight (including base)
0.7 kg (1.5 lbs)

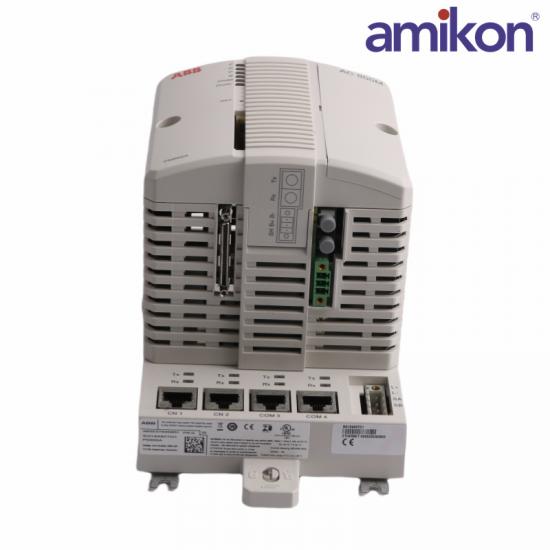

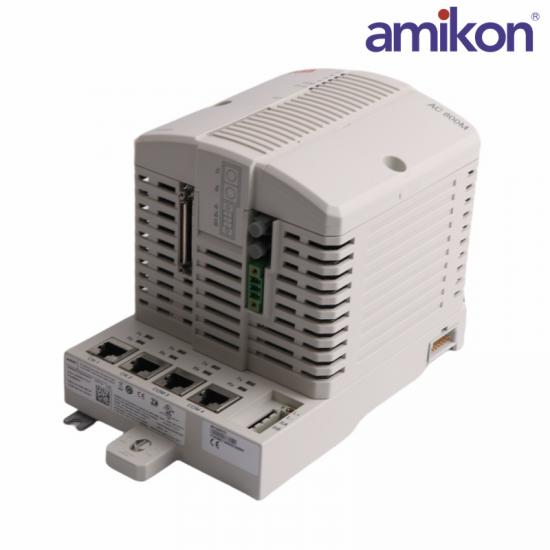

The prime function of SM812K01, is to provide intelligent supervision of a controller during non-SIL and SIL1-2 operations, and together with a PM867 form a 1oo2 diverse structure for SIL3 applications.

For high availability applications it is possible to have redundant SM812K01´s that work together with any of the two redundant CPUs. SM812K01 has a dedicated synchronization link to synchronize active and redundant SM for hot-insert and online upgrade. It is needed during hot-insert and online upgrade situations to copy data between two SM812K01 in a redundant setup.

The SM812K01 has a connector with three digital inputs and two digital outputs that can be used for safety-related digital I/O (not process I/O).
