ABB PM867K02 Redundant Processor Unit Supplier,ABB PM867K02 Redundant Processor Unit Manufacturer,ABB PM867K02 Redundant Processor Unit Factory

Product Categories

New Products

Clock Frequency	Memory
133 MHz	64 MB
RAM Available for Application	Processor Type
46.559 MB	MPC866
Flash PROM for Firmware Storage	Power Supply
18 MB	24 V DC (19.2-30 V DC)
Power Consumption	Power Dissipation
+24 V typ/max: 210 / 360 mA	5.1 W (8.6 W max)
Built-in Back-up Battery	Ethernet Channels
Lithium, 3.6 V	2
Recommended Control Network Backbone	Real-time Clock Stability
100 Mbit/s switched Ethernet	100 ppm (approx. 1 h/year)
Operating Temperature	Storage Temperature
+5 to +55 °C (+41 to +131 °F)	-40 to +70 °C (-40 to +158 °F)
Relative Humidity	Emitted Noise
5 to 95 %, non-condensing	< 55 dB (A)
Vibration	Rated Isolation Voltage
10 < f < 50 Hz: 0.0375 mm amplitude 50 < f < 150 Hz: 0.5 g acceleration 5 < f < 500 Hz: 0.2 g acceleration	500 V a.c.
Dielectric Test Voltage	Protection Class
50 V	IP20
Dimensions	Weight (including base)
119 mm × 186 mm × 135 mm (4.7 in. × 7.3 in. × 5.3 in.)	K01: 1200 g (2.6 lbs), K02: 2700 g (5.95 lbs)

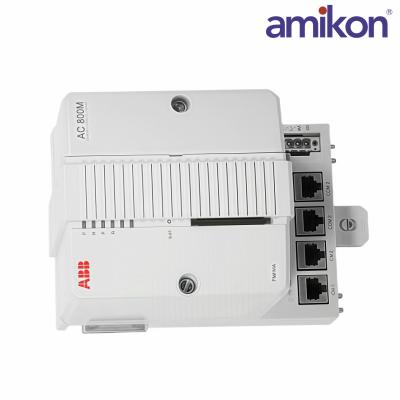

The PM867K02 CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM867K02 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4).

One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
