Type	Voter and Over Voltage Protection
Rated Output Current	20 A
Rated Input Power	500 W
Mains/Input Voltage, Nominal	1x24 V d.c.
Mains Frequency	60 V d.c.
Heat Dissipation	24 W at 20 A and 6 W at 5 A
Output Voltage Regulation	1.2 V lower than input
Maximum Output Current	35 A (Overload)
Maximum Ambient Temperature	55 °C
Output Over Voltage Protection	< 30 V
Dimensions (SS823)
Width	116 mm (4.6")
Depth	145 mm (5.8") including connector
Height	132 mm (5.3")
Weight	870 g (1.9 lbs.)
Mounting Spacing (Width)	15 mm (0.59")
Mounting Spacing (Height)	30 mm (1.2")

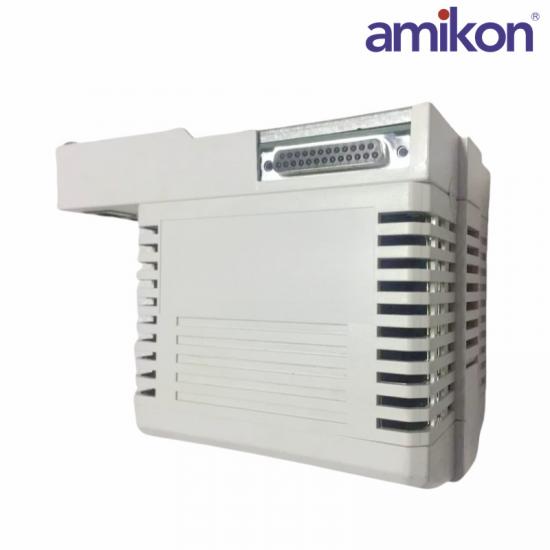

The Voting Units SS823 have been specifically designed to work as control units within a redundant power supply configuration. The output connections from two Power Supply Units are connected to the Voting Unit.

The SS823 Voting Unit separates the redundant Power Supply Units, supervises the voltage supplied, and generates supervision signals to be connected to the power consumer. Green LED’s, mounted on the front panel of the voting unit, provide a visual indication that the correct output voltage is being delivered. Simultaneously with the green LED illuminating, a voltage-free contact closes the path to the corresponding “OK connector”. Voting Unit trip levels are factory preset.

The AC 800M High Integrity and the connected S880 High Integrity I/O system (including field power) shall be supplied from a SELV or PELV power supply (e.g. SD83x) connected through the power voter SS823. The SS823 Voting Unit has a double overvoltage protection circuit on input.
