Description：

S800 I/O is a comprehensive, distributed, and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology.

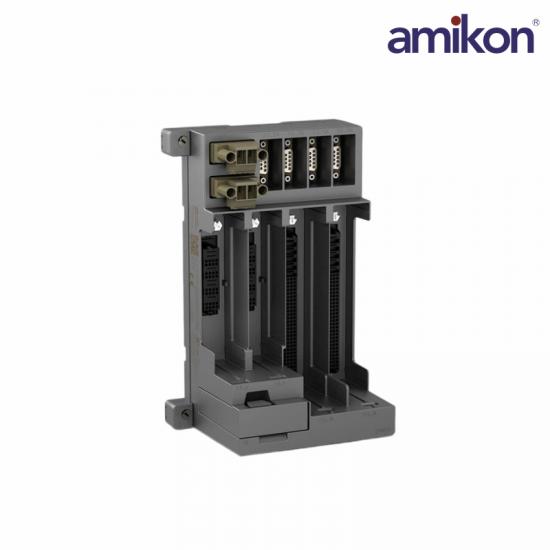

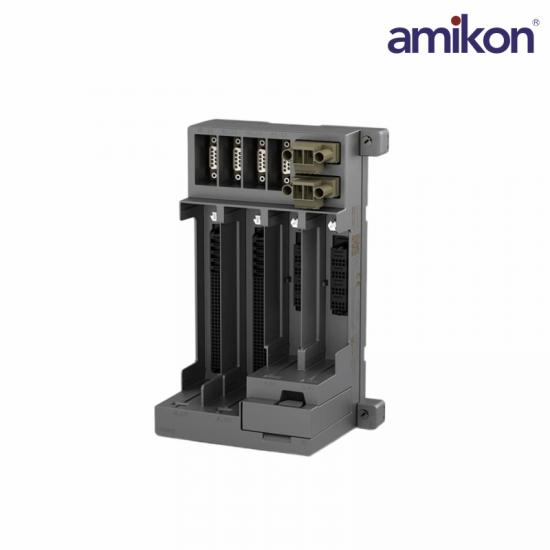

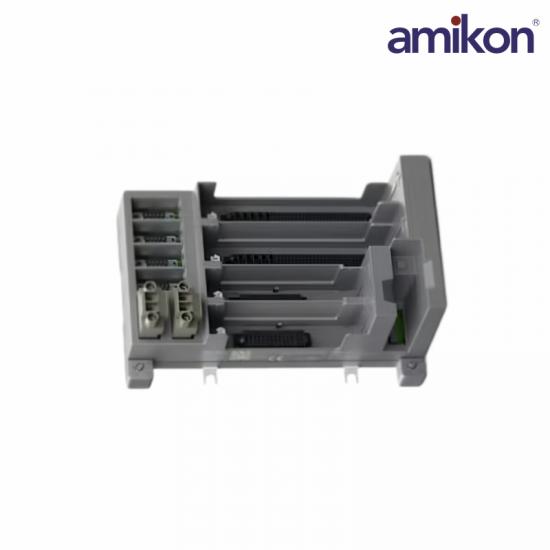

The TU860 is an MTU for S800 I/O on Ethernet and connects up to 12 single or redundant S 800I/O Modules and Module Termination Units and hosts single or redundant Ethernet Adapters (TC810, TC811) and Ethernet FCI Communications Interface Modules (CI845s) for reliable communications with the AC 800M process controllers.

Specification：

Frequently asked questions

Q1: What is the ABB TU860 3BSE078710R1 Ethernet Master Terminal Unit?

A1: It is an Ethernet master terminal unit used for industrial communication and signal interfacing within ABB and control systems.

Q2: What is the TU860 3BSE078710R1 operating temperature range of this unit?

A2: The TU860 3BSE078710R1 operating temperature range is -40°C (-40°F) to +70°C (158°F).

Q3: What is the TU860 3BSE078710R1 storage temperature range?

A3: The TU860 3BSE078710R1 storage temperature range is -40°C (-40°F) to +85°C (185°F).

Q4: What humidity conditions can this unit support?

A4: It supports relative humidity levels from 5% to 95% without condensation.

Q5: What is the TU860 3BSE078710R1 supported installation altitude?

A5: The supported altitude range is from -1000 to 5000 meters, with certain restrictions applying at higher elevations.

Product Applications

Oil and Gas: Used for monitoring critical equipment in oil and gas extraction, pipelines, and refining processes, adaptable to harsh or explosion-proof environments.

Chemical and Petrochemical: Leveraging its support for the HART protocol and high redundancy, it meets the requirements for precise data acquisition and safety interlocking control in complex chemical reaction processes.

Power and Energy: Widely deployed in large power plant and substation systems, it can be used for precise time stamping and comprehensive data acquisition of electrical equipment.

Water and Wastewater Treatment: As a distributed I/O system, it reduces wiring costs for remote pumping stations and water plants, enabling efficient distributed control over large areas.

Features and benefits

Two mounting slots for connecting single/redundant CI845 FCI modules

Two mounting slots for connecting single/redundant Ethernet Adapters

Two connectors for connecting single/redundant 24 V power supplies

Two Modulebus connectors for connecting the I/O cluster (only S800 I/O modules can be connected)

Mountable on a 35 mm DIN rail
