Description：

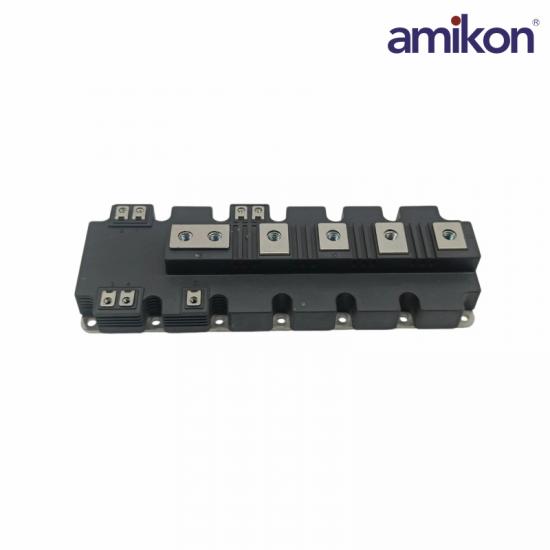

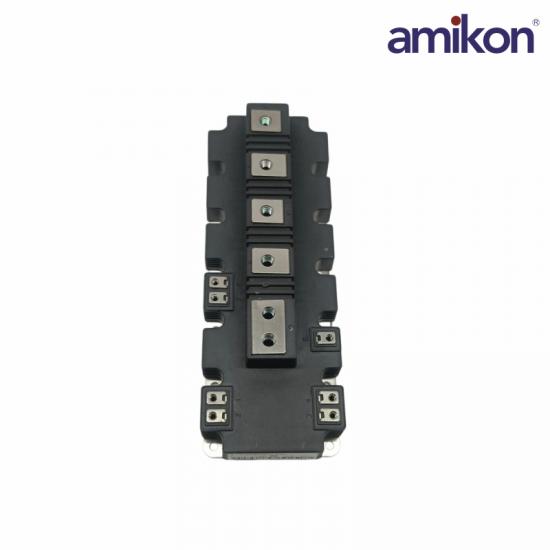

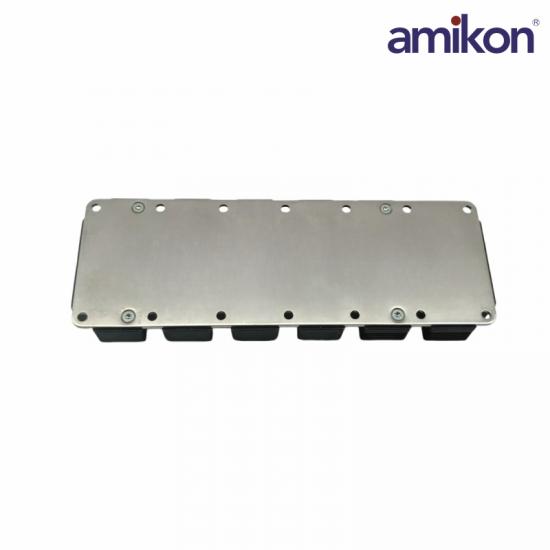

The FF1400R12IP4 is a high-power PrimePACK™3 IGBT module from Infineon, featuring advanced Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode technology for superior efficiency and reliability in demanding industrial applications. Designed with a collector-emitter voltage of 1200 V and a nominal collector current of 1400 A, the module supports a repetitive peak collector current of up to 2800 A, making it ideal for high-power converters, motor drives, traction drives, UPS systems, auxiliary inverters, and wind turbine applications.
Specification：
|
Model Number |
NGDR-07C NGDR-07 FF1400R12IP4 |
|
Collector-Emitter Voltage(VCES) |
1200 V |
|
Continuous DC Collector Current(IC nom) |
1400 A |
|
Repetitive Peak Collector Current(ICRM) |
2800 A |
|
Total Power Dissipation(Ptot) |
7.65 kW |
|
Gate-Emitter Peak Voltage(VGES) |
±20 V |
|
Collector-Emitter Saturation Voltage(VCEsat) |
Typ. 2.05 V |
|
Gate Threshold Voltage(VGEth) |
5.0~6.5 V |
|
Gate Charge(QG) |
9.60 μC |
|
Internal Gate Resistor(RGint) |
0.8 Ω |
|
Input Capacitance(Cies) |
82.0 nF |
|
Reverse Transfer Capacitance(Cres) |
4.60 nF |
|
Collector Cut-Off Current(ICES) |
5.0 mA |
Frequently asked questions
Q1: What is the FF1400R12IP4 IGBT module used for?
A1: It is commonly used in industrial drives, power converters, inverter systems, and high-power motor control applications.
Q2: What is the NGDR-07C NGDR-07 FF1400R12IP4 internal gate resistor value?
A2: The NGDR-07C NGDR-07 FF1400R12IP4 internal gate resistor (RGint) is 0.8 Ω, helping improve switching control and stability.
Q3: What is the NGDR-07C NGDR-07 FF1400R12IP4 input capacitance of the module?
A3: The NGDR-07C NGDR-07 FF1400R12IP4 input capacitance (Cies) is 82.0 nF.
Q4: What is the NGDR-07C NGDR-07 FF1400R12IP4 reverse transfer capacitance?
A4: The NGDR-07C NGDR-07 FF1400R12IP4 reverse transfer capacitance (Cres) is 4.60 nF, which helps determine switching characteristics.
Q5: What is the NGDR-07C NGDR-07 FF1400R12IP4 collector cut-off current of the module?
A5: The NGDR-07C NGDR-07 FF1400R12IP4 collector cut-off current (ICES) is 5.0 mA.
Product Applications
Auxiliary Inverters
High Power Converters
Motor Drives
Traction Drives
UPS Systems
Wind Turbines
