Description：

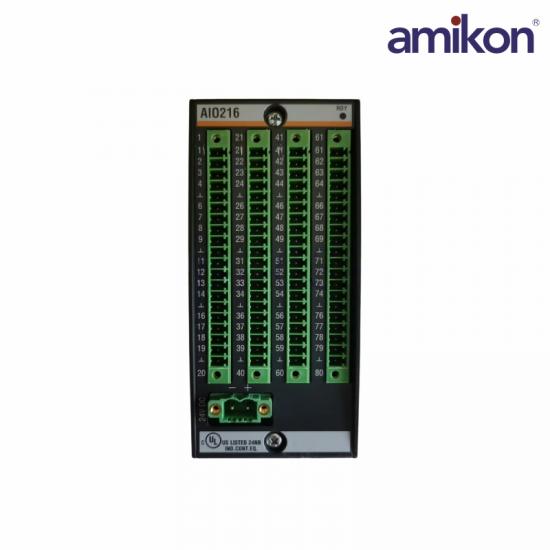

The AIO208 and AIO216 modules enable the measuring or output of all standard analog signals. The AIO208 offers 8 channels and the AIO216 16 channels compactly in a single module. The standard signal types for current (0 to 20 mA and 4 to 20 mA) and voltage ranges (±10 V to ±10 mV) allow the connection of a wide range of sensors and actuators. A minimum 14 bit resolution makes it possible to also measure signals that do not fully utilize the measuring range (e.g. 0 to 5 V) with a sufficiently high resolution.

Specification：

Frequently asked questions

Q1: What is the BACHMANN AIO216 Analog Input/Output Module used for?

A1: The AIO216 is an analog I/O module designed for acquiring, processing, and transmitting analog signals in industrial and control systems.

Q2: How many channels does the AIO216 module provide?

A2: The AIO216 module features 16 analog input/output channels, allowing multiple field devices to be connected simultaneously.

Q3: What is the galvanic isolation voltage of the AIO216 module?

A3: The AIO216 provides 500 V galvanic isolation, helping protect the control system from electrical interference and ground potential differences.

Q4: What is the power supply range of the AIO216 module?

A4: The AIO216 module operates with a supply voltage range of 18 VDC to 34 VDC.

Q5: What is the internal current consumption of the AIO216?

A5: The AIO216 internal current consumption is 80 mA.

Product Applications

Wind Power Generation: Widely used in wind turbine pitch and yaw control systems. It accurately acquires key continuous signals such as wind speed, wind direction, generator temperature, and vibration, and outputs pitch control commands to achieve intelligent regulation and safety protection.

Rail Transportation: Participates in core onboard control systems, including traction inverter control, braking system monitoring, and onboard energy management.

Plastics and Packaging Machinery: Provides high-precision closed-loop temperature control (e.g., injection molding machine heating belt control), pressure regulation, and tension control.

Process Industries and Test Benches: Plays a crucial role in signal acquisition and control in water treatment plants, energy management systems (EMS), smart manufacturing production lines, and various industrial test benches.

Features

16-channel analog input/output module

Supports voltage, current, Pt sensors, and thermocouples

Configurable modes per channel

High resolution: 16-bit input, 14-bit output

Adjustable filter per channel(4 kHz to 0.5 Hz)

Galvanic isolation up to 500 V
