Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Manufacturer : Bently Nevada |
|
Product No. : 200157-05-05 |
|
Product type :Sensor Proximity |
|
Excitation Voltage: 4.7 to 5.5 Vdc |
|
Quiescent Current: <800 µA |
|
Output Bias Voltage: +2.5 ± 0.23 Vdc |
|
Sensitivity @ 80 Hz (± 12%): 10.2 mV/(m/s²) (100 mV/g) |
|
Axial Shock Limit: 49,050 m/s² pk (5,000 g pk) |
|
Temperature Range: -40 ºC to +105 ºC (-40 ºF to +221 ºF) |
|
Sealing (Hermetic): 5X10⁻⁸ atm•cc/s (3.1X10⁻⁹ atm•in³/s), maximum |
|
Relative Humidity: 100% relative, condensing, non-submerged |
The 200150 Accelerometer also operates with the Trendmaster 2000 system. It interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.

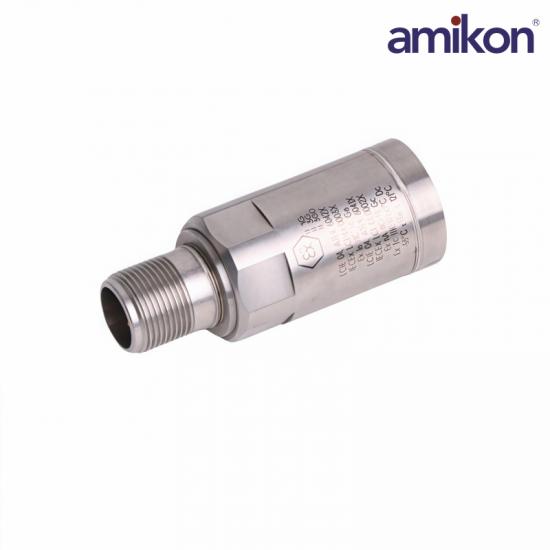

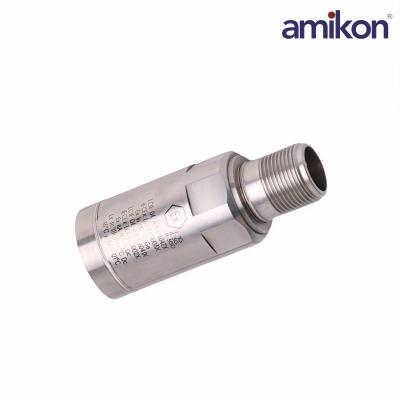

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well-suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal, which is proportional to the acceleration parallel to the sensitive axis of the transducer.
+86 18030132585
sales16@amikon.cn
ZXD18030132585
|
Amikon provide 12 months warranty for all the goods from us. |
|
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation. |
|
Shipped in 3 days after payment |
|
Original packing with cartons. |
|
100% make sure the best quality! |
|
1. All products are brand new and original, with a one-year warranty |
|
2. Multiple shipping options available, customers can choose to pick up directly |
|
3. Immediate shipping upon receipt of payment |
|
4. Original packaging to ensure safe transport |
|
5.100% guarantee of the best quality |
|
6. Worldwide shipping |
Amikon sells new and surplus products and develops channels to purchase such products.
This site is not approved or endorsed by any of the listed manufacturers or trademarks.
Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.
All product names, trademarks, brands and logos used on this site are the property of their respective owners.
The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
