Description：

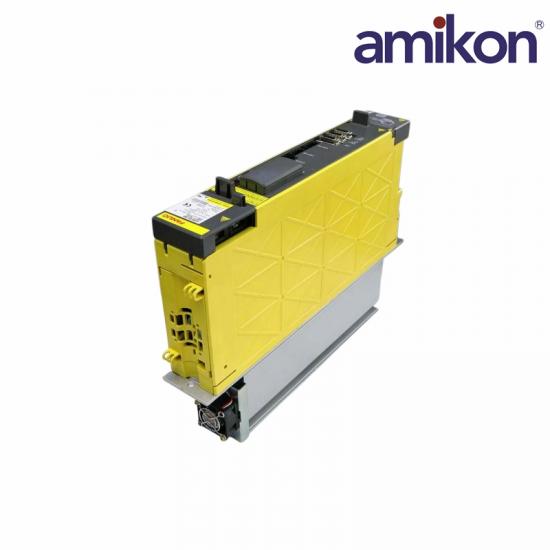

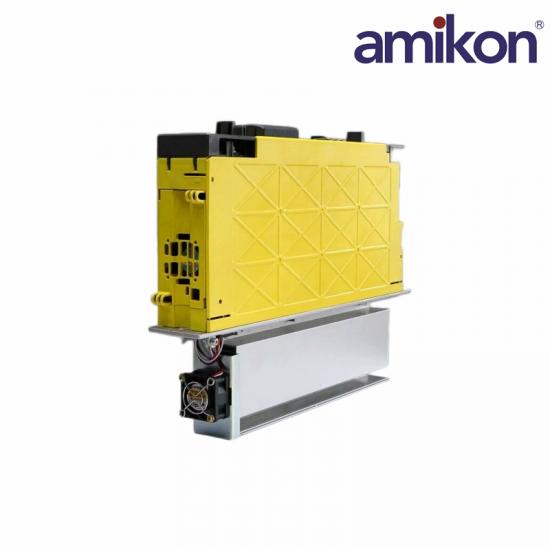

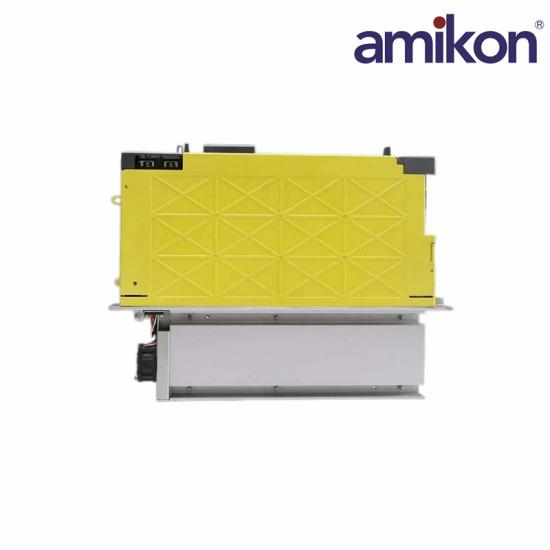

Part number A06B-6117-H209 from the A06B series by FANUC is a servo amplifier module designed for high performance in complex applications. This module has an impressive output voltage capacity ranging from 200 to 240 VAC, which enables it to work effectively in various system configurations. It also maintains a consistent performance across a wide frequency spectrum, allowing output frequencies between 0.1 and 800 Hz.

Rated for 19A output currents on both the L-axis and M-axis, this module meets the needs of demanding motion control applications. The input voltage can vary between 283 and 339 VDC, with an input power requirement set at 11 kW. This module accommodates input frequencies of 50 or 60 Hz for optimal function.

Operating in challenging conditions is made feasible due to its ambient temperature range, which allows it to function from 0°C up to a maximum of 55°C without losing performance. Furthermore, it effectively handles ambient humidity levels of 90% RH or less, provided that condensation is avoided.

Specification：

Frequently asked questions

Q : What exactly is the FANUC A06B-6117-H209?

A: It is a dual-axis (twin-channel) Alpha i Series Servo Amplifier Module used to control two independent servo motors.

Q : What is the required input voltage for the high-voltage circuit?

A: It requires a DC bus voltage of 283 – 339 V DC, which must be supplied by a preceding Power Supply Module (PSM).

Q : What voltage does the control loop/logic circuit require?

A: It requires a standard external 24 V DC control power supply input to drive the internal logic boards.

Q : What are the continuous and peak output currents for each axis?

A: Both the L and M axes support a continuous output current of 19 A and a maximum peak current of 80 A.

Product Applications

Automotive Manufacturing: Powers robotic arms for welding, stamping, and painting lines.

CNC Machining: Controls multi-axis milling, grinding, and lathe machines requiring micron-level accuracy.

Electronics Assembly: Drives high-speed pick-and-place machines and PCB drilling equipment.

Packaging & Logistics: Manages synchronized dual-axis sorting, wrapping, and palletizing systems.

Metalworking & Aerospace: Operates heavy-duty components in aerospace component milling and metal forming presses.
