The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.

Frequently Asked Questions

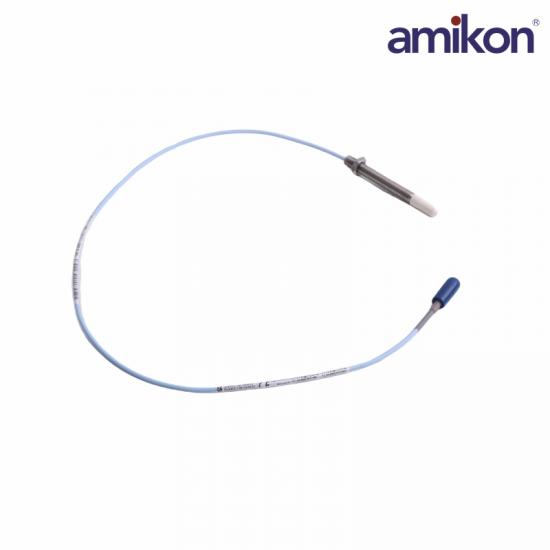

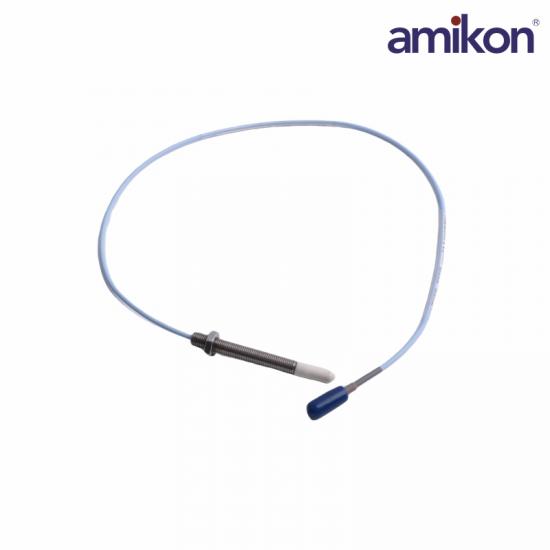

Q1: What is the Bently Nevada 330903-00-23-05-02-00 Proximity Probe used for?

A1: The 330903-00-23-05-02-00 is a non-contact proximity probe used for measuring shaft vibration, shaft position, displacement, and runout in rotating machinery monitoring and protection systems.

Q2: What is the overall case length of the 330903-00-23-05-02-00 probe?

A2: Overall Case Length Option -23 corresponds to 230 mm.

Q3: What is the total cable length of this 330903-00-23-05-02-00 probe?

A3: Total Cable Length Option -05 corresponds to 0.5 meter (20 inches).

Q4: What is the recommended gap setting for the 330903-00-23-05-02-00 probe?

A4: The recommended gap setting is 1.0 mm (40 mils), which helps ensure optimal measurement accuracy and system performance.

Q5: What power supply is required for operation?

A5: The 330903-00-23-05-02-00 probe system requires a power supply of -17.5 Vdc to -26 Vdc when used with the appropriate proximitor sensor.

Product Applications

Oil and Gas Plants & Refineries: Used for rotor dynamic monitoring of centrifugal air compressors, process gas compressors, and various large oil pumps in confined environments.

Large Chemical Plants & Pharmaceutical Plants: Due to its significantly higher chemical resistance compared to the older model (3300 RAM), it is widely used in special compressors and agitator units exposed to corrosive gases.

Air Separation and Industrial Refrigeration Stations: Used for precision monitoring in machines with narrow mounting holes, such as refrigeration compressors, refrigeration units, and expanders used in factories.

Precision Power Generation and Steel Plants: Used for axial runout monitoring of small and medium-sized steam turbines, water turbines, and miniature high-speed rotating shafts with a shaft diameter of less than 51 mm (2 inches).
