Emerson DeltaV S-series

KJ2005X1-SQ1 12P6383X052

Price and Availability Inquiry

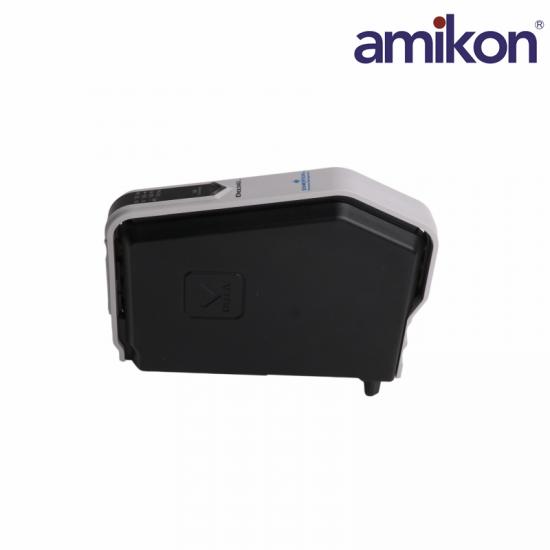

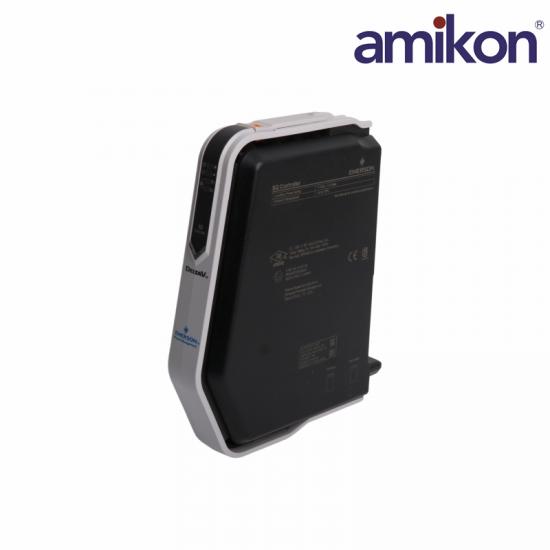

Emerson KJ2005X1-SQ1 12P6383X052 is a DeltaV SQ Controller for small-to-moderate applications, providing control-network communication, local and remote I/O integration, and optional 1:1 redundancy.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model KJ2005X1-SQ1 12P6383X052 and required quantity in your inquiry.

Emerson KJ2005X1-SQ1 12P6383X052

Technical Specifications

Official Emerson DeltaV SQ Controller capacity, execution, network, environmental and compatibility data with the submitted assembly reference.

01Product IdentityComplete submitted reference

ManufacturerEmerson

Controller ModelKJ2005X1-SQ1

Assembly Reference12P6383X052

Product DesignationDeltaV SQ Controller

02Capacity DataOfficial controller limits

System FamilyDeltaV S-series

DST Limit750

SCADA Tags3200

User Memory48 MB

03Execution & NetworkPublished hardware data

Module Execution Rates100 ms to 60 s

Internal Fuse3.0 A; non-replaceable

Power Dissipation5.0 W typical; 7.0 W maximum

Control NetworkPrimary and secondary 8-pin RJ45

04Environment & CompatibilityInstallation requirements

Operating Temperature−40 to +70 °C

Relative Humidity5 to 95%; non-condensing

Protection RatingIP20

Minimum DeltaV Releasev11.3.1 or later

EMERSON KJ2005X1-SQ1 12P6383X052 Product Support

Frequently Asked Questions

Application sizing, execution performance, control-network design, redundancy, commissioning, migration and exact-ordering guidance for the DeltaV SQ Controller.

How should an SQ Controller application be sized?

Check the configured control strategies against the published limits of 750 DSTs, 3200 SCADA tags and 48 MB user memory, then review execution loading in DeltaV Diagnostics.

Which execution rates can be assigned to control modules?

Supported rates are 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s and 60 s. Select the rate from the process-response requirement instead of assigning the fastest rate universally.

How are the primary and secondary control networks connected?

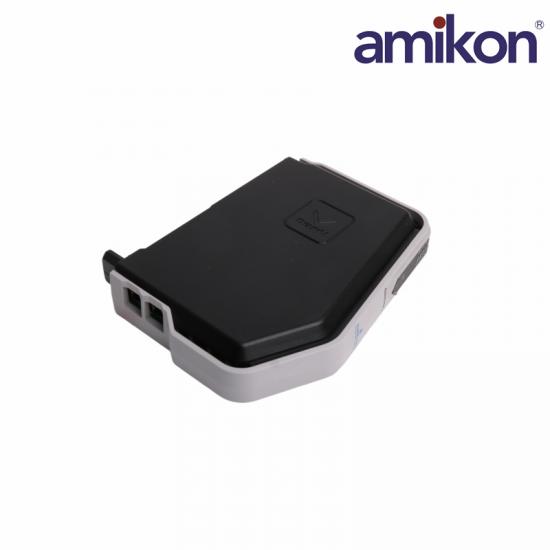

Each control-network path uses an 8-pin RJ45 connector. Maintain the engineered primary and secondary topology and verify the corresponding network-status indicators after connection.

What is required for a redundant controller configuration?

Use a matched second SQ Controller and system power arrangement in the supported 1:1 design, then verify Active and Standby status and both controllers’ control-network communication.

Which indicators help during startup troubleshooting?

Check Power, Error, Active, Standby, Primary Control Network and Secondary Control Network indications to separate power, controller-role and network faults.

What should be checked before migrating an existing DeltaV application?

Confirm DeltaV v11.3.1 or later, controller capacity, module execution load, I/O and electronic-marshalling compatibility, network addressing, redundancy design and a current configuration backup.

How should this controller be specified on an order?

State controller model KJ2005X1-SQ1 and assembly reference 12P6383X052, DeltaV release, redundancy requirement, controller quantity, installed power and network arrangement, and nameplate details.
