Emerson DeltaV M-Series

KJ3224X1-BA2 13P0137X022

Price and Availability Inquiry

The Emerson KJ3224X1-BA2 13P0137X022 is a 3300 XL 8 mm proximity probe with M10 × 1 mounting, an unarmored probe lead, a 1.5 m (4.9 ft) total probe length and miniature coaxial clickloc.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model KJ3224X1-BA2 13P0137X022 and required quantity in your inquiry.

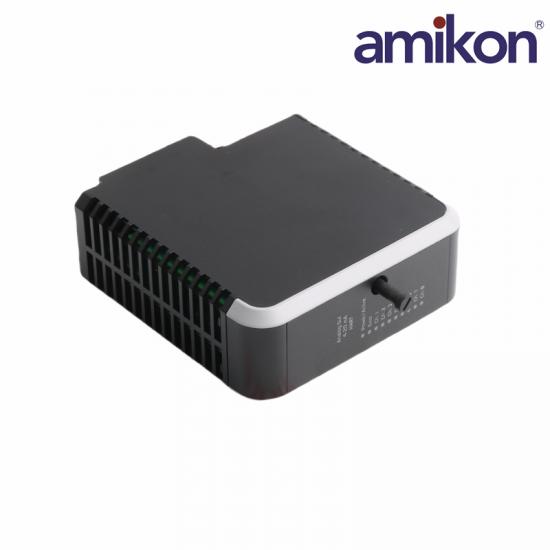

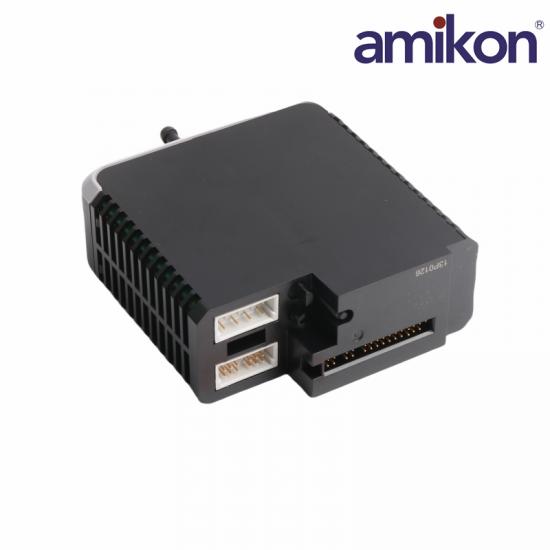

Emerson KJ3224X1-BA2 13P0137X022

Technical Specifications

Verified identification, configuration, interface and application data for KJ3224X1-BA2 13P0137X022.

01Product IdentitySource-verified technical data

ManufacturerEmerson

ModelKJ3224X1-BA2

Assembly Number13P0137X022

Product FamilyDeltaV M-Series

02Input ConfigurationSource-verified technical data

Input Channels8

Primary Input TypeThermocouple / mV

Millivolt Range−100 to +100 mV

Hardware SeriesSeries 2

03Supported MeasurementsSource-verified technical data

Voltage Input Range−10 to +10 V

Resistance Input Range0–1000 Ω

Repeatability0.05% of span

A/D Resolution16-bit

04Power & System DataSource-verified technical data

Supply Voltage12 V DC

Current Consumption210 mA

System PlatformDeltaV

Calculated Power DrawApprox. 2.52 W (12 V DC × 210 mA)

Emerson KJ3224X1-BA2 13P0137X022 Product Support

Frequently Asked Questions

Practical compatibility, application, installation, commissioning, performance, migration and ordering guidance for KJ3224X1-BA2 13P0137X022.

Which DeltaV system accepts KJ3224X1-BA2 13P0137X022?

This is an eight-channel Series 2 thermocouple/mV input module for the DeltaV M-Series platform. Verify the carrier, controller generation and installed DeltaV project before replacement.

What sensor signals can the eight channels measure?

The primary application is direct thermocouple and millivolt measurement. The verified ranges include −100 to +100 mV, with additional voltage and resistance measurement capability documented for the module family.

How should thermocouple channels be configured during commissioning?

Configure each channel for the installed thermocouple type and engineering range, then compare the indicated temperature with a calibrated source. Also verify polarity and terminal assignment for every channel.

What power load must the carrier support?

The module is documented for 12 V DC and approximately 210 mA. Confirm that the carrier and system power budget can support the installed module set.

Can the short model code alone be used to select a spare?

No. KJ3224X1-BA2 identifies the module family, while 13P0137X022 identifies the specific assembly. Both codes and the Series 2 hardware designation should be matched.

What project checks are required before replacing this input module?

Back up the DeltaV configuration, record channel assignments and alarm limits, and verify that the replacement hardware revision is supported by the installed system software.

Which information should appear on a purchase order?

Use the full designation KJ3224X1-BA2 13P0137X022 and include Series 2, eight-channel thermocouple/mV input, required quantity and the installed carrier information.
