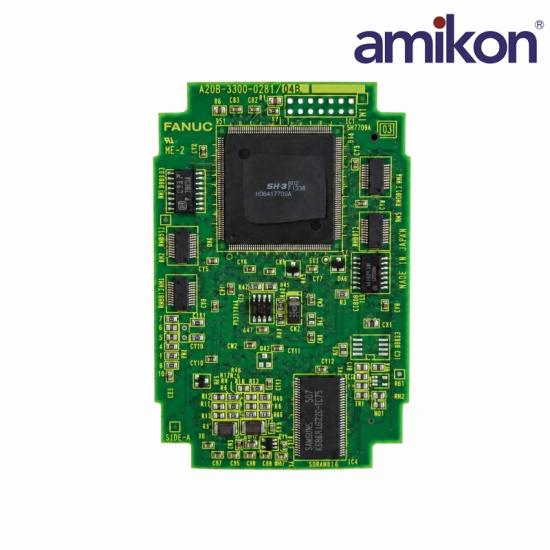

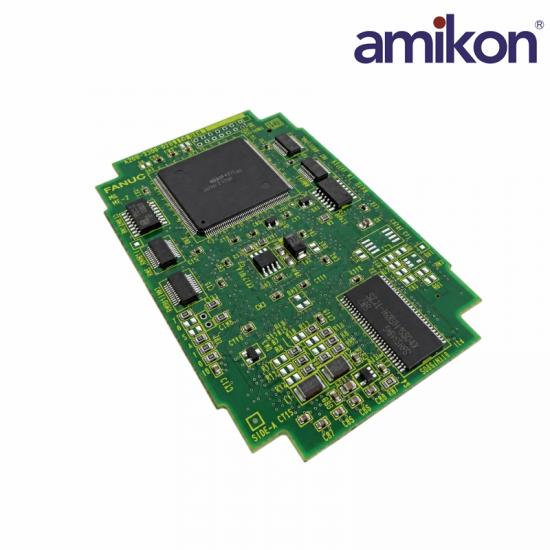

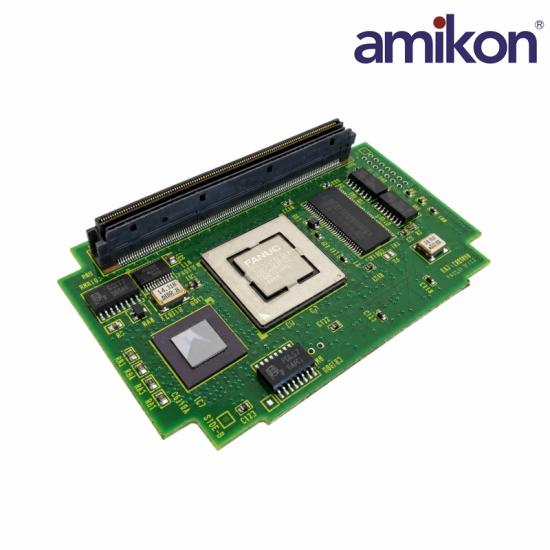

FANUC A20B-3300-0281/04B 8.4-Inch Color LCD Display Control Card

A20B-3300-0281/04B
A20B-3300-0281/04B
A20B-3300-0281/04B

FANUC A20B-3300-0281/04B 8.4-Inch Color LCD Display Control Card

✉  INQUIRE NOW

FANUC · FANUC i-Series CNC

A20B-3300-0281/04B

8.4-inch color LCD display control card

MANUFACTURERFANUC
MODELA20B-3300-0281/04B
PART NUMBERA20B-3300-0281/04B
PRODUCT TYPE8.4-inch color LCD display control card
SYSTEM FAMILYFANUC i-Series CNC
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    A20B-3300-0281/04B
  • Product Origin:

    Japan
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    FANUC
  • Product Origin:

    Japan
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

FANUC FANUC i-Series CNC

A20B-3300-0281/04B

Price and Availability Inquiry

The FANUC A20B-3300-0281/04B is an 8.4-inch color LCD graphic display control card with embedded Ethernet for FANUC i-Series CNC hardware.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LLLisa LinSales Specialist
WhatsApp+86 18965423501
Request a Quote on WhatsAppSend Email Inquiry
For faster service, please include the model A20B-3300-0281/04B and required quantity in your inquiry.

FANUC A20B-3300-0281/04B

Technical Specifications

Official FANUC hardware values for A20B-3300-0281/04B.

01Product IdentityOfficial FANUC board identification
ManufacturerFANUC
Complete Part NumberA20B-3300-0281/04B
Base Board CodeA20B-3300-0281
Part Suffix/04B
02Display ParametersOfficial 8.4-inch LCD parameter values
LCD Diagonal8.4 in
VGA Select Parameter3119.7
Color Data Parameters6561–6595
RGB Component Range0–15
03Interface CodesFANUC connector designations
Serial Port AJD36A
Serial Port BJD36B
Video InterfaceCN8
PCMCIA InterfaceCNM1A
04Hardware CodesFANUC board and connector identifiers
Drawing ID08
Inverter PCBA20B-8001-0922
DC InputCP1 / 24 V DC
Ethernet ConnectorCD38A

FANUC A20B-3300-0281/04B Product Support

Frequently Asked Questions

Display size, drawing identification, Ethernet function, inverter matching and replacement guidance for A20B-3300-0281/04B.

01

Which FANUC hardware manual documents this drawing number?

The Series 16i / 18i / 21i Model B maintenance handbook lists A20B-3300-0281 as an LCD-mounted i Series display control card.

02

How should the replacement board be identified before removal?

Match the complete part number A20B-3300-0281/04B, including base drawing A20B-3300-0281 and suffix /04B.

03

Which LCD and inverter combination is documented?

The board is specified for an 8.4-inch color LCD and is documented with inverter PCB A20B-8001-0922.

04

Does the board include graphics and embedded Ethernet?

Yes. The FANUC manual lists the graphic function and embedded Ethernet, with drawing ID 08.

05

Which Ethernet software reference appears in the hardware data?

The documented embedded Ethernet control software belongs to Series 656A.

06

Why must the full suffix be checked instead of using only the base drawing?

The drawing number identifies the board family, while /04B identifies the supplied variant; both must match the machine bill of materials.

07

How should the display path be checked after replacement?

Power up according to the FANUC procedure, confirm the 8.4-inch color display and graphics, then verify the embedded Ethernet link in CNC diagnostics.
