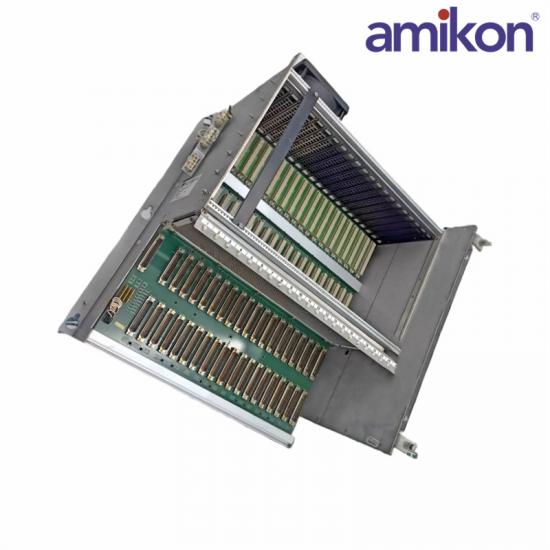

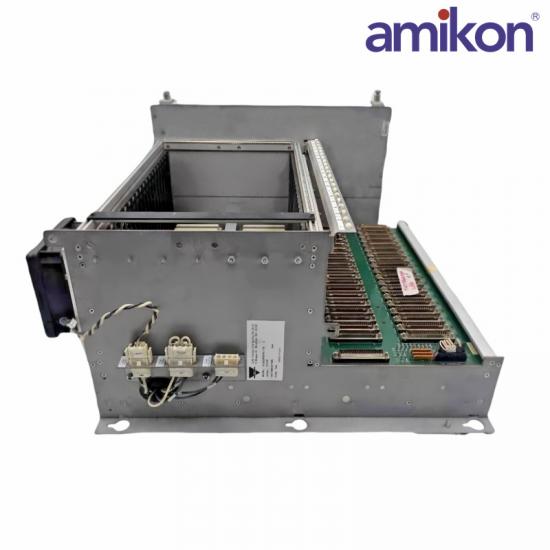

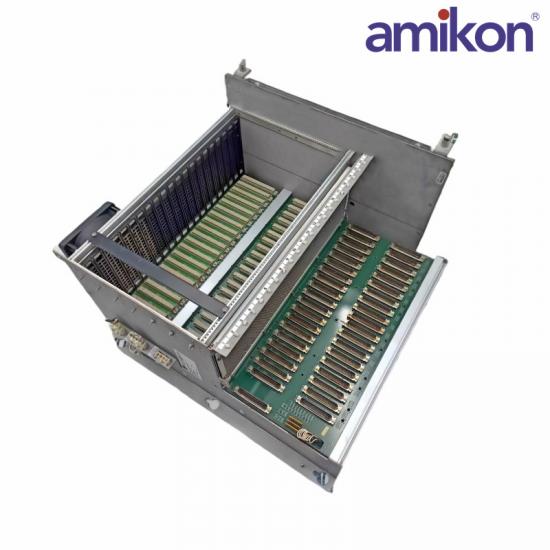

The GE 259B2460BTG2 Backplane Board is a critical component in industrial control systems, designed for seamless integration and enhanced system performance.

The 259B2460BTG2 Backplane acts as the backbone of the GE Mark VIe control architecture, enabling various I/O modules, controllers, and power supplies to connect to each other in a coordinated manner. It ensures that signals, power, and data are transmitted efficiently across the system, supporting real-time control and monitoring in industrial applications.

Brand:GE

Model:259B2460BTG2

Type:Backplane Board

Series:Mark VII

Function:Data transmission and processing

Dimensions:L x W x H: 200mm x 100mm x 50mm

Weight:0.7kg

Connection Ports:8 high-speed serial ports

Operating Temperature:-40°C to +85°C

Storage Temperature:-40°C to +85°C

Power Supply:12V DC

Maximum Current Draw:1A

The GE 259B2460BTG2 Backplane Assembly Board is engineered to meet the stringent demands of industrial environments, ensuring reliability and efficiency in complex control systems. Its high-grade aluminum alloy construction with a corrosion-resistant coating ensures durability and longevity, even under harsh conditions.

Featuring a compact design that accommodates up to 24 connectors, this 259B2460BTG2 board optimizes space utilization and simplifies system architecture, making it an ideal choice for modern industrial setups. The robust compatibility with GE’s Mark VI and subsequent models ensures seamless integration and upgrade paths.

With an operating temperature range from -40°C to +70°C, this 259B2460BTG2 backplane board is designed to withstand extreme environmental conditions without compromising performance.
