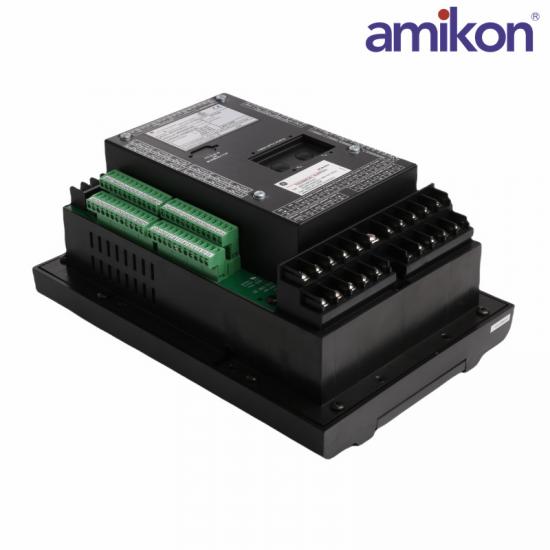

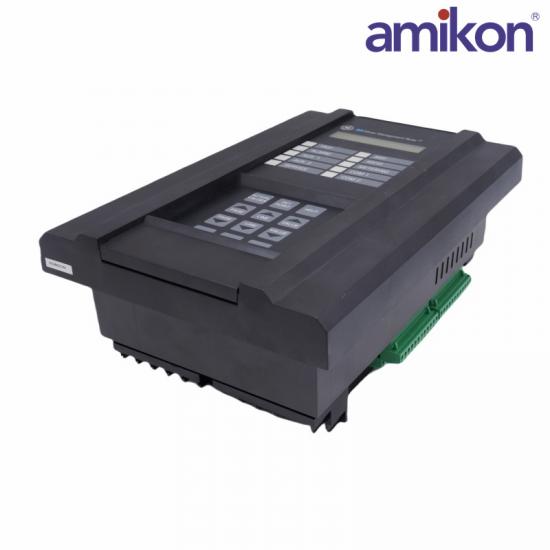

The GE 369-HI-R-M-0-0-0 Motor Management Relay is designed to optimize motor performance and efficiency by leveraging waveform capture, event reporting, data logging, and advanced metering capabilities. Ideal for industrial applications requiring reliable motor protection and maintenance cost reduction.

Control Power Nominal:20 VA

Control Power Maximum:65 VA

Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz

Dimensions:approx. 12 in H x 5 in W x 8 in L

Ground Current Input Frequency:20 to 100 Hz

Insulation Class:Class I

Phase Current Input Conversion:True RMS, 1.04 ms/sample

Weight:approx. 4.5 kg

The GE 369-HI-R-M-0-0-0 Motor Management Relay is designed to optimize the performance and reliability of medium-sized motors. Featuring waveform capture technology, this 369-HI-R-M-0-0-0 relay captures detailed information about the motor’s operational status, which can be analyzed to identify potential issues before they lead to costly downtime.

This model includes optional metering capabilities, allowing for precise measurement of electrical parameters such as voltage, current, and power factor. Additionally, the inclusion of twelve RTD (Resistance Temperature Detector) inputs provides accurate temperature monitoring of critical motor components, further enhancing overall system safety and efficiency.

The compact design of the GE 369-HI-R-M-0-0-0 ensures easy integration into existing industrial control systems without requiring extensive space modifications. Its robust construction and insulation class I rating make it suitable for harsh industrial environments, ensuring reliable operation under varying conditions.
