Brand/Manufature:
GEProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooManufacturer:General Electric
Model Number:DS200TCDAH1BHE
Series:Mark V
Type:Digital Input/Output Board
Dimensions :28x21.3x2cm
Weight:0.36kg
Operating Temperature Range:-20°C to +60°C
Power Consumption:Up to 15 W
Communication Interface:Serial, Ethernet
Memory Capacity:8 KB RAM, 32 KB EEPROM

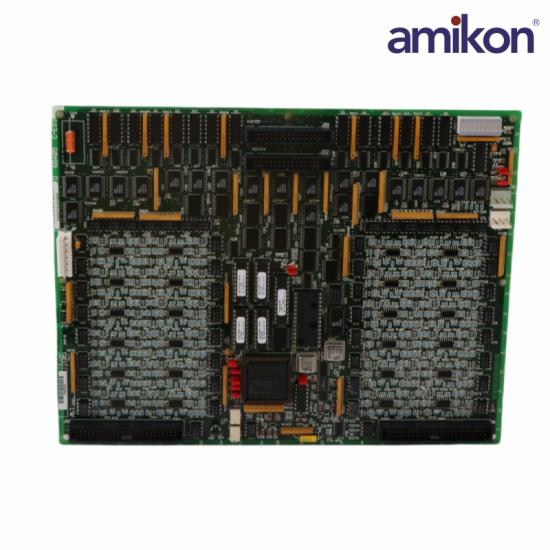

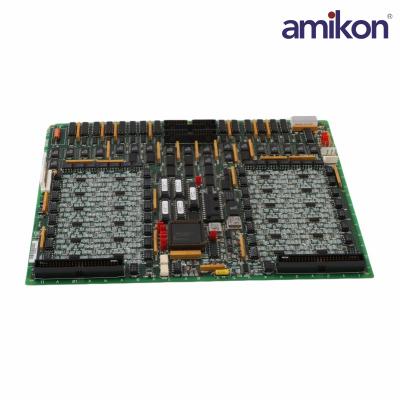

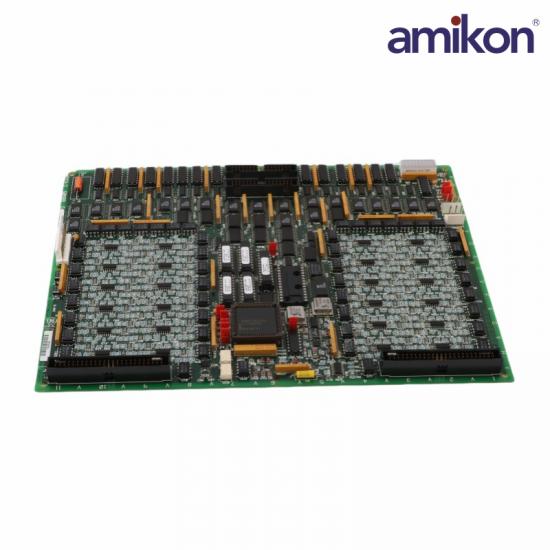

The GE Digital I/O Board, model DS200TCDAH1BHE, is equipped with several components to facilitate its functionality within its greater Mark V Turbine Control System Series and Mark V Series automated drive assembly. It features 8 jumpers, an LED on the side of the board, and 2 3-pin connectors. The TCDA unit includes 1 block of 10 LEDs and 2 50-pin connectors. The DS200TCDAH1BHE also provides test points that enable qualified servicemen to conduct circuit testing. Additionally, the DS200TCDAH1BHE is located in the digital I/O cores <Q11>, <Q51>, and <Q21> if present. It is responsible for processing digital contact input signals from the DTBA and DTBB terminal boards, as well as contact output signals (relay/solenoid) from the two TCRA boards. These signals are transmitted via the IONET to the TCQC board in <R1> and <R2> if <Q21> is installed, and the CTBA terminal board in <R5>.
The DS200TCDAH1BHE functional product number is an additional viable source of original DS200TCDAH1BHE product-specific informations, beginning with the DS200 series tag embedded at the very beginning. The DS200 series tag at the start of the DS200TCDAH1BHE functional product number has dual naming functionality for this PCB, detailing its as a domestically-manufactured General Electric product with a normal Mark V Series assembly. The DS200 series tag is followed in the DS200TCDAH1BHE functional product number by the TCDA functional acronym, which itself is followed by the H1 series grouping tag detailing this DS200TCDAH1BHE product's unique conformal style of PCB coating and its group one Mark V Series grouping.
