Description：

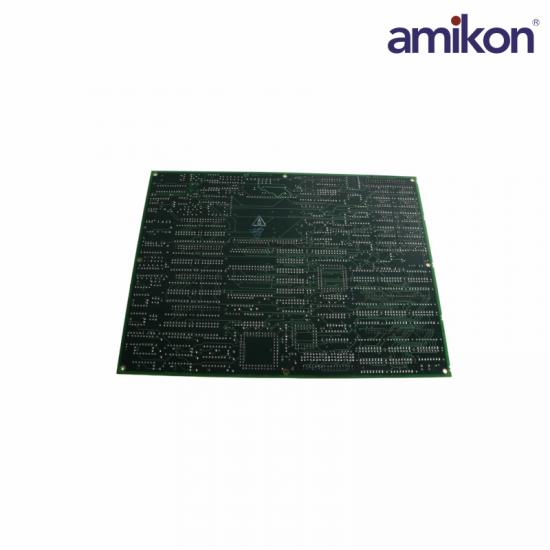

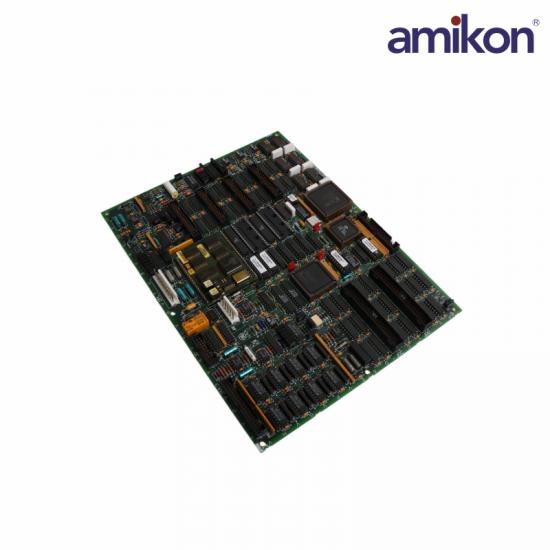

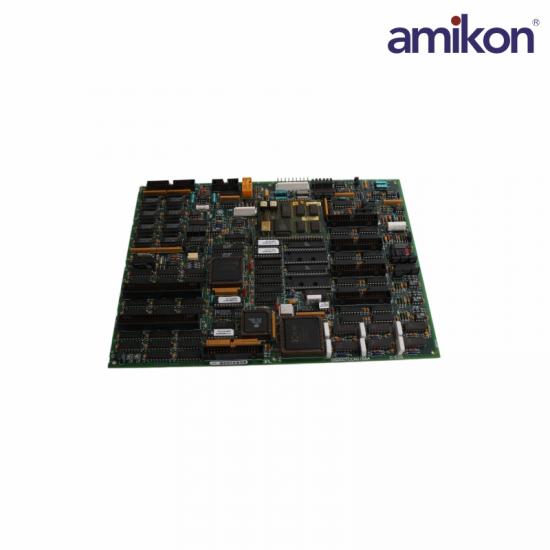

DS215TCCAG1BZZ01A DS200TCCAG1BAA is a TC2000 Common Analog O Board manufactured and designed by General Eectric as part of the Mark V Series used in GE Spedtronic GasTurbine Control Systems. The Common Analog I/O Board (ICCA) located in the core, scales and condifions analog signals from the CTBA, TBQA, and TBCA terminalboards mounted in the core These signals incude 4-20 mA inputs and outputs,RTD inputs, thermocouple inputs, shaft voltage inputs, and shat curent inputs. Thesignals are written to the STCA board via the 3PL connector.
Specification：
|
Part Number |
DS215TCCAG1BZZ01A DS200TCCAG1BAA |
|
Manufacturer |
General Electric |
|
Operating Voltage |
+5 Vdc ±5% |
|
Power Consumption |
Approx. 12 W |
|
Temperature Range |
-20°C to +70°C (-4°F to +158°F) |
|
Dimensions |
6.5 in × 4.5 in × 1 in |
|
Weight |
1.2 lbs (0.54 kg) |
|
Input Signal Range |
0 to 10 |
|
Output Signal Range |
4 to 20 mA |
|
Signal Resolution |
12 bits |
|
Input Impedance |
＞1 MΩ |
Frequently asked questions
Q1: What is the GE DS215TCCAG1BZZ01A DS200TCCAG1BAA used for?
A1: It is used for analog signal acquisition and output control in GE industrial and drive systems.
Q2: What is the DS215TCCAG1BZZ01A DS200TCCAG1BAA input signal range of the board?
A2: The DS215TCCAG1BZZ01A DS200TCCAG1BAA input signal range is 0 to 10 V.
Q3: What is the DS215TCCAG1BZZ01A DS200TCCAG1BAA output signal range?
A3: The DS215TCCAG1BZZ01A DS200TCCAG1BAA output signal range is 4 to 20 mA.
Q4: What is the signal resolution of the DS215TCCAG1BZZ01A DS200TCCAG1BAA board?
A4: The DS215TCCAG1BZZ01A DS200TCCAG1BAA signal resolution is 12 bits.
Q5: What is the input impedance of the DS215TCCAG1BZZ01A DS200TCCAG1BAA board?
A5: The DS215TCCAG1BZZ01A DS200TCCAG1BAA input impedance is greater than 1 MΩ.
Product Applications
Power Industry: Used in power plants and power transmission and distribution systems to monitor and control the operating status of generators, steam turbines, and boilers, ensuring the safety and stability of the power grid.
Oil and Gas Industry: Used in oil and gas exploration, production, and pipeline transportation to monitor process variables in real time to improve production efficiency and safety.
Chemical and Petrochemical Industry: Used in petroleum refining and chemical production processes to achieve precise measurement and control of key parameters such as temperature and pressure, ensuring process safety.
