Description：

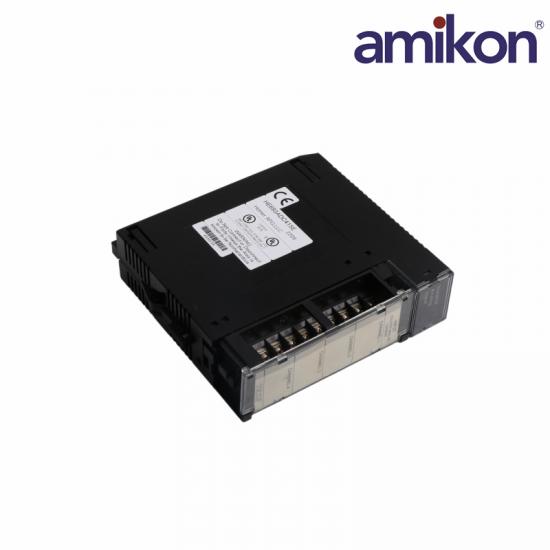

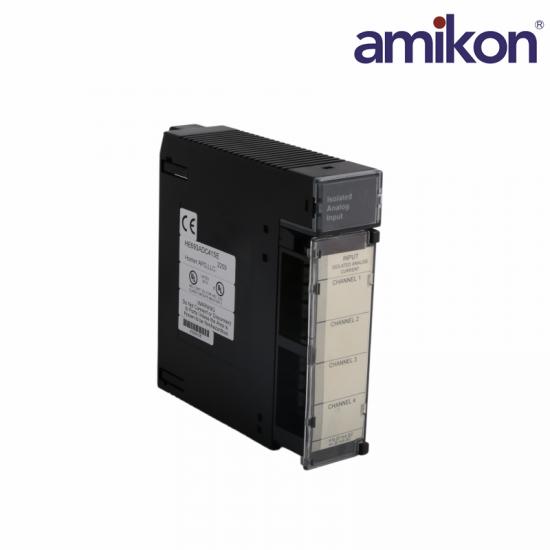

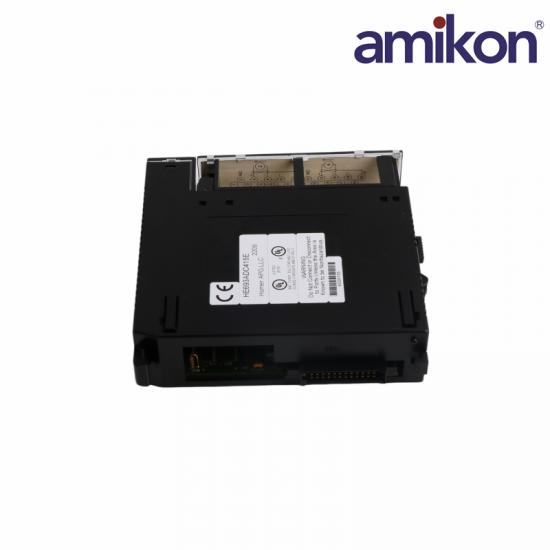

GE HE693ADC415 module is tailored for analog input applications, featuring four individual channels for input signals. This model can handle input ranges from 4 to 20 mA and also supports +/- 20 mA. At steady state operations, the power consumption is .4W at 5V and 2.16W at 24V, with surge current requirements peaking at 120 mA for 5V and 150 mA at 24V during startup.

The integrating type A/D converter offers a resolution of 18 bits, while the effective resolution comes to 13 bits plus sign, enabling precise signal analysis and control. This module sports an input impedance of 100 ohms, contributing to its compatibility with various sensors. The update rate for the module stands at 45 channels per second, allowing for timely data acquisition and processing.

Specification：

Frequently asked questions

Q1: What is the GE HE693ADC415 Analog Input Module?

A: The GE HE693ADC415 is an analog input module used in industrial systems to acquire and process analog current signals from field devices such as transmitters, sensors, and process instruments.

Q2: What input ranges does the HE693ADC415 support?

A: The HE693ADC415 module supports 4 to 20 mA and ±20 mA input ranges, making it suitable for a wide variety of industrial process measurement applications.

Q3: What is the resolution of the HE693ADC415?

A: The HE693ADC415 module features 18-bit resolution, providing high-accuracy signal conversion and detailed measurement data for process monitoring and control.

Q4: What is the input impedance of the HE693ADC415 module?

A: The HE693ADC415 has an input impedance of 100 Ω, ensuring compatibility with standard industrial current-loop devices.

Product Applications

Power and Energy Management: Used in the main or auxiliary control systems of thermal and hydroelectric power plants to monitor current signals from generators, transformers, and distribution networks to prevent electrical faults.

Petroleum, Petrochemical, and Chemical Industries: Acquires 4-20mA analog signals from pressure transmitters, level gauges, and flow meters in long-distance pipelines and chemical protection zones with high explosion-proof requirements. Its 500VAC inter-channel isolation effectively prevents ground loop interference and safety accidents.

Metallurgy and Heavy Industry: Monitors process parameters such as temperature, pressure, and tensile force in steel plants, blast furnaces, and metal processing production lines under high transient noise environments.

Water Treatment and Environmental Engineering: Monitors pump flow, pipeline pressure, pH value, and chemical dosing rates in real time within the centralized control systems (DCS) of wastewater treatment plants and waterworks.
