Manufacturer: GE Fanuc

Part Number: IC670GBI102D

Weight: 1.88 lbs (0.85 kg)

Series: Field I/O Control

Compatibility: Field Control IC670GB / IC670GBI

Nominal Rated Voltage: 115 Volts AC, 125 Volts DC

Supply Voltage Range: 90–135 VAC, 105–150 VDC

Voltage Range: 90–135 VAC / 105–150 VDC

Nominal Supply Voltage: 115 VAC, 125 VDC

Transmission Speed: 53.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, 38.4 Kbaud

Frequency: 47–63 Hz

Terminating Resistors: 75 Ω, 100 Ω, 120 Ω, 150 Ω

Power at 115 Volts AC: 48 VA (maximum) at full load

Power at 125 Volts AC: 24 W (maximum) at full load

Power Supply Output: 6.5 VDC ±5%

Inrush Current: 15–50 A peak, 3 ms maximum

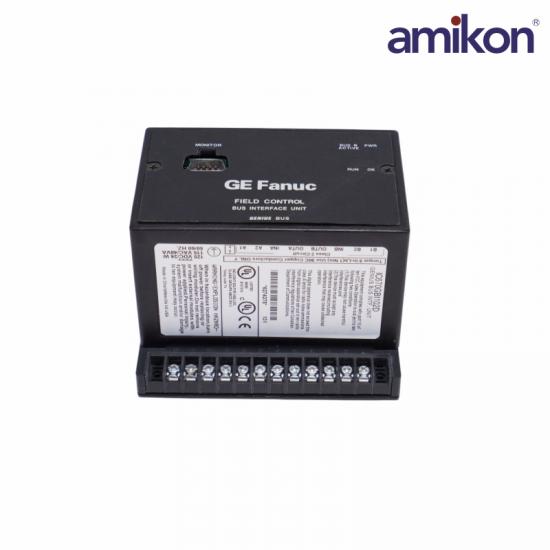

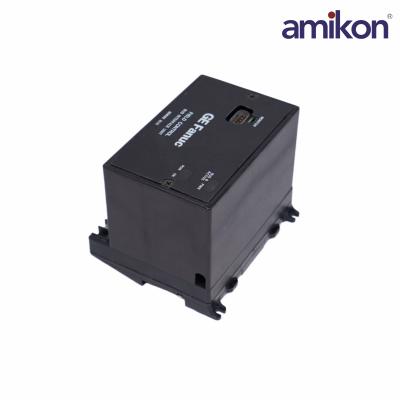

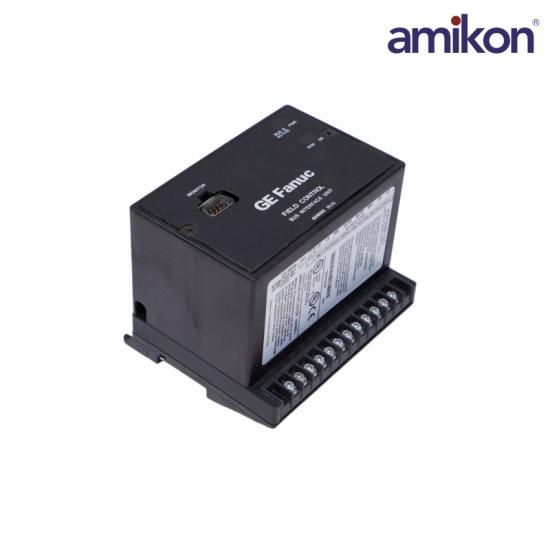

The IC670GBI102D isa communication module from the Field Control series of GE Fanuc. This module specifically supports Genius Bus protocol, allowing users to implement distributed I/O architecture. This IC670GBI102D module is coupled with a Genius Bus Interface Unit terminal block to enable mounting DIN rail or Panel mounting. This terminal block module also hosts the screw terminals where main genius bus connection and optional redundancy network connectivity can be established. The IC670GBI102D supports daisy-chain topology architecture on both the primary and secondary bus. The supported data transmission speed of this module are 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud with available memory allocations for a variety of data types such as 256 Bytes for discrete inputs (%I), status data and intelligent modules; 256 Bytes for discrete outputs (%Q) and fault clearing for intelligent modules; 256 bytes for analog inputs (%AI) and 256 bytes for analog outputs (%AQ).

Frequently asked questions：

1.What is the GE IC670GBI102D?

The GE IC670GBI102D is an Interface Module manufactured by GE Fanuc for industrial control systems.

2.What is the operating frequency of the IC670GBI102D?

The frequency range is 47–63 Hz.

3.What is the power supply output of the IC670GBI102D?

The module provides 6.5 VDC ±5% output.

4.What is the nominal rated voltage of the IC670GBI102D?

The nominal rated voltage is 115 V AC or 125 V DC.

5.What is the supply voltage range of the IC670GBI102D?

The supply voltage range is 90–135 V AC or 105–150 V DC.
