GE VersaMax IP

IC676PBI016-EA

Price and Availability Inquiry

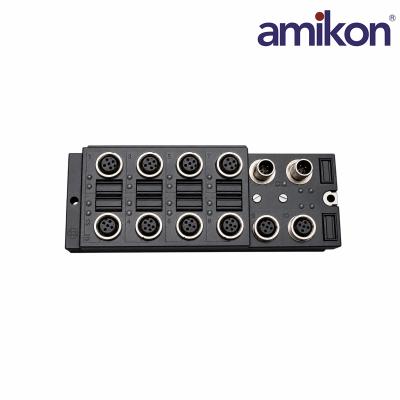

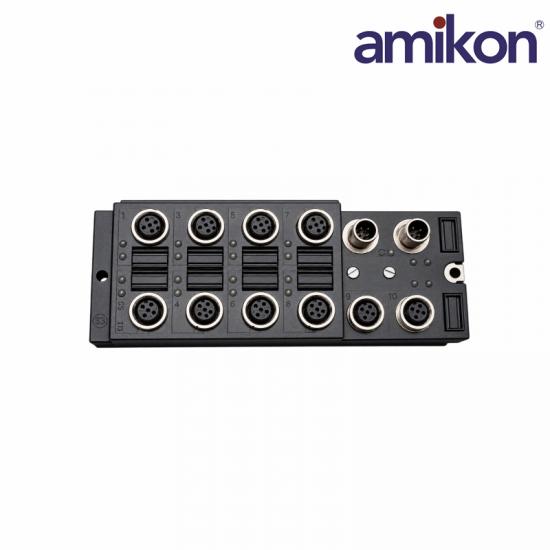

The GE IC676PBI016-EA is a 16-Point PROFIBUS Input Module designed for VersaMax IP applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model IC676PBI016-EA and required quantity in your inquiry.

GE IC676PBI016-EA

Technical Specifications

Official GE GFK-2293 electrical, I/O, PROFIBUS, mechanical and environmental data for IC676PBI016-EA.

01Product IdentityVerified product identity

MANUFACTURERGE

ORDER NUMBERIC676PBI016-EA

PRODUCT TYPE16-Point PROFIBUS Input Module

SYSTEM FAMILYVersaMax IP

02Digital Input DataGE product manual GFK-2293

INPUT POINTS16 digital inputs

NOMINAL INPUT24 V DC; 3 mA

SWITCHING THRESHOLDSLow <5 V; high >11 V

PERMISSIBLE INPUT RANGE−30 V < UIN < +30 V DC

03Response & Sensor DataGFK-2293

ON DELAY<1 ms typical

OFF DELAY2 ms typical

SENSOR CURRENT75 mA per channel; 1.2 A per module

SENSOR CABLE LENGTH100 m maximum

04PROFIBUS & Program DataGFK-2293

PROFIBUS RATE12 Mbaud maximum; autobaud

STATION ADDRESS1 to 99

INPUT ADDRESS AREA16 bits

PROFIBUS ID NUMBER06FB hex

GE IC676PBI016-EA Product Support

Frequently Asked Questions

Compatibility, wiring, power, PROFIBUS, installation, diagnostics and ordering guidance for IC676PBI016-EA

How should IC676PBI016-EA be matched to the GE product manual?

Use the complete IC676PBI016-EA ordering reference for procurement and match the installed label. The published electrical and mechanical ratings are documented for base module IC676PBI016 in GE manual GFK-2293.

Which field signals and wiring methods does this module support?

The module accepts 16 digital input signals at nominal 24 V DC and 3 mA per input. It supports 2-, 3-, and 4-wire sensor connections through M12 connectors.

How should the UL and US supplies be sized?

UL is the communications supply and draws 35 mA typical, 100 mA maximum at 24 V DC. US supplies the input sensors and draws 8 mA typical plus sensor current, up to 1.2 A.

Which PROFIBUS settings are required during commissioning?

Set the station address from 1 to 99 with the two rotary switches before power-up. The module supports PROFIBUS-DP autobaud operation up to 12 Mbaud.

How can the front LEDs assist with startup diagnostics?

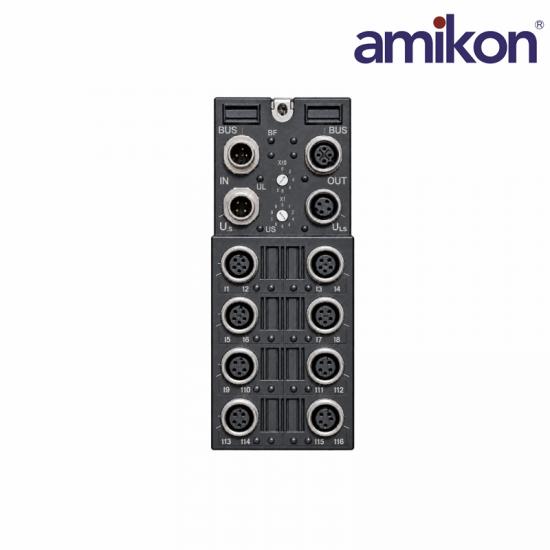

Use the BF LED for bus faults, UL for communications power, US for sensor-supply status and overload, and the yellow input LEDs to confirm active input points.

Which installation steps are needed to maintain IP67 protection?

Connect functional earth, use the specified M12 network, power and sensor connections, and fit protective caps to every unused socket before energizing the module.

Which information should accompany an order request?

Provide GE IC676PBI016-EA, quantity, installed PROFIBUS station details, supply voltage, connector arrangement and clear photographs of the product label and suffix.
