Manufacturer: GE

Product Line: Series 90-30

Part Number: IC693DSM314

Weight: 0.75 lbs (0.34 kg)

Operation Modes: Digital, Analog

Block Processing Time: Less than 5 ms

Number of Axes: 4

Programming Units Resolution (Position): −536,870,912 to 536,870,911 user units/second

Programming Units Resolution (Velocity): 1 to 8,388,607 user units/second

Programming Units Resolution (Acceleration): 1 to 1,073,741,823 user units/second

Non-Volatile Storage: 10 programs and 40 subroutines

Backplane Current Consumption: 450 mA at 5 V DC (typical)

Operating Temperature: 0 to 60 °C (32 to 140 °F)

Storage Temperature: −40 to 85 °C (−40 to 185 °F)

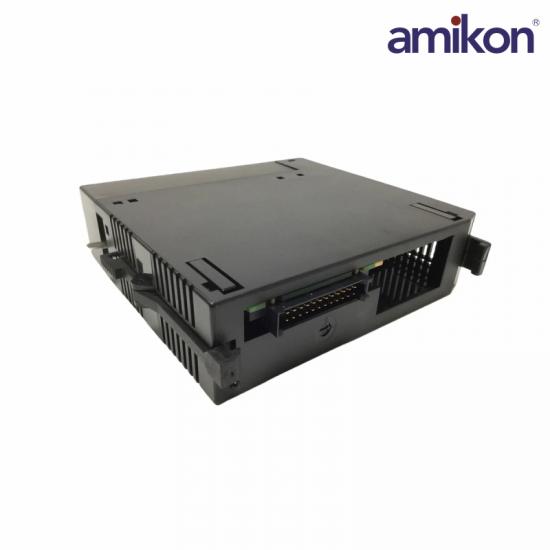

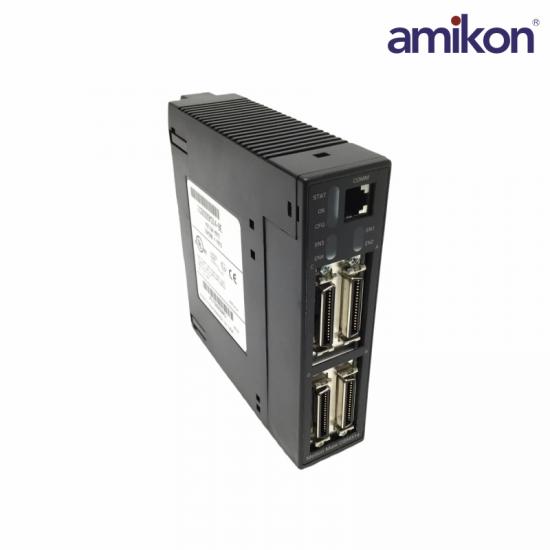

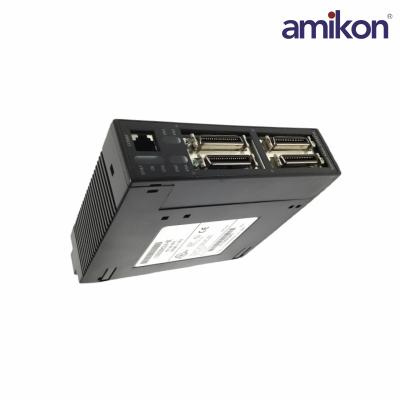

The IC693DSM314 motion controller is available through Series 90-30 by GE Fanuc. The controller has 4 available axes and it works in both analog and digital modes. This motion controller features a torque mode with a velocity loop of 0.5 milliseconds and it has an improved tracking accuracy due to functions like the velocity feed forward function and the position error integrator function. The IC693DSM314 motion controller also includes local , an electronic CAM, simple programming, backplane motion control, and the option of scaling of the programming units by the users. The module is intended for use with Plc and it provides support for the different software solutions offered for these components. The IC693DSM314 controller can be configured through either the VersaPro or CIMPLICITY ME software.
