Part Number: IC693PWR331

Series: 90-30 PLC

Brand: GE Fanuc

Product Type: High-capacity power supply

Description: Power Supply Device

Voltage: 24 Volts DC

Nominal Rated Voltage: 24VDC / 48VDC

Input Voltage Range, DC: Start: 21–56 VDC / Run: 18–56 VDC

Input Power: 90 VA (VAC input), 50 W (VDC input)

Output Voltage: 5 VDC

Output Power: 5 VDC and 24 VDC (for relay)

Full Load Power Rating: 50 Watts

Load Capacity: 30 Watts

Hold-up Time: 14 milliseconds (minimum)

Inrush Current: 4A peak, 100 ms maximum

Number of Outputs: 3

Number of Terminal Screws: 3

Protocol Support: RS485

LED Indicators: PWR, OK, RUN, BATT

Standard Compliance: UL, CE

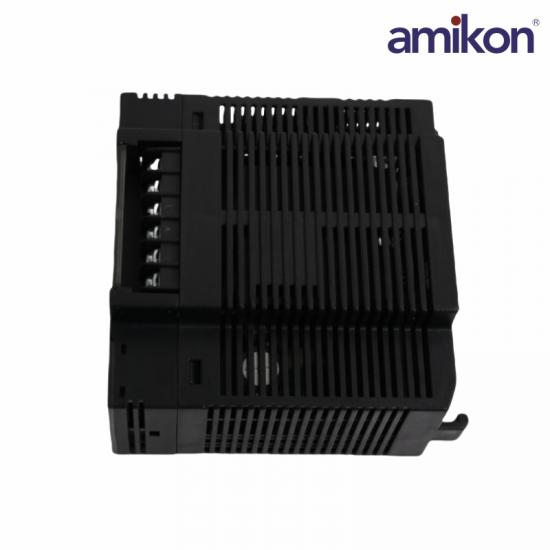

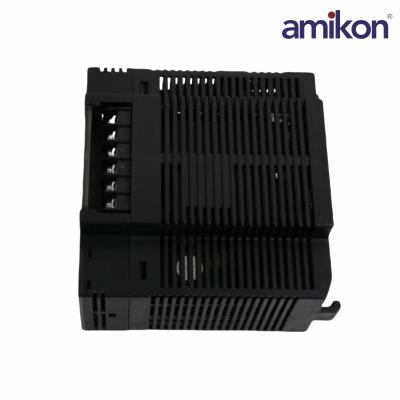

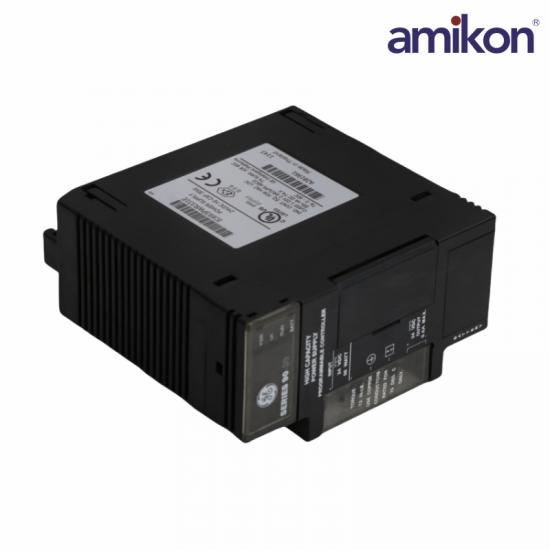

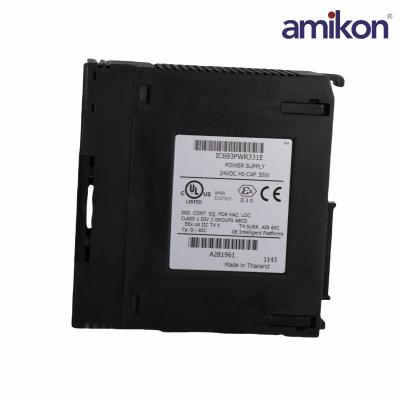

The IC693PWR331 is a GE Fanuc Series 90-30 Programmable Logic Controller (PLC) module. This unit is a High-capacity power supply that provides Three (3) output voltages for a variety of functions. This power supply delivers +5VDC output with maximum power of 30 Watts, +24VDC Relay output with maximum output power of 15 Watts and +24VDC isolated output with maximum output power of 20 Watts. Being a high-capacity power supply, the 30-Watt load capacity can be assigned to the +5VDC output terminal however, the total output power shall not exceed 30 Watts. The +24VDC Relay power output is used to power electronic circuitry on output relay modules while the +24VDC isolated output module is utilized internally by some of the modules and external power for 24VDC input modules.

The IC693PWR331 is provided with an RS485 communication terminal. This port allows connection to workstation installed with GE Proficy Software for configuration. Additionally, the same port permits connection of Hand-Held Programmer (HHP) and other devices that are RS485 communication standard enabled.
