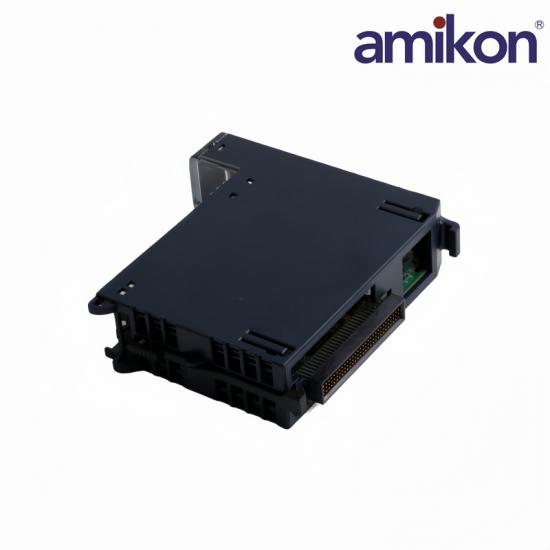

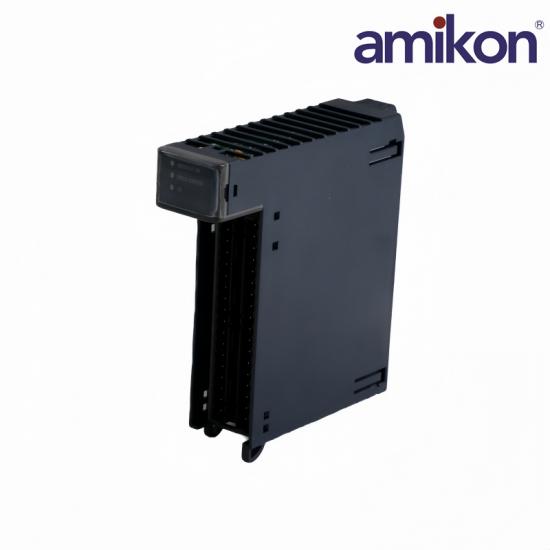

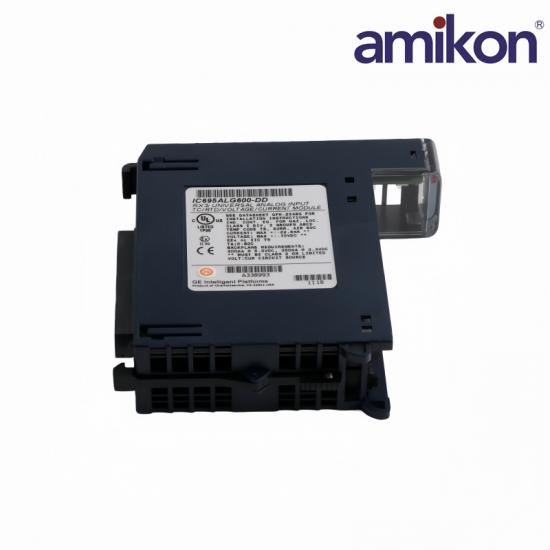

GE IC695ALG600 PACSystems RX3i Universal Analog Input Module

IC695ALG600
IC695ALG600
IC695ALG600

GE IC695ALG600 PACSystems RX3i Universal Analog Input Module

✉  INQUIRE NOW

GE · PACSystems RX3i

IC695ALG600

Universal analog input module

MANUFACTURERGE
MODELIC695ALG600
PART NUMBERIC695ALG600
PRODUCT TYPEUniversal analog input module
SYSTEM FAMILYPACSystems RX3i
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    IC695ALG600

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    GE

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

GE PACSystems RX3i

IC695ALG600

Price and Availability Inquiry

GE IC695ALG600 provides eight configurable universal analog input channels for voltage, current, resistance, RTD and thermocouple measurements in a PACSystems RX3i universal backplane.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model IC695ALG600 and required quantity in your inquiry.

GE IC695ALG600

Technical Specifications

Published channel, signal-range, resolution, filter, timing and backplane-power data for the IC695ALG600 universal analog input module.

01Product IdentityExact module selection
ManufacturerGE
ModelIC695ALG600
System familyPACSystems RX3i
Product classUniversal analog input module
02Input ConfigurationConfigurable signal ranges
General-purpose inputs8 channels
CJC inputs2 channels
Voltage ranges±10 V; 0–10 V; 0–5 V; 1–5 V; ±50 mV; ±150 mV
Current ranges±20 mA; 0–20 mA; 4–20 mA
03Sensors & ConversionSupported measurement data
Thermocouple typesB, C, E, J, K, N, R, S and T
RTD familiesPt385, Pt3916, Ni672, Ni618, NiFe518 and Cu426
Resistance ranges0–250, 500, 1000, 2000, 3000 or 4000 Ω
Input resolution11–16 bits, range and filter dependent
04Power & TimingBackplane and conversion data
Backplane power300 mA max at 5 V; 320 mA max at 3.3 V
Module dissipation5.4 W maximum
Input filters8, 12, 16, 40, 200 or 1000 Hz
Minimum acquisition10 ms at 1000 Hz

GE IC695ALG600 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for IC695ALG600.

01

Which signal types can IC695ALG600 measure?

Each of the eight general-purpose channels can be configured for supported voltage, current, resistance, RTD or thermocouple inputs.

02

How should channel ranges be configured?

Select the signal type and exact range for each channel in the RX3i hardware configuration, then match field wiring and scaling to that selection.

03

Which filter setting suits faster measurements?

The 1000 Hz filter provides the shortest listed acquisition time of 10 ms. Lower filter frequencies increase noise rejection and acquisition time.

04

Where can IC695ALG600 be installed?

Install the single-slot module in a PACSystems RX3i universal backplane and use the compatible high-density terminal block required by the module.

05

How are thermocouple cold-junction measurements handled?

Use the two dedicated CJC inputs with the supported terminal assembly and configure the required thermocouple type for each measurement channel.

06

How should RTD lead resistance be considered?

Use the supported RTD wiring method and keep cable impedance within the published limit; lead-resistance measurement adds acquisition time.

07

Which ordering details should be verified?

Confirm IC695ALG600, the module revision, RX3i CPU compatibility, terminal block, signal types, ranges, channel wiring and required filter settings.
