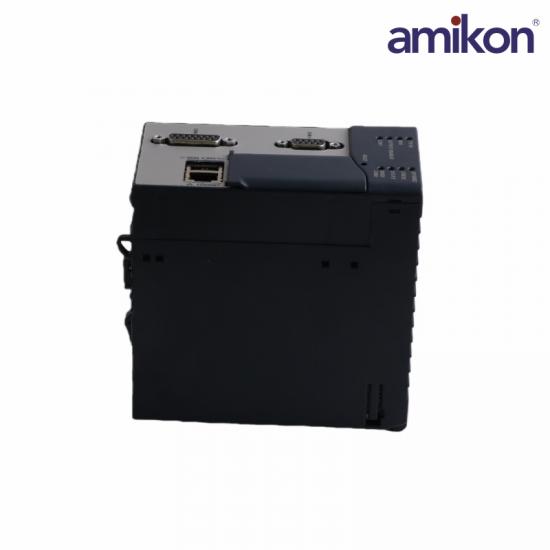

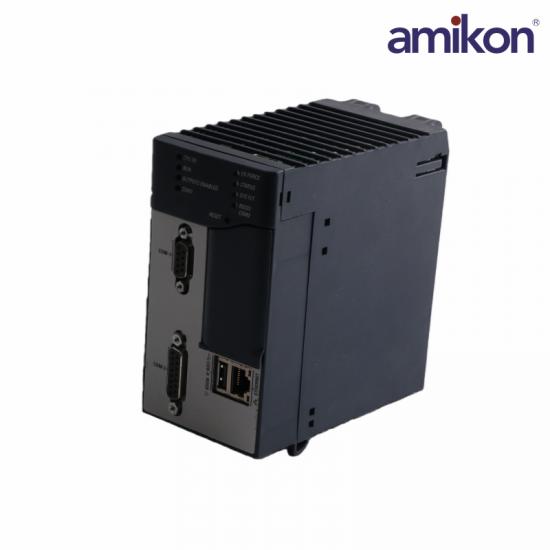

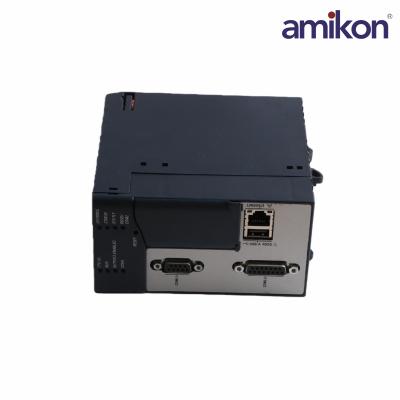

The IC695CPE310 is a Central Processing Unit (CPU) module from the PACsystem RX3i product category. Also termed as controller or processor, the CPU’s main function is to provide the logic execution, computation and communication capability to the system. Specific for the IC695CPE310, this CPU is built with a 1.1 GHz microprocessor speed with Boolean logic execution speed of 0.72 ms/k. It comes with multiple communication interface such as Two (2) serial ports composed of One (1) RS232 and One (1) RS485 port and One (1) Ethernet communication interface. The IC695CPE310 can accommodate up to 32 K bits of discrete Input and discrete output signals, referenced as %I and %Q in the program and 32 K Words of analog input and output capacity. Aside from this I/O memory capability, the IC695CPE310 is provided with a battery-backed memory amounting to 10 MB. The IC695CPE310 supports a variety of communication protocols. For the Ethernet port, supported protocol is SRTP at data transmission rate of 10/100 Mbaud with auto-negotiation capability. The serial interface on the other hand supports SNP, Serial I/O, Modbus Slave and Modbus Master protocols. Additional communication options available to this CPU are Serial, Genius, Reflective Memory using Control Memory Exchange (CMX) module and Ethernet while supported fieldbus of this controller are PROFINET, EGD, Modbus TCP Server and Client, Genius, Profibus DP and Ethernet. This CPU is downloaded with a user program and configuration that is engineered using the Proficy Machine Edition Logic Developer Machine Edition 7.0 SIM 3 or later software package.
