Brand: GE Fanuc / Emerson

Series: RX3i PacSystem

Part Number: IC695CPE330-AFAT

Product Type: CPU module

Processor Clock Speed: 1.0 GHz

RAM: 64 MB

NVRAM: 64 MB

I/O Points: Up to 32 K I/O

Ethernet Ports: Three (3); Single port LAN 1; Dual Port LAN 2 with embedded switch

Controller Redundancy: Supported

Maximum Program Blocks: 512

Maximum Block Size: 128 kilobytes

Operating Temperature: 0 to 60 degrees Celsius

Energy Pack: IC695ACC402

Product Description: RX3i CPU

Number of Slots: 2

Number of Local Racks: 8

I/O Points: 32K, discrete and analog

Program Storage: 64 Mbytes of User Memory

Type of Memory Storage: ICFast, Compactflash

Processor Speed: 1.6 GHz Dual Core

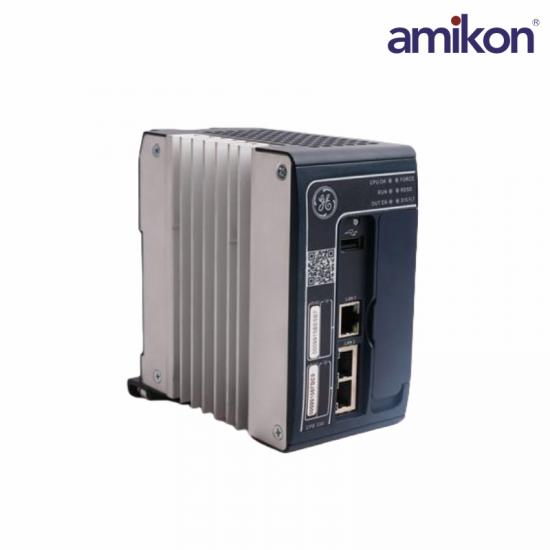

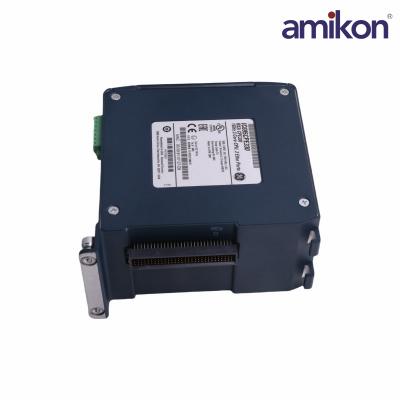

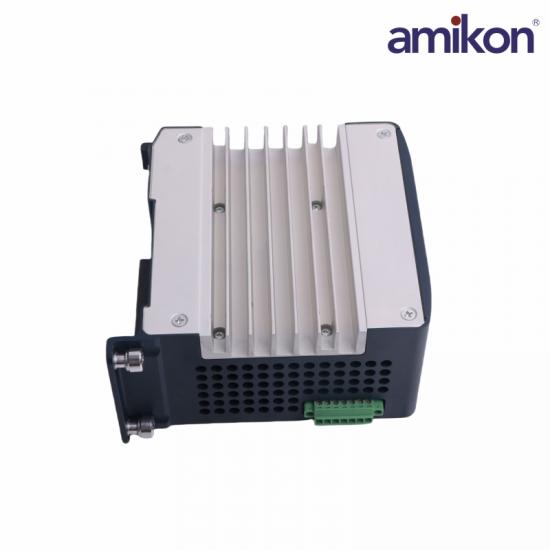

The GE Fanuc / Emerson IC695CPE330-AFAT is a PACSystem RX3i controller. This controller has 64MB RAM and 64MB non-volatile user memory, processor speed of 1 GHz. This controller has Two (2) independent 10/100/1000 Gbps Ethernet ports and One (1) USB master port with embedded switch provided by LAN 2 connections. This controller supports hot-standby configuration with PROFINET controllers, Ethernet (EGD) & Genius IO.

The IC695CPE330-AFAT is a GE Fanuc / Emerson controller that is part of the PACSystem RX3i platform. This product is a controller module that is categorized as Programmable Controller (PAC) that has a variety of enhancement and significant features that fits today’s application requirement and emerging technologies. This includes modern redundant fatures which may be implemented via PROFINET controllers, Ethernet (EGD) & Genius IO as well as a large amount of user memory amounting to 64 MB and 64 MB non-volatile memory. This controller is also fitted with modern microprocessor with 1GHz processing speed. This controller also supports gigabit as it may be connected in Ethernet network with transmission speed of 10 / 100 Mbps and 1Gbps communication rate.

The embedded Ethernet communication ports allow implementation of controller and media redundany for high-availability of I/O modules. These ethernet ports have dedicated microprocessor core, permitting the IC695CPE330-AFAT controller to implement up to 48 simultaneous SRTP Server connections, 16 simultaneous Modbus®/TCP Server connections with 32 clients are permitted for each connection which can be SRTP or Modbux/SRTP.

Additionally, the USB 2.0 Master port permits uploading and downloading of program using a generic thumb drive and smart phones. This feature is a convenient option for maintaining the operation of the RX3i control system.

The IC695CPE330-AFAT supports programming languages such Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), or C Language. It also supports communicating with 3rd party devices via OPC UA, which is an industry known standard that can be implemented over Ethernet IP connection.
