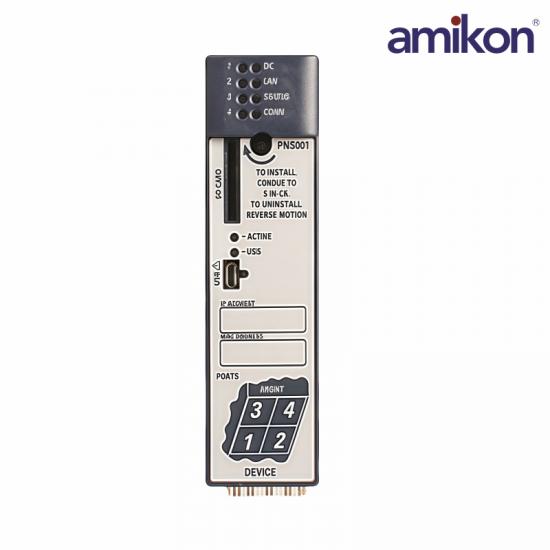

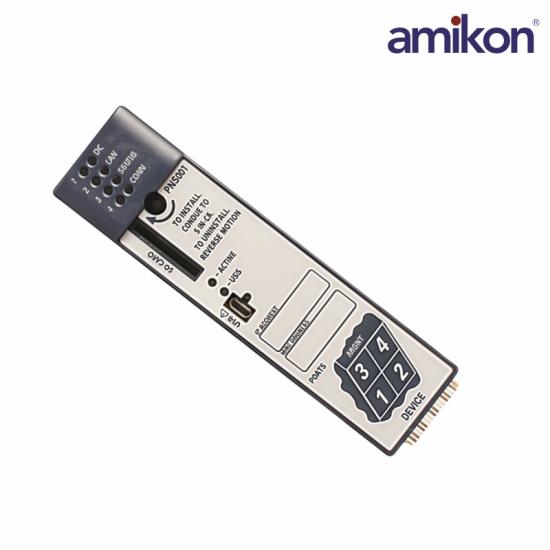

GE IC695PNS001 Profinet scanner module

Brand: GE

Series: RX3i PacSystem

Part Number: IC695PNS001

Product Line: RX3i

Product Type: PROFINET Scanner Module

Number of Slots: 1 (single slot)

Backplane Support: Universal

Protocol Support: PROFINET

USB Ports: 1 Micro USB

Internal Power at 5 V DC: 1.1 A

Internal Power at 3.3 V DC: 1.2 A

Operating Temperature: 0 to 60 degrees Celsius

Storage Temperature: -40 to 85 degrees Celsius

Ethernet Ports: Four (4) Switched Ethernet ports

Supported Topologies: Linear, Star, Daisy chain, Redundant Media

The IC695PNS001 is a Profinet scanner module that is manufactured by GE Fanuc / Emerson . This module is a single slot wide module, that is used to manage Profinet connections such as communicating to remote I/O devices residing in universal I/O backplanes, whether Series 90-30 or RX3i modules; Sending I/O data through the Profinet network to the partner CPUs in the network; Communicate with Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and other similar  components.

The IC695PNS001 features One (1) micro USB port that is mainly used in performing firmware upgrades. It is also equipped with Four (4) Ethernet communication ports that primarily support Profinet protocol. Each of the ports supports modern communication speeds such as 10/100/1000 Mbps communication speed and supports a variety of topologies such a Liner, Daisy-chain, Star, Ring or redundant Ethernet media topology. Additionally, Two (2) of the IC695PNS001’s ethernet port are Two (2) Small Form Factor (SFP) pluggable cages that may be installed with SFP modules for converting network to Fiber Optic media. The IC695PNS001 is designed with simplified configuration method. I/O device name, IP address and other parameters may be saved in an SD card and transferred to other Profinet Scanner module by inserting the same SD card. This method eliminates dependency with software configuration tool and significantly decreases maintenance time.
