Brand: GE Fanuc

Series: PACSystem RX3i

Manufacturer: GE Fanuc

Part Number: IC695PSD140B

Product Description: Power Supply Module

Type: Power supply module

Input Voltage Range: 85 to 264 VAC, 100 to 300 VDC

Power Supply: 40 Watts

Nominal Rated Voltage: 120/240 VAC or 125 VDC

Input Voltage Range: 18 to 30 VDC

Input Power: 60 Watts maximum at full load

Outputs: 3

Ripple: 150 mV

Output Current: 5.1 VDC

Noise: 150 mV

Isolation: None

Number of Daisy-Chained PSD140: Up to 4

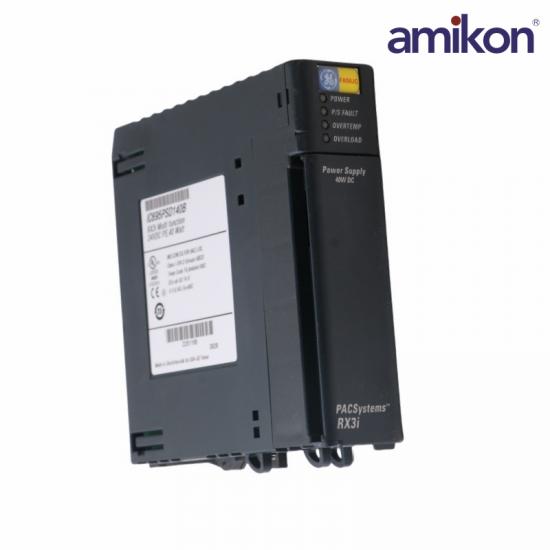

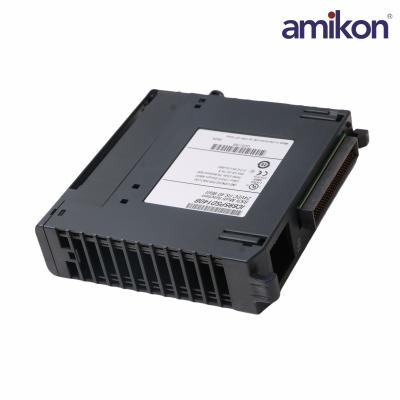

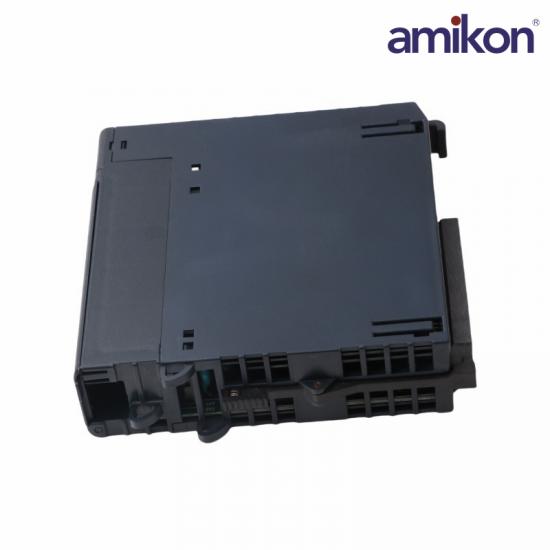

The IC695PSD140B module is a multipurpose power supply module that comes in the RX3i PACSystems series of I/O devices. This part has been designed and manufactured by GE Fanuc. This module can operate both in load-sharing and redundancy applications, hence its multipurpose tag. It comes with 3 different outputs that consist of a 5.1 Volts DC output, a 24 Volts DC relay output, and a 3.3. Volts DC output intended for internal use. These 3 outputs can be used with RX3i modules. The GE Fanuc IC695PSD140B multipurpose power supply module can be installed in an RX3i universal backplane and it only occupies one slot. It can be used as the only power supply in a system or it can be combined with additional multipurpose power supplies. It can be combined with up to 3 other modules. The GE Fanuc IC695PSD140B multipurpose power supply module comes with several LED indicators. The power LED can be green or amber, the P/S fault and overload LED is red, and the over-temperature and overload LED is an amber indicator. Each LED indicates the current operating status of the module. The module has a nominal rated voltage of 24 Volts DC, an input voltage range of 18 to 30 Volts DC, and an output power rating of 40 Watts maximum, including its 3 outputs. The module does not provide isolation. It is important to note that the GE Fanuc IC695PSD140B multipurpose power supply cannot be used under any circumstances with the IC695PSD140B or the IC695PSD140B power supply modules in a redundant mode or in an increased capacity mode. These modules are incompatible in these modes and damage to both types of equipment may occur if the users attempt to use them in these modes.
