English
Brand/Manufature:
GEProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

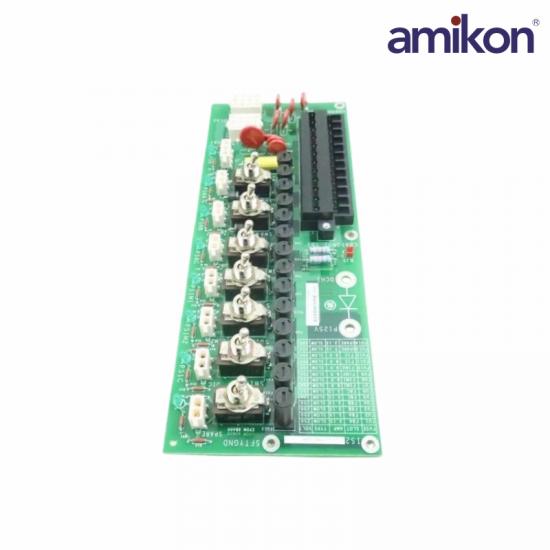

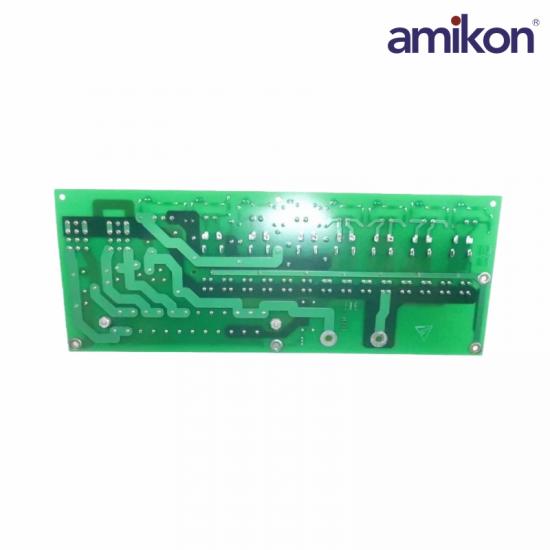

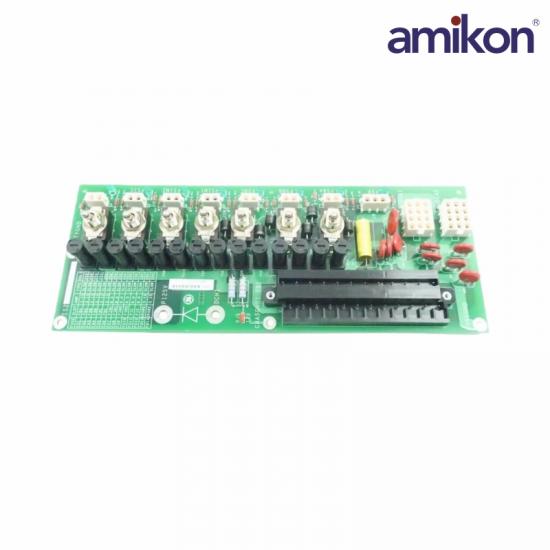

CooPart Number: IS200EPDMG1A
Manufacturer: General Electric
Board Description:Power Distribution Module
Board Type:Power Supply Board
DC Source Supply:P125V and N125V
Nominal Voltages to the Ground:+62.5 V and -62.5 V
Power Supply from Station Battery:125 VDC
Number of relay channels: 12
Power supply voltage: 28 V dc
Technology: Surface mount
Operating temperature: -35 to +65°C
The Exciter Power Distribution Module IS200EPDMG1A is used to distribute power for the input/output terminal, protection, and control boards within the EX2100 series. Typically the module is mounted on the side of the EPBP module.
The power supply that comes through the IS200EPDMG1A must be filtered, and the VAC of 115 on the EPDM needs to filter to a VDC. To do so the IS200EPDMG1A module will be used in conjunction with a DACA module which will take the 115 VAC and filter it to 125 VDC. When the VAC has been converted to a VDC, the two or potentially three VDC will be conjoined to create the DC source supply that will be labeled as P125V and N125V. When the center has been grounded a nominal voltage of -62.5 V and +62.5 V will be apparent.
