Brand/Manufature:
GEProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

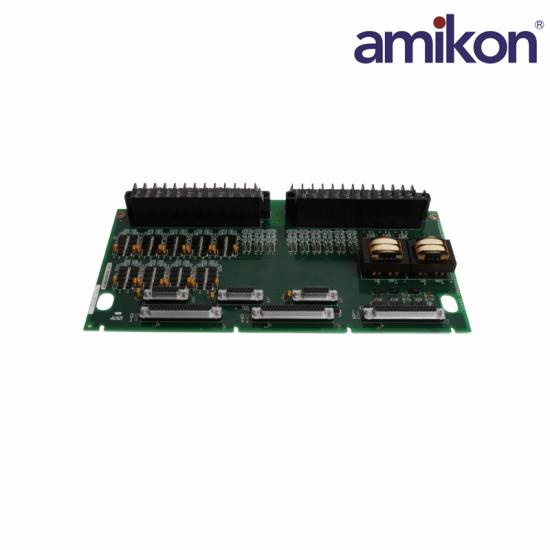

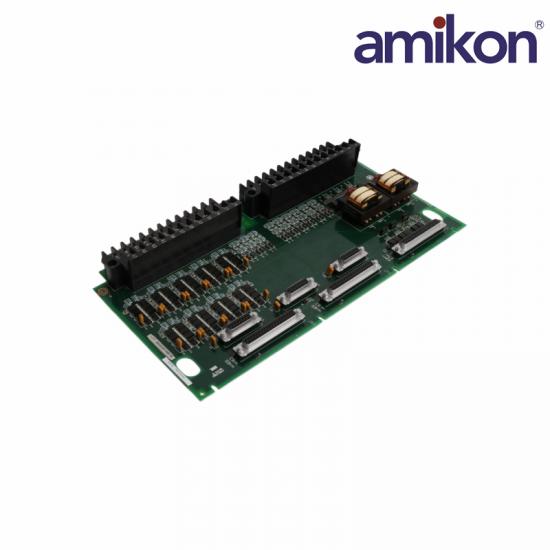

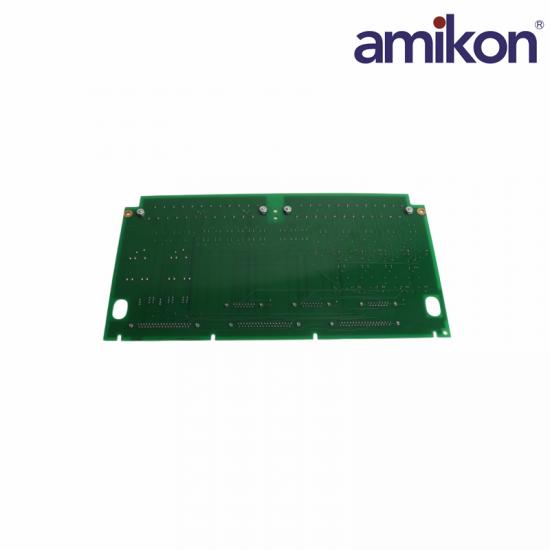

IS200TPIMG1A is a Protective Intertace Terminal Board manulactured and designed by General Electric as part of the Mark V Series used in GE Speedtonic Gas Turtbine Conto Systems. This board primarily manages trip signals and critical protection inputs such as Emergeny Stop (E-Stop) commands and relay fedback Is designensures electical isolation betwcen contcol logic and field devices, enhancing system safety and signal integrity The board supports aplication srequiring high reliabilisy such as gas and steam turbines, by enabling precise routing and monitoring of protection signals.
Specification：
|
Part Number |
IS200TPIMG1A |
|
Manufacturer |
General Electric |
|
Series |
Mark VI |
|
Board Type |
Protective Interface Terminal Board |
|
Quantity of Terminal Blocks |
3 sets |
|
Signal Type |
Discrete (Digital) |
|
Rated Input Voltage |
24 VDC |
|
Terminals Per Block |
20 terminals |
|
Total Channels |
16 channels |
|
Fuse Specification |
8 pcs, 125 V |
|
Mounting Method |
DIN rail mounting |
|
Operating Temperature Range |
-20°C ~ +60°C |
Frequently asked questions
Q1: What is a IS200TPIMG1A Protective Interface Terminal Board?
A1:A Protective Interface Terminal Board is a critical component in turbine conto systems, used to interface protective relay circuits with control hardware Itensures safe is olation and signal conditioning between field devices and the control system.
Q2: How many terminal blocks does the IS200TPIMG1A have?
A2:The IS200TPIMG1A terminal board is equipped with 3 terminal blocks, allowing organized and secure wiring connections for field devices.
Q3: What input voltage does the IS200TPIMG1A require?
A3:The IS200TPIMG1A board operates with an input voltage of 24 VDC, making it compatible with standard industrial control power supplies.
Q4: How IS200TPIMG1A many terminals are available on each terminal block?
A4:Each terminal block provides 20 terminals, offering ample connection points for field wiring and signal distribution.
Product Applications
Thermal/Gas-fired Power Plants: Used in the control systems of large gas turbines and steam turbines, responsible for monitoring and protecting against emergency trips under harsh operating conditions such as overspeed and overheating.
Oil and Gas Chemical Plants: Deployed in large power drive turbines within large natural gas compressor units and oil pumping stations, ensuring explosion-proof and safety interlocking.
Heavy Industrial Auxiliary Power Plants: Such as the power workshops within large steel mills and aluminum plants, used to maintain the safe and stable operation of generator units.
