Description：

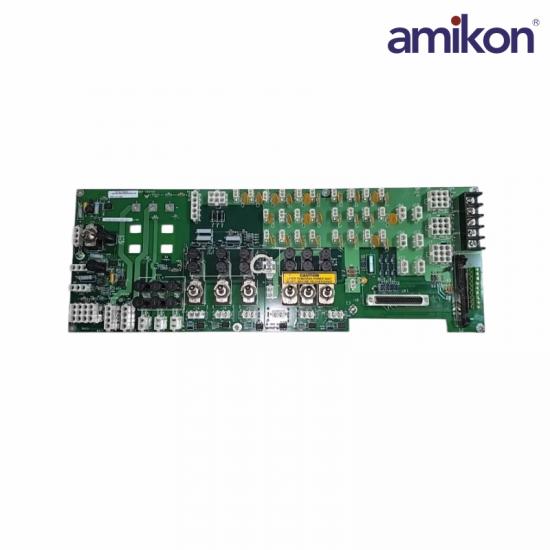

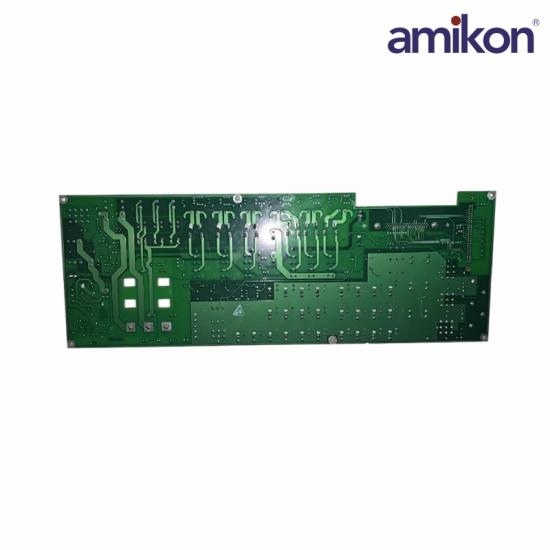

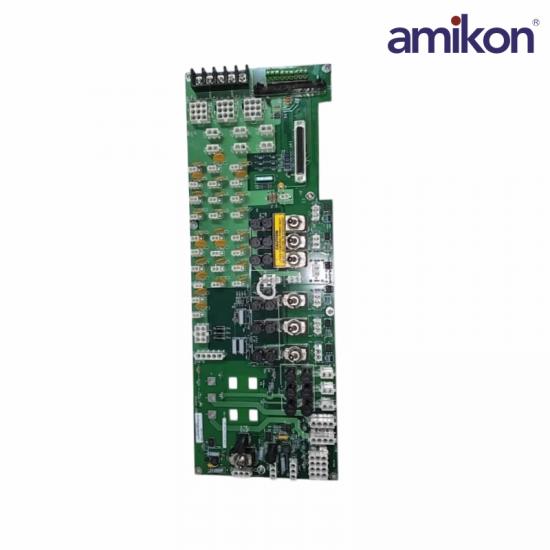

The GE IS2020JPDCG01 is a high-reliability, heavy-duty Core DC Power Distribution Board (PDM) engineered by General Electric for its premier Mark VIe (MKVIe) Speedtronic Control System platform. Serving as the central electrical backbone within the system’s Power Distribution Module (PDM) cabinet, this card is specifically designed to route, regulate, and protect vital DC and AC electrical currents across utility-scale gas and steam turbine control networks.

Operating within complex Distributed Control Systems (DCS), the IS2020JPDCG01 accepts raw 125 V DC battery backup power or rectified AC power and cleanly splits it into multiple redundant control branches. It safely supplies power to vital components, including UCCx controllers, specialized terminal boards, localized I/O networks, and downstream branching modules.

Specification：

Frequently asked questions

Q1: What is the GE IS2020JPDCG01 used for?

A: The IS2020JPDCG01 is a turbine controller and power distribution module used in GE Mark VI turbine control systems. It distributes and manages DC power for control boards and other critical system components within gas and steam turbine applications.

Q2: What is the rated input voltage of the IS2020JPDCG01?

A: The IS2020JPDCG01 module has a rated input voltage of 125 V DC, making it suitable for standard turbine control power distribution systems.

Q3: What input voltage range does the IS2020JPDCG01 support?

A: The IS2020JPDCG01 controller accepts an input voltage range of 100 V DC to 145 V DC, allowing stable operation even when the DC supply varies within the specified limits.

Q4: What is the maximum total bus current of the IS2020JPDCG01?

A: The IS2020JPDCG01 module supports a maximum total bus current of 50 A, providing sufficient power capacity for multiple connected control modules.

Product Applications

Power and Energy: Serving as a fundamental power supply component for control systems of heavy-duty gas turbines, steam turbines, and large generator sets (such as the GE Speedtronic series), ensuring the stable operation of critical infrastructure.

Oil and Gas: Providing highly reliable underlying power for core networks in refineries and pipeline control systems with high explosion-proof requirements and harsh environments.

Heavy Manufacturing: Supporting power distribution and system integration for automated production lines, heavy machinery, and process equipment.

Smart Factory and Process Control: Integrating with other Mark VIe system components (such as the GE IS2020JPDBG01 AC Module) to Industrial Internet of Things (IIoT) edge nodes.
